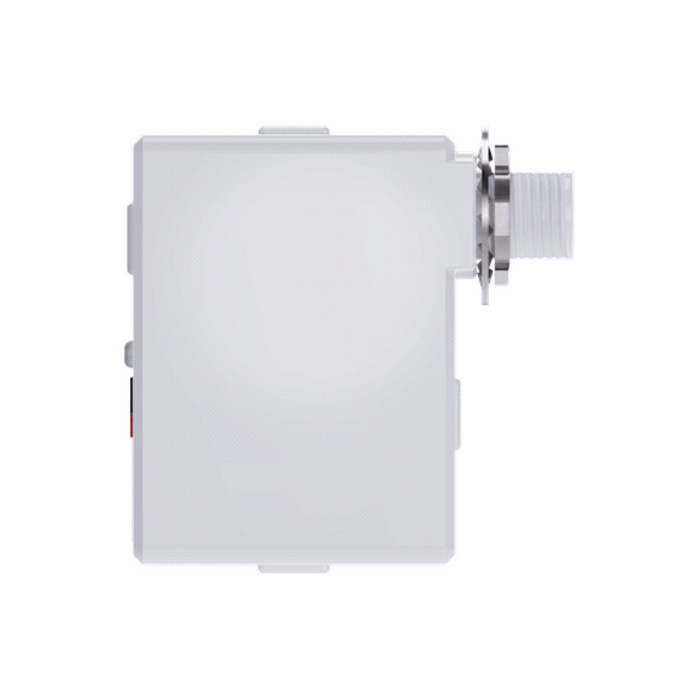

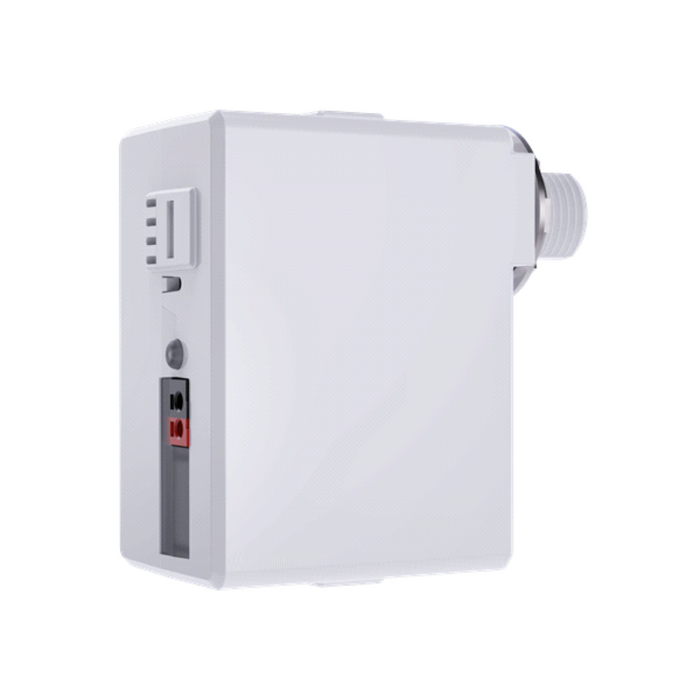

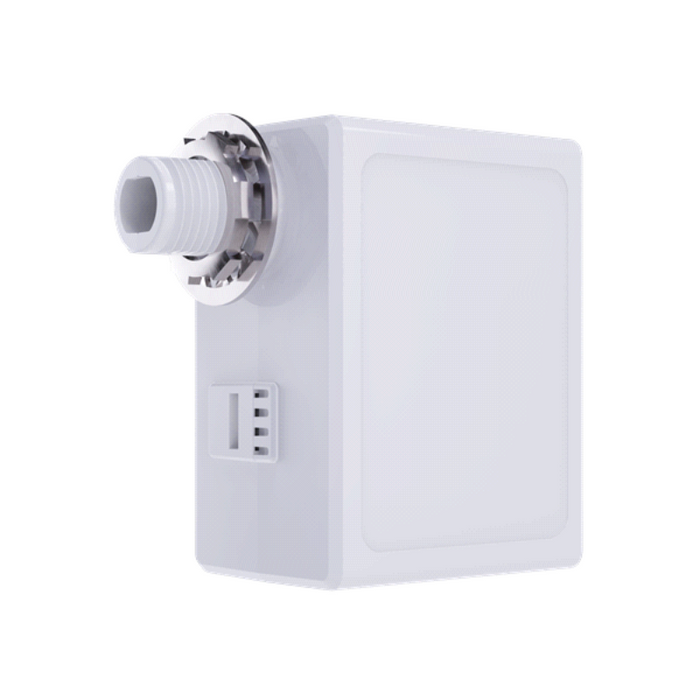

Sensor Switch Contractor Select PP5 SSA D Wireless AIR Power Pack, 120-277V, White
SKU PP5 SSA D 24V
Original price
$0.00
-
Original price
$0.00
Original price
$108.50
$108.50
-
$108.50
Current price
$108.50
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The SensorSwitchTM Power Packs PP5 SSA Series is designed to offer flexible control for commercial and light industrial applications. The PP5 SSA Series of devices provides an all-inclusive wireless solution designed for maximum flexibility to control LED drivers. It consists of a relay, 0-10V dimming sink control, and a low-voltage power supply output used to power the CMS SSA wireless sensor series.
Features
- Color: White
- Voltage: 120-277V
- DC Output: 24V
- Voltage Type: Line
- 0-10VDC dimming output (via chase nipple), 24V output terminals
-
On/Off and dimming control of a luminaire or group of luminaires
- Controls up to 80 mA of 0-10V controlled fixtures together
- Support luminaires with electronic off capabilities (zero light output based on 0-10V diming level without load switching)
- 24VDC output to power up to 2 CMS SSA ceiling mount sensor
- Supports app-less pairing
- Mounting: 0.5" Knockout
Dimensions
-
Width: 3.5"
- Height: 3.52"
- Depth: 1.82"
Warranty
- 5-Year Limited Warranty
