Sensor Switch CMR Ceiling Mount Sensor, Large Motion 360°
Estimated Shipping Widget will be displayed here!
OVERVIEW

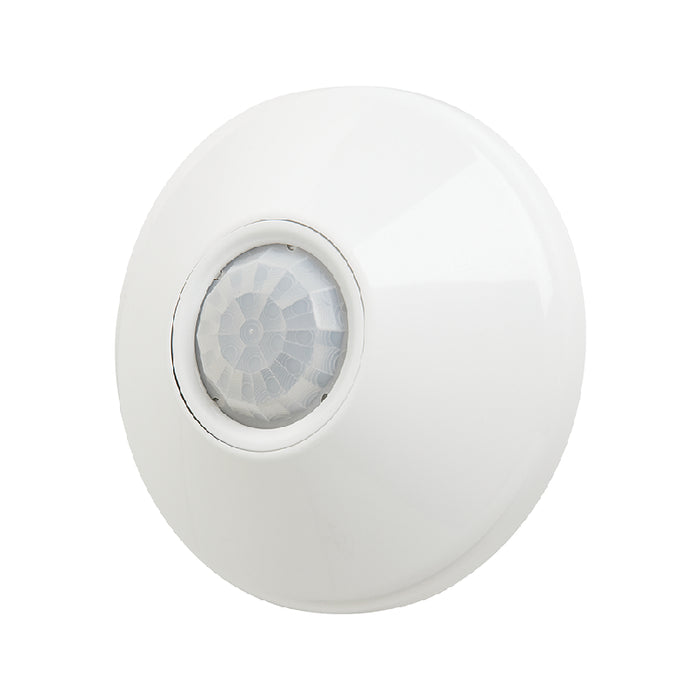

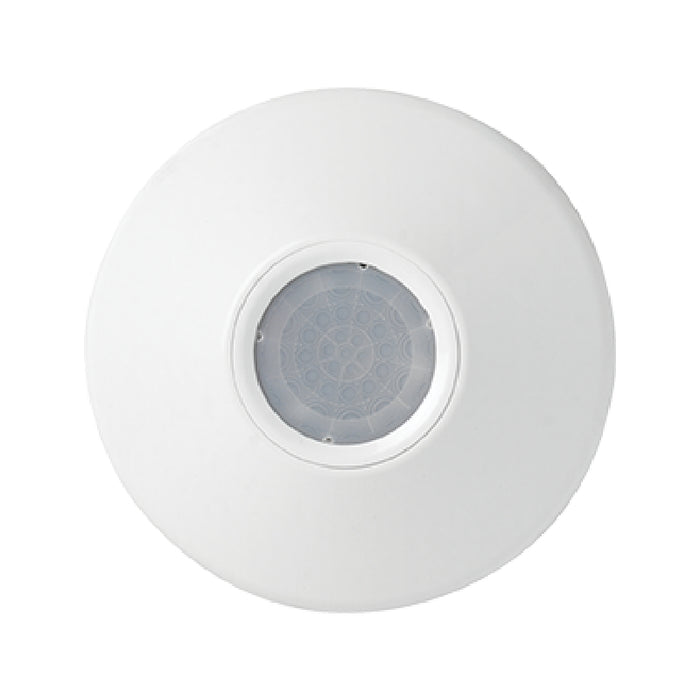

The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves.
Features
- Type: Large Motion 360°
- PIR occupancy detection
- 360° coverage
- Self-contained relay (no power pack needed)
- Time delay: 30 sec to 20 min
- No minimum load requirements
- Push-button programmable
- Green LED indicator
- 100-hour lamp burn-in timer mode
- Push- button programmable, adjustable time delays, and multiple operating modes
- 100 hr lamp burn-in timer
- No field calibration or sensitivity adjustments required
