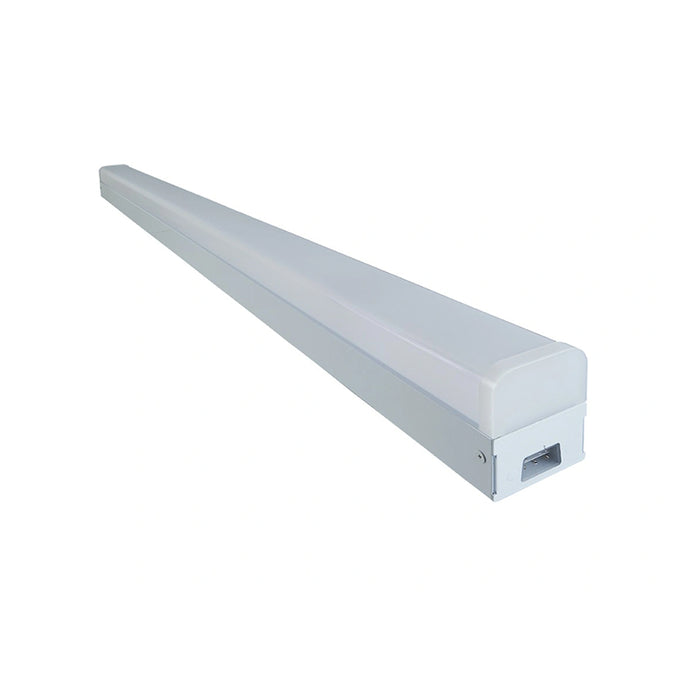

RemPhos RP-LBIMAX 4-ft 30W/35W/40W/48W LED Linkable Strip Light with Emergency Battery Backup, 4CCT Selectable, up to 6365 Lumens, 120-277V

The LBI MAX is a linkable, linear fixture or retrofit kit available in 2 FT & 4 FT configurations. Equipped w/ SuperFLEX adjustability to select the ideal wattage and color temperature to address every application. The LBI MAX is the perfect luminaire for commercial, retail, manufacturing, warehouse, and display applications.

Features

• Wattage: 30W/35W/40W/48W Selectable
• Voltage: 120-277V
• Color Temperature: 3000K/3500K/4000K/5000K Selectable
• Lumens: 3997-6365
• CRI: 80+
• 0-10V Dim to off
• Beam Angle: 120°
• Link up to (20) units together @ 120VAC, or up to (40) units @ 277VAC
• Seamless connectors allow multiple units to run on a single power source
• Surface mount (wall or ceiling) or suspend e/ included V-hooks
• Included Hardware:
  • V-Hooks
  • Bolt Caps
  • Junction Box Cover
  • Dead End Caps

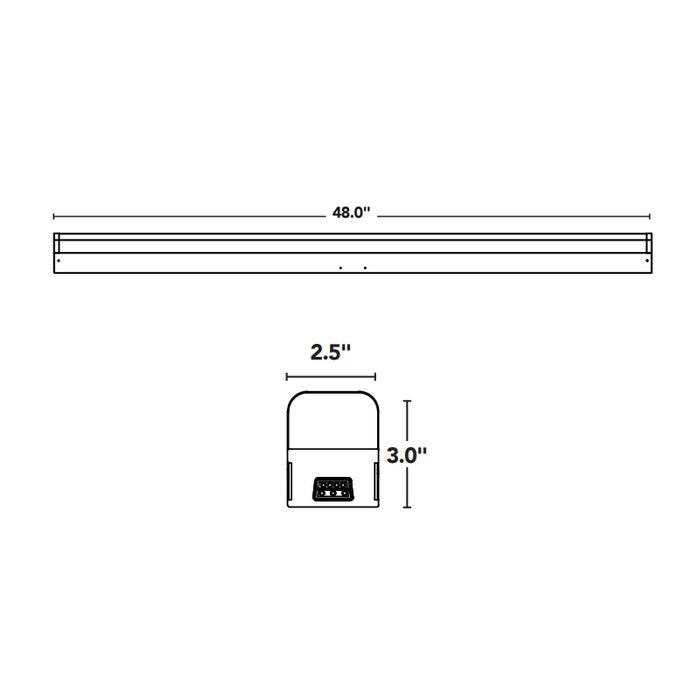

Dimensions

• Width: 48"
• Height: 3"
• Depth: 2.5"

Estimated Life

• 510,000 hours Rated Life

Warranty

• 10 year warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories (Sold Separately)

• Surface Mount Linking Bracket:  RP-LBIMAX-SM-LINK
• Suspension Mount Linking Bracket: RP-LBIMAX-SPND
• Suspension Mount Linking Bracket Kit: RP-LBIMAX-SPND-KIT
• Suspension Kit: RP-LBIMAX-SIL-KIT-2P
• Pendant Mount Kit: RP-LBIMAX-PM-KIT
• Seamless Connector: RP-LBI-SSC-DIM-10P, RP-LBI-SSC-NODIM-10P
• Linking Cable: RP-LBI-LC
• 3-ft Incoming Power Kit: RP-LBI-G1-IP-3F-DIM
• Incoming Power Cable w/ Switch: RP-LBI-G1-IP
• 90° Incoming Power Cable: RP-LBI-G1-IP-90DEG-12F-DIM
• Right-Turn 90° Corner: RP-LBIMAX-LR-16W-40K-WC
• Left-Turn 90° Corner: RP-LBIMAX-LL-16W-40K-WC
• 4W Emergency Battery Backup: RC-LBIMAX-4W-EMGKIT

Labels and Listings
