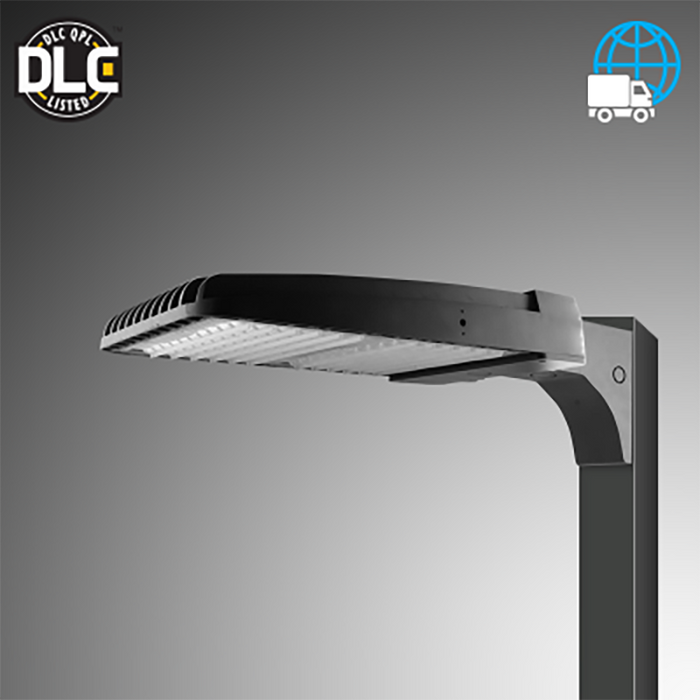

Rayon T322LEDB Series 22" Skyline LED Area Light, 160W / 240W / 320W / 400W & 3CCT Selectable, Type 3 Distribution, Arm Mount, Bronze Finish

SKU T322LEDB WS400 CTS UNV T3 AMR BZ
Original price $0.00 - Original price $0.00
Original price
$424.00
$424.00 - $595.60
Current price $424.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Voltage: 120-277V
Mounting: Arm Mount Round

Estimated Shipping Widget will be displayed here!

OVERVIEW

The Skyline LED luminaire delivers exceptional performance in a sleek, low-profile design with various lumen and optical distribution options. The intended use of this product is for building areas, parking lots, auto dealerships, roadways, walkways, pedestrian pathways, and security lighting.

Features

  • Fixture pole sold separately
  • Finish: Bronze

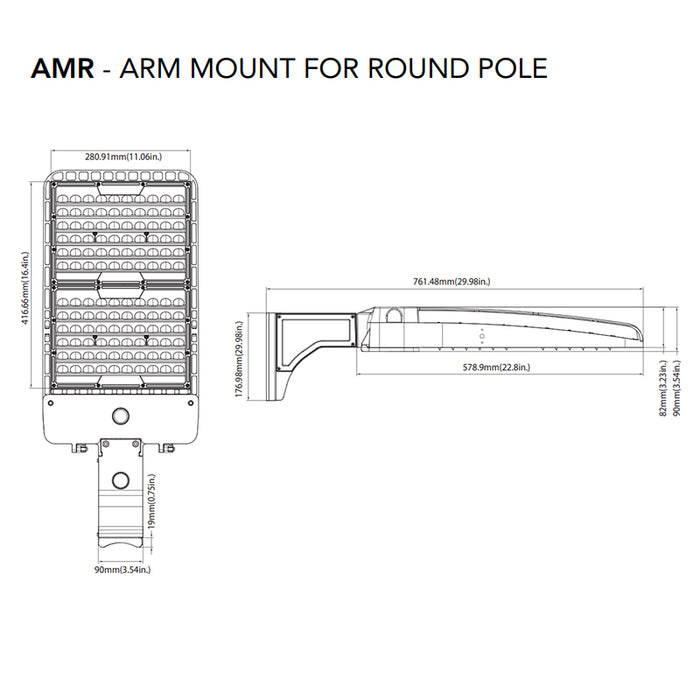

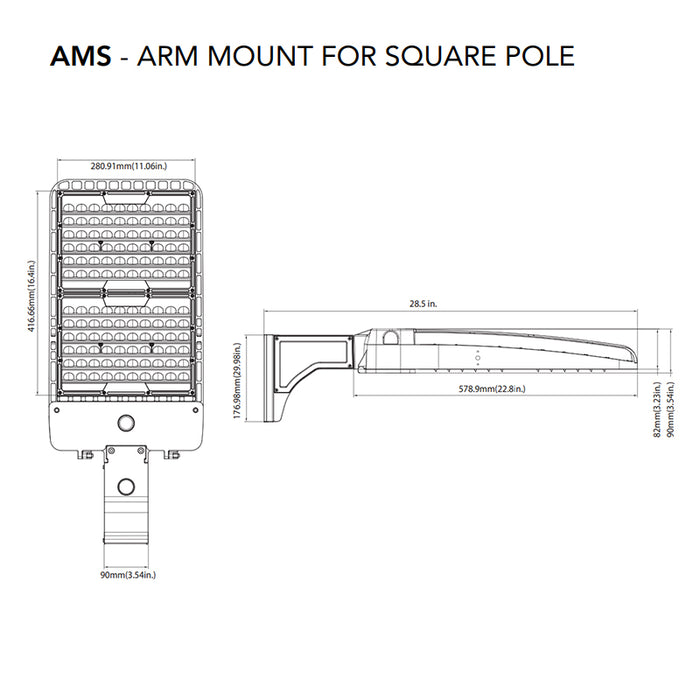

  • Mounting: Arm Mount Round, Arm Mount Square
  • Wattage: 160W / 240W / 320W / 400W Selectable
  • Voltage: 120-277V, 347-480V
  • Color Temperature: 3000K / 4000K / 5000K Selectable
  • Lumens: 25600 - 60500 Depends on Wattage & CCT Selected
  • CRI: 70
  • Durable LED driver operates at 120–277V with 0-10V dimming protocol
  • Die-cast aluminum fixture with isolated driver compartment and finned heat sink keep electrical temperatures in suitable ratings for optimal performance
  • D.L.C. Only available in 120–277V

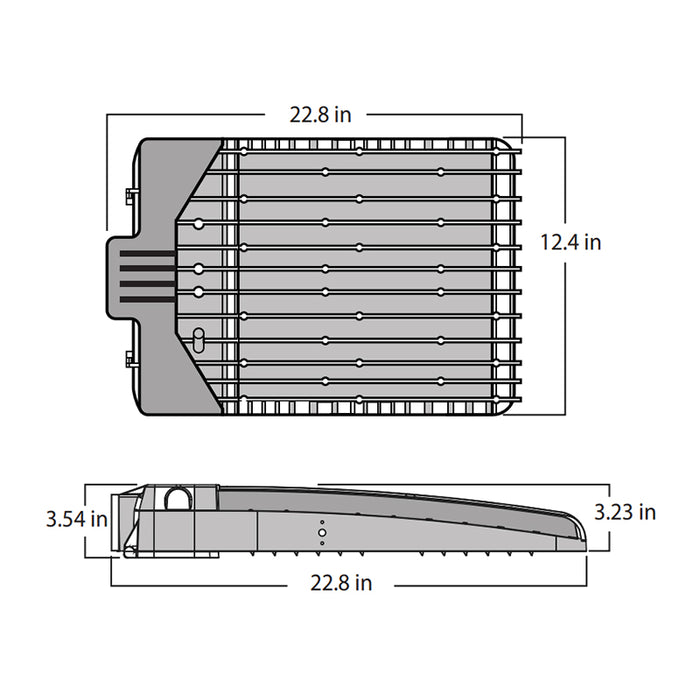

Dimensions

  • Length: 22.8"
  • Width: 12.4"
  • Height: 3.54"
  • Weight: 17 lbs

Warranty

  •  5-year limited warranty
