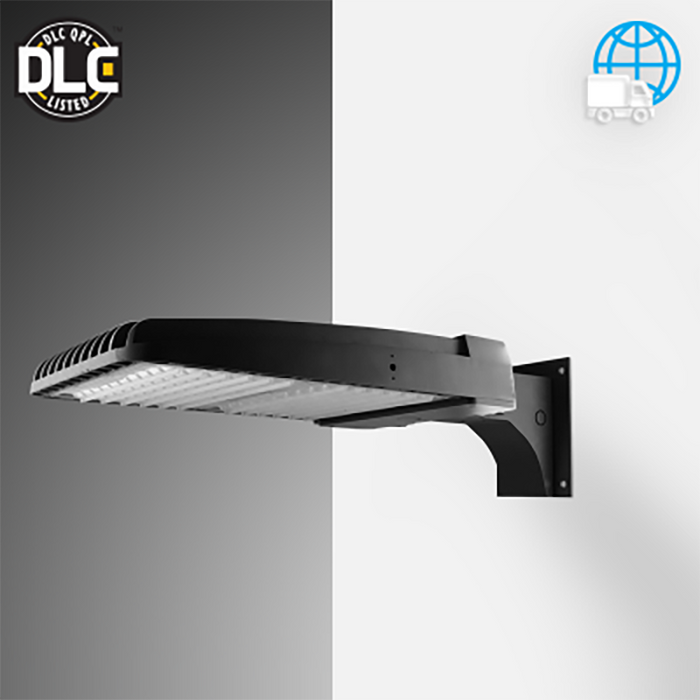

Rayon T322LEDB Series 22" Skyline LED Area Light, 120W / 180W / 240W / 300W & 3CCT Selectable, Type 3 Distribution, Wall Mount, Bronze Finish

The Skyline LED luminaire delivers exceptional performance in a sleek, low-profile design with various lumen and optical distribution options. The intended use of this product is for building areas, parking lots, auto dealerships, roadways, walkways, pedestrian pathways, and security lighting.

Features

• Finish: Bronze

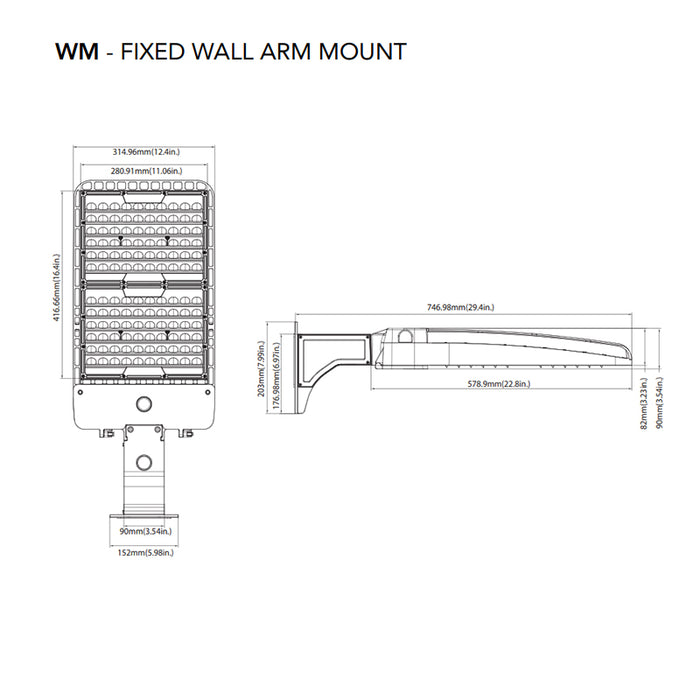

• Mounting: Fixed Wall Arm Mount, Adjustable Wall Mount
• Wattage: 120W / 180W / 240W / 300W Selectable
• Voltage: 120-277V, 347-480V
• Color Temperature: 3000K / 4000K / 5000K Selectable
• Lumens: 18084 - 44813 Depends on Wattage & CCT Selected
• CRI: 70
• Durable LED driver operates at 120–277V with 0-10V dimming protocol
• Die-cast aluminum fixture with isolated driver compartment and finned heat sink keep electrical temperatures in suitable ratings for optimal performance
• D.L.C. Only available in 120–277V

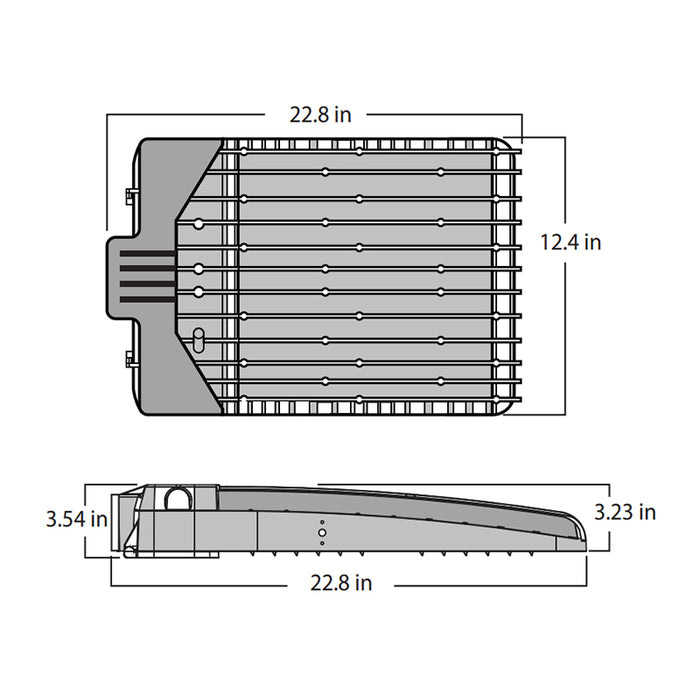

Dimensions

• Length: 22.8"
• Width: 12.4"
• Height: 3.54"
• Weight: 17 lbs

Warranty

•  5-year limited warranty

Documents

• Spec Sheet
