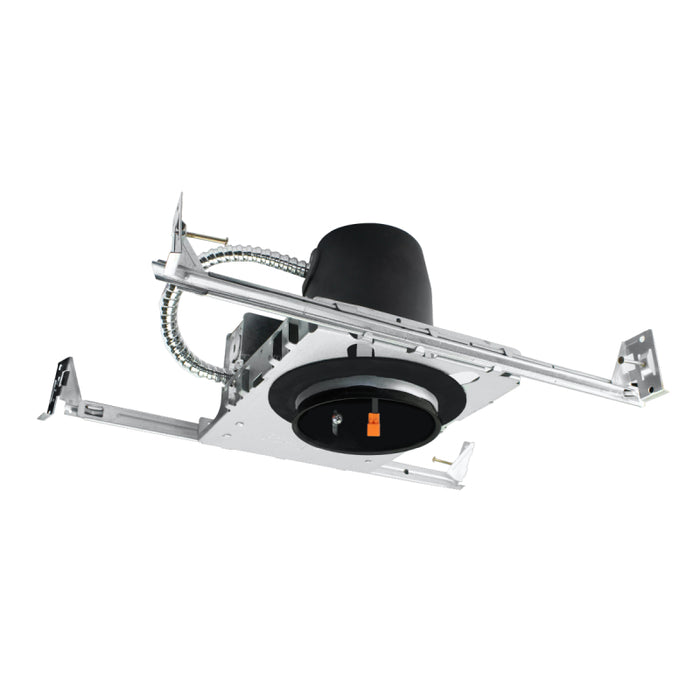

Rayon RHL4-ICAT 4" IC Air-Tight New Construction LED Housing, Triac/ELV, 120V

The RHL4-ICAT is the ideal product for general purpose recessed LED housing for residential, commercial, hospitality, health care, restaurant and retail applications. This product is compatible with the Versatrim RFL4 Series in round or square in various baffle, reflector, and trim ring color selections to achieve a particular look.

Features

• Housing only. Trim sold separately.
• Recessed Size: 4"
• Voltage: 120V

• Dimming: Triac/ELV
• Minimum Clearance Rated for IC/ Non - IC application. “IC” or insulated ceiling housings are rated for direct contact with insulation. No minimum clearance is required.
• Ceiling Thickness Up to 1¼
• Bar Hangers Bar Hangers are adjustable from 13-5/8 to 25” and can be repositioned to 90° on plaster frame. Pre-installed“real nail” easily installs in regular lumber, engineered lumber
• Junction Box Junction box is listed for through branch circuit wiring and contains seven 7/8” knockouts and four ROMEX pryouts with Romex cable clamp. Ground wire provided on J-Box
• New Construction Frame Galvanized steel construction

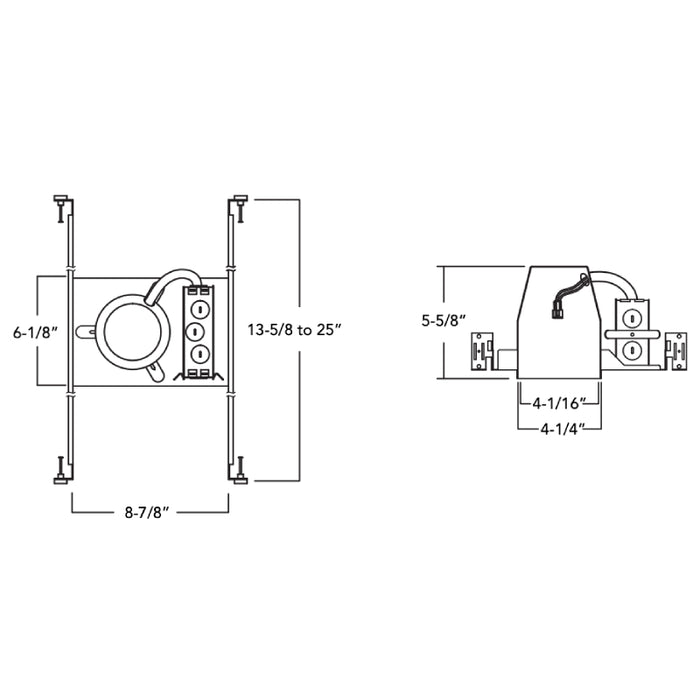

Dimensions

• Length: 13.63" to 25"
• Width: 8.88"
• Height: 5.63"


Warranty

• 5-year warranty

Documents

• Spec Sheet


Compatible Trim (Sold Separately):

• REC4R 7L
• REC4R 10L
• REC4S 10L

Labels and Listings

• cUL listed for Wet location
• Certified under ASTM-283 for Air-Tight Construction
• Title 24 Compliant
