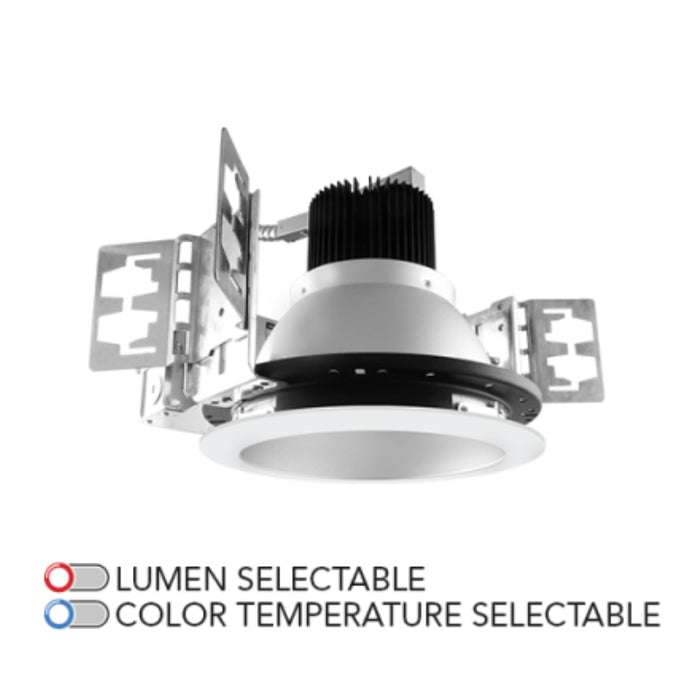

Rayon RBC6-FN 6" 50W/60W/70W Builders Plus LED Commercial Downlight New Construction, Lumens & 3CCT Selectable, 120-277V

The 6" Builders Plus LED Commercial Downlight series is the ideal product for energy-efficient lighting in Non-IC new construction commercial applications.

Features

• Reflector Finish: Haze, White
• Trim Finish: White
• Wattage: 50W / 60W / 70W
• Voltage: 120-277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 4000 / 4500 / 5100
• CRI: 84+
• Optical Lens: 70° standard
• Architectural frame includes butterfly brackets to accommodate c-channel or flat bar hangers to tie down to ceiling grids. Junction box mounted to frame for easy wire access and for driver installation/replacement.
• LED driver accommodates 120–277V input with 0–10V dimming protocol
• Self-flanged spun aluminum reflector with frosted lens to shield direct view from LEDs. Reflector available in haze finish with white trim

• Non-IC housing. Insulation must be kept at least 3" away from fixture

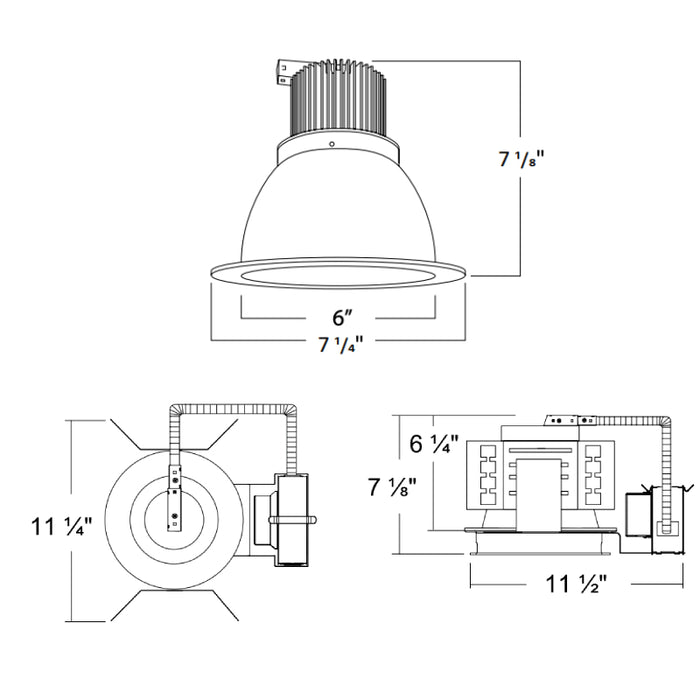

Dimensions

• Diameter: 7.25"
• Height: 7.13"

Estimated Life

• 50,000 hours

Warranty

• 5 year limited warranty

Documents

• Spec Sheet


Accessories (Sold Separately):

• Channel Bar Hanger:  C
• Universal Bar Hanger: UH

Labels and Listings

• cUL listed
• Energy Star
• Title 24
• Wet location
