Oracle 24-OT-LED-ML-CCT 2x4 Troffer, Selectable Lumens (3000L/4000L/5000L), 0-10V Dim, 120-277V, Selectable CCT (35K/40K/50K), 85CRI, A12 Lens

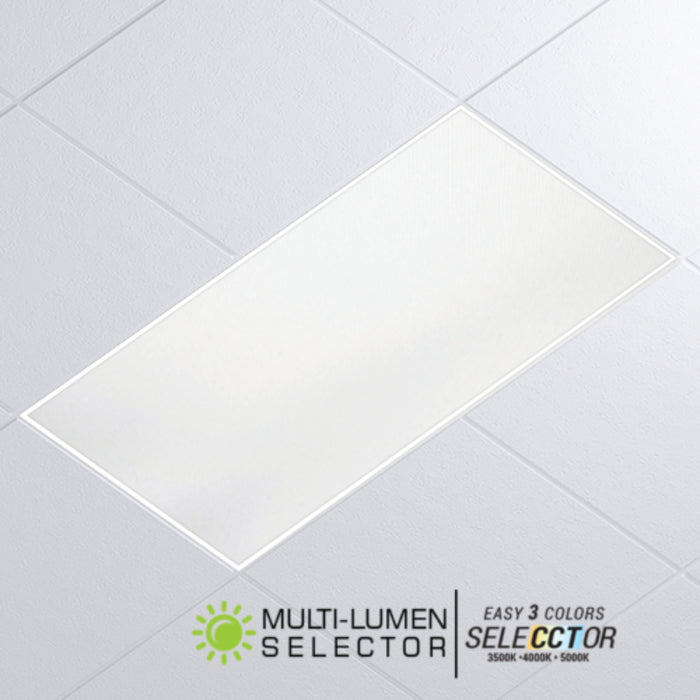

The OT-LED blends the traditional look of an architectural volumetric troffer with a center acrylic diffuser, resulting in unmatched optical performance that delivers the latest in LED technology and lens innovation.

Features

• Size: 2 x 4
•  Wattage/Lumens:
  • 24W / 3000 lm
  • 34W / 4000 lm
  • 42W / 5000 lm
• Voltage: MVOLT (120-277V)
• Color Temperature: 3500K / 4000K / 5000K Selectable
• CRI: 85
• Dimming: 0-10V Flicker Free 1% Dimming Standard (DIM10)
• Lens: A12
• The center acrylic diffuser can be removed, allowing easy access to LED boards and driver compartment, locking into place for secure closure of the luminaire

• The The OT-LED uses a prismatic acrylic lens to scatter the light emitted from the LED chips into functional light
• Body is constructed of heavy-duty 20-gauge cold rolled steel gasketed, post-painted and engineered for maximum strength and extended life

• Luminaires accommodate lay-in ceilings, Slot T, and T-bar suspension systems for 5/8" and 3/8" ceiling thicknesses

• Four corner tie points are standard for safety wire support when required, with built-in earthquake clips, standard

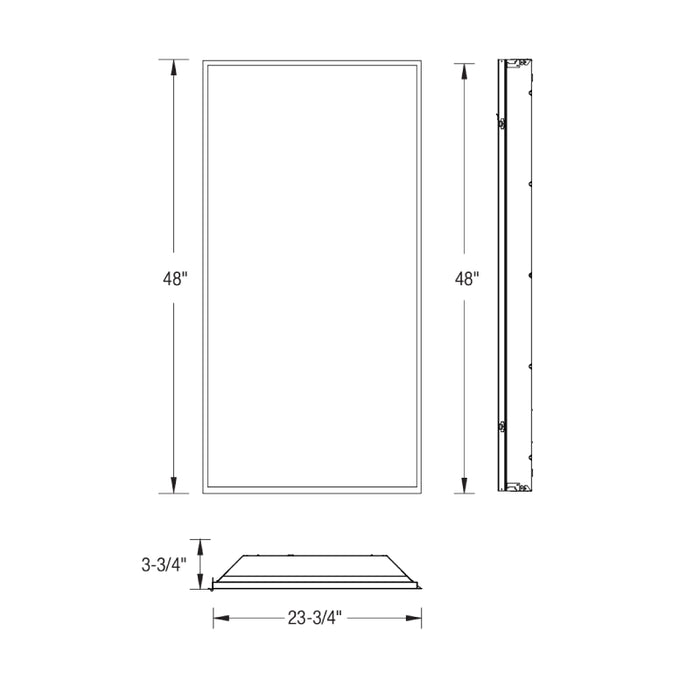

Dimensions

• Length: 48"

• Width: 23.75"
• Height: 3.75"

Estimated Life

• L70 at 116,000 and L80 at 72,000 hours


Warranty

• 5-year warranty for parts and components. (Labor not included)

Documents

• Spec Sheet

Labels and Listing:

• c-UL-us - Listed for Feed Through Wiring.
• Listed for DLC, California Title 24 compliant.
• Rated for Damp Location
