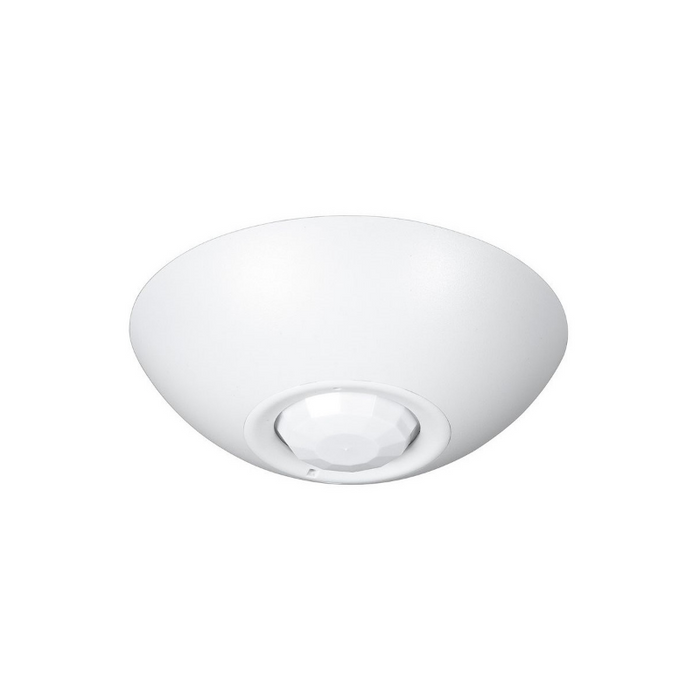

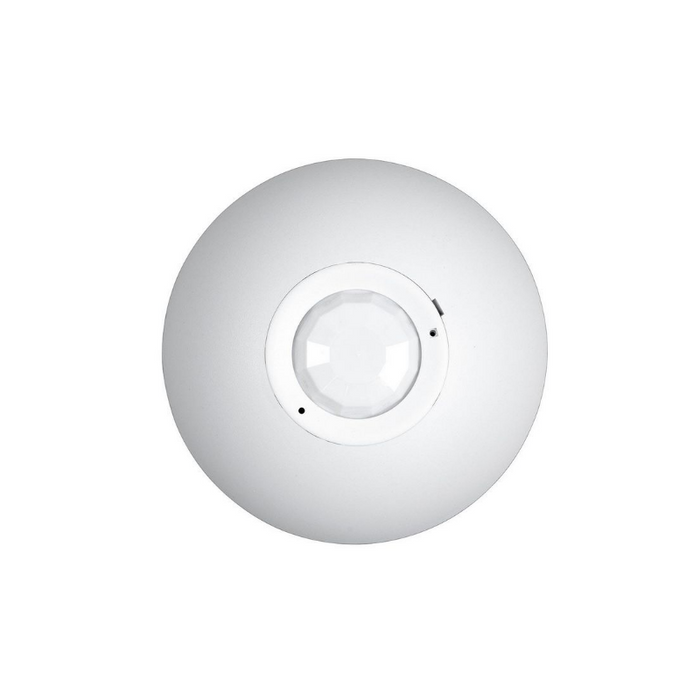

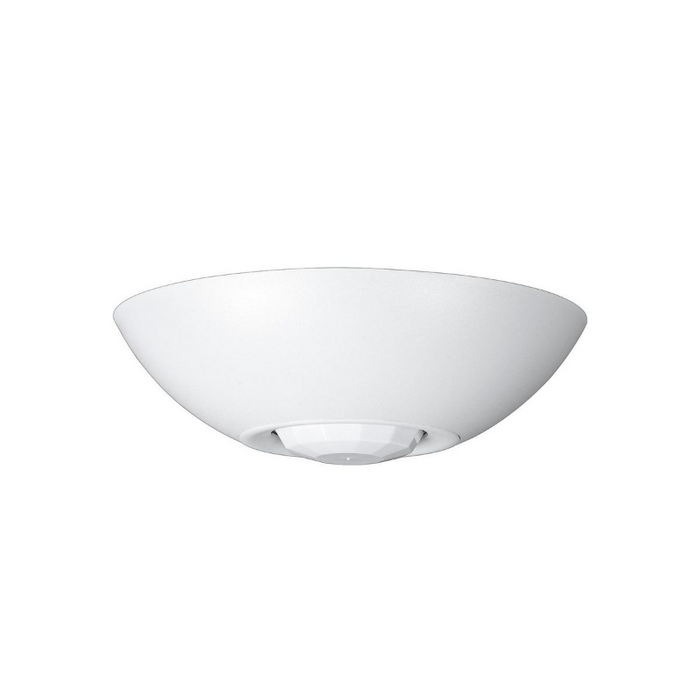

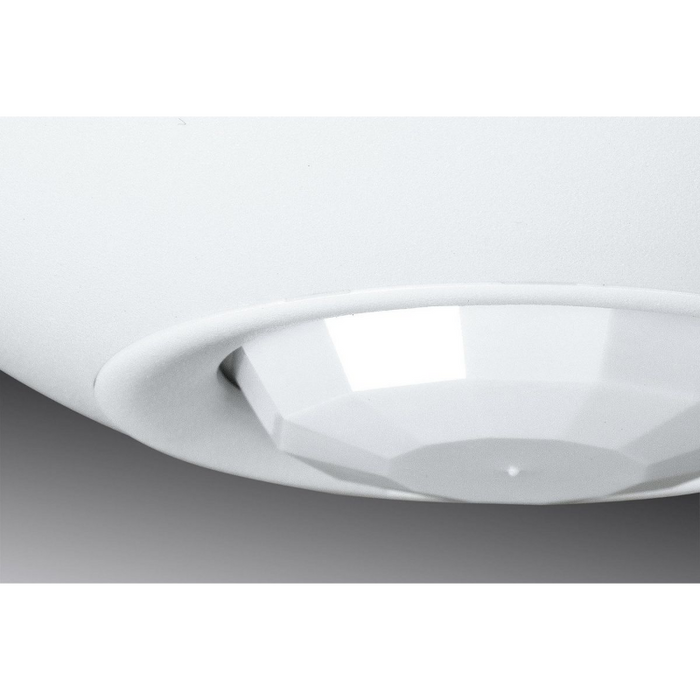

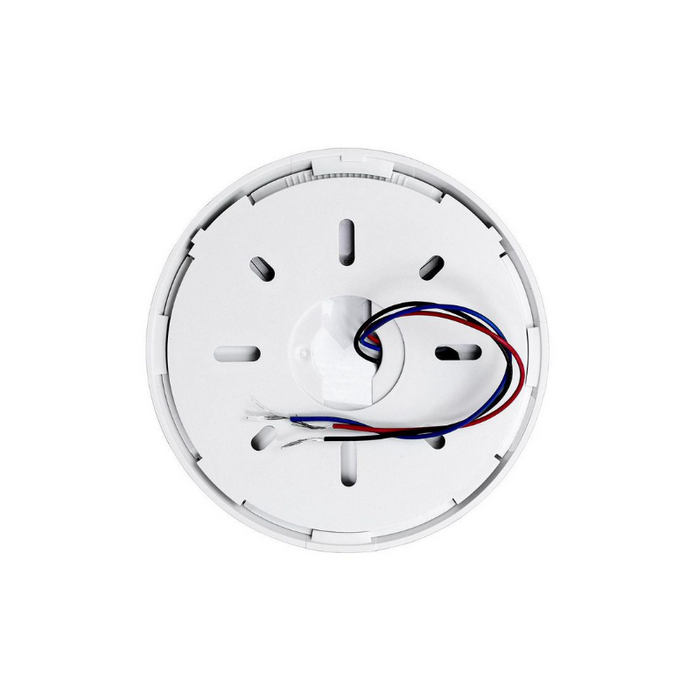

NX Lighting Controls OMNIIRL OMNI Low Voltage PIR Ceiling Sensor with Relay and Photocell, 1500 sq. ft.
SKU OMNIIRLRP
Original price
$0.00
-
Original price
$0.00
Original price
$135.90
$135.90
-
$135.90
Current price
$135.90
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The OMNIIR uses passive infrared (PIR) technology to turn lighting on and off based on occupancy.
Features
- Color: Off-White
- Voltage: 24V DC
- IntelliDAPT self-adaptive technology
- All-digital passive infrared (PIR) sensor
- Non-volatile memory for sensor settings
- 1500 square-foot coverage area
- Photocell: adjustable natural-light override ranges from 0 to 100 foot- candles (0–1,000 lux)
- Relay: N/O + N/C contacts; SPDT; 500 mA rated @ 24VDC; three-wire isolated relay
- Relay and photocell included

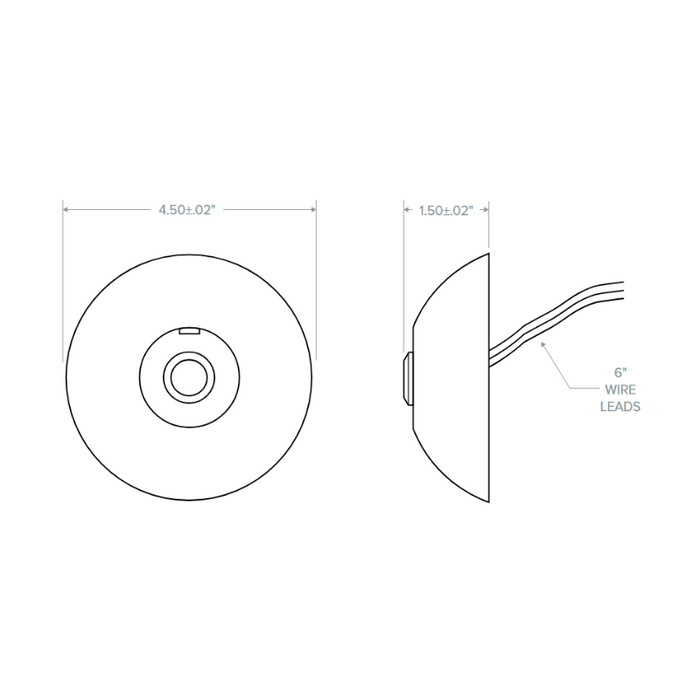

Dimensions
- Width: 4.5"
- Height: 1.5"
Warranty
- 5 Years Limited Warranty
