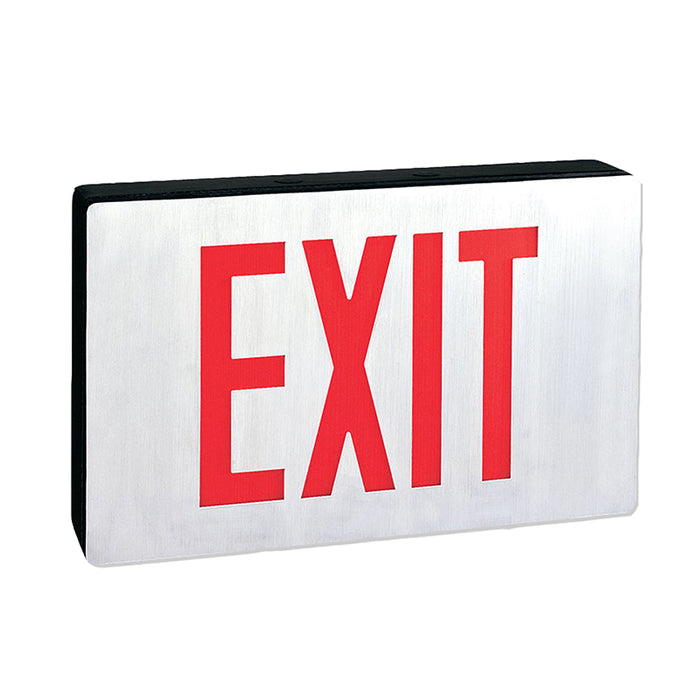

Nora NX-615-LED/R Self-Diagnostic Die-Cast Aluminum LED Exit Sign with Battery Back-up - Single Face, Red Letters

For architectural applications, Nora Lighting offers its low profile, die-cast aluminum LED exit sign with battery backup. Both die-cast faces are brushed to give a simple, yet elegant, effect.

Features

• Housing Color: Black
• Letter Color: Red
• Number of Faces: Single
• Operation: Battery Backup

• Wattage: 2W
• Voltage: 120/277V
• 6" Letters
• Brushed, die-cast aluminum, low profile, snap-together housing constructed of 20 gauge steel. Snap-out knockouts for wiring
• Can be mounted on a wall, side or ceiling mounted (all mounting hardware included)
• Replaceable Ni-Cad battery offers 90 minute emergency operation on fully charged battery

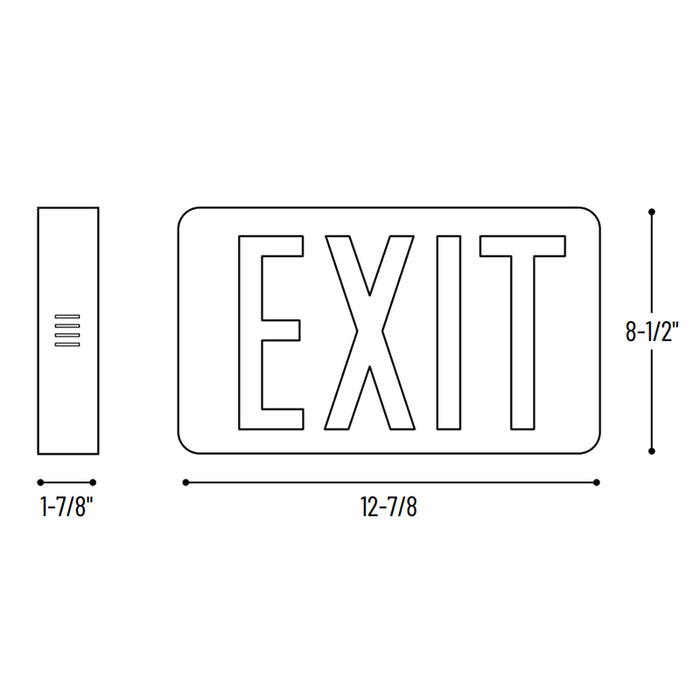

Dimensions

• Width: 12.88"

• Height: 8.5"
• Depth: 1.88"

Estimated Life

• Life Expectancy: require no maintenance for 25 years

Warranty

• 5-year warranty on material and worksmanship
• Complete warranty terms located at: https://noralighting.com/wp-content/uploads/2019/02/Limited-Warranty-Five-Year.pdf

Documents

• Spec Sheet

Labels and Listings

• UL Listed
• NFPA / NFPA-101
• NEC
• Certified to the energy efficiency standards of California Title 20
