Description

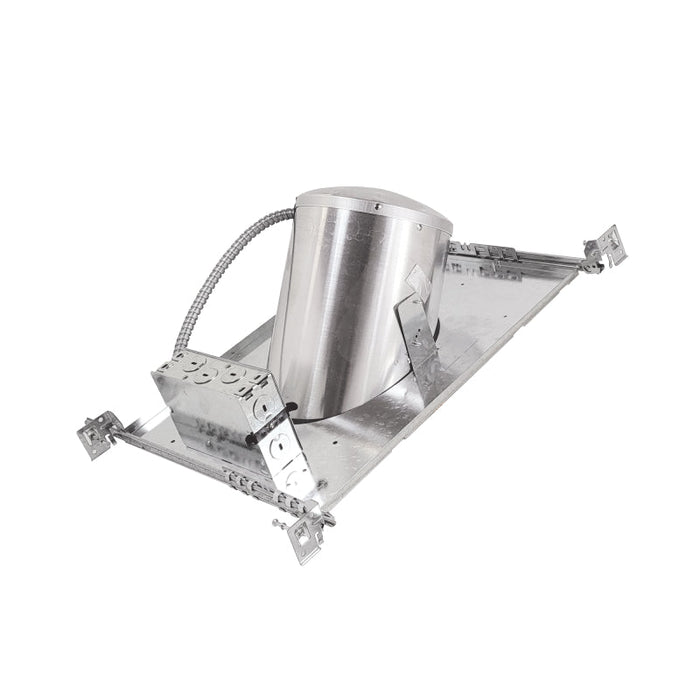

New construction housing for pitched ceilings ranging from 7/12 to 12/12. Air-tight housing additionally reduces energy costs by decreasing the flow of air escaping through the ceiling. Rated for direct contact with insulation and adjacent ceiling structures.
Features
- Trim sold separately. Select Here
- Wattage: 75W max (wattage varies based on trim)
- Lamp: Lamp type based on trim selection
- Voltage: 120V
- IC Air-Tight energy saving by reducing the flow of air through the ceiling
- Rated for direct contact with insulation
- 24-1/2" Bar hangers with captive nails and alignment foot
- Accommodates ceiling pitches from 7/12 to 12/12
- Fits in 2" x 8" joist construction

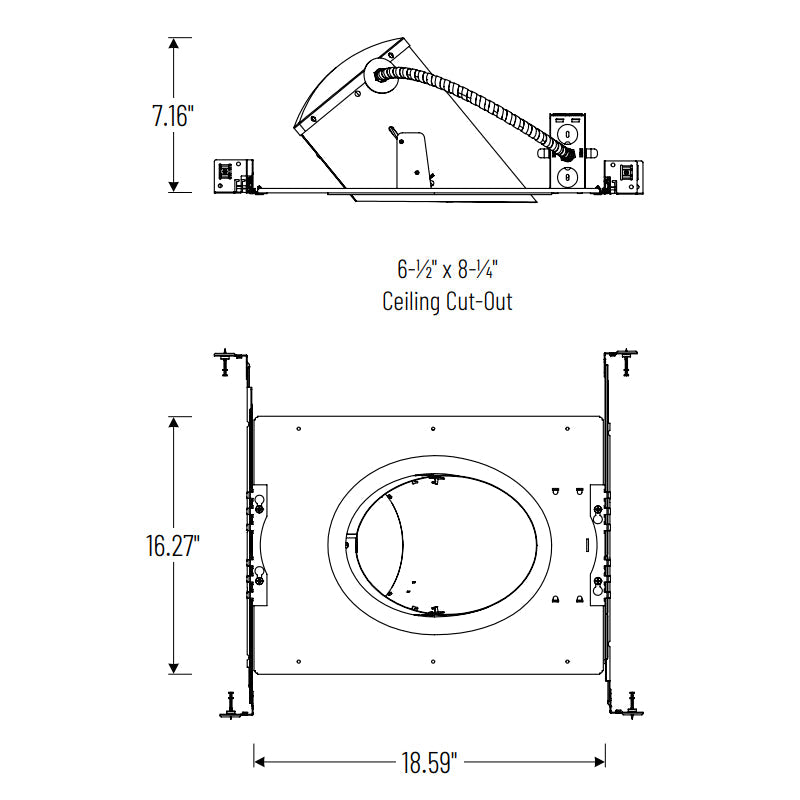

Dimensions
- Length: 18.59"
- Width: 16.27"
- Height: 7.16"
- Ceiling Cut-Out: 6.5" x 8.25"
