Description

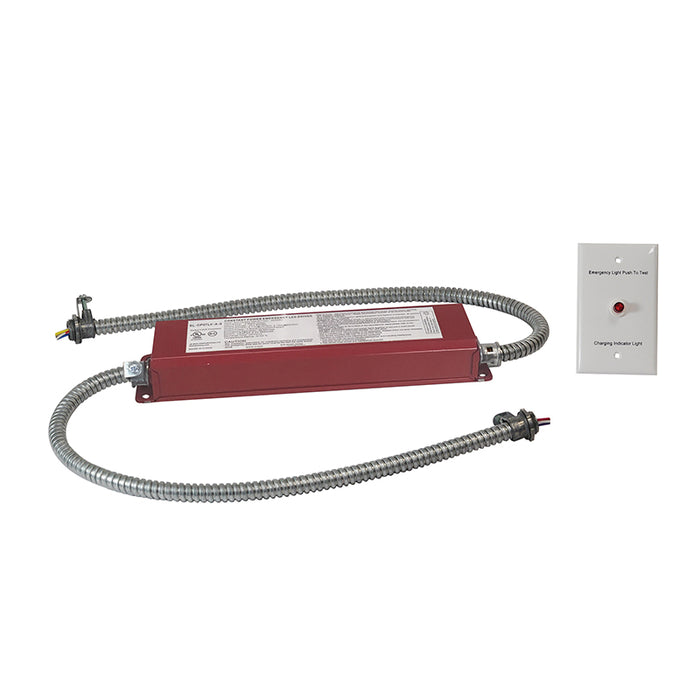

Emergency LED driver for use with new or existing LED luminaires. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.
Features
- Wattage: 7W
- Input Voltage: 120-277V
- Output Voltage: 10-60VDC
- Illumination Time: 90 minutes
- Class 2 output
- Controlled power for predictable discharge
- Includes wall plate with test switch

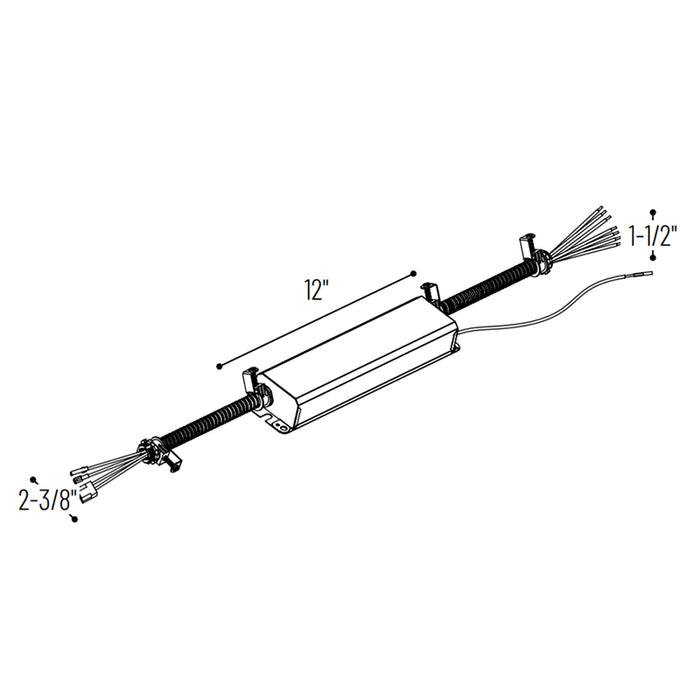

Dimensions
- Width: 12"
- Height: 2.38"
- Depth: 1.5"
