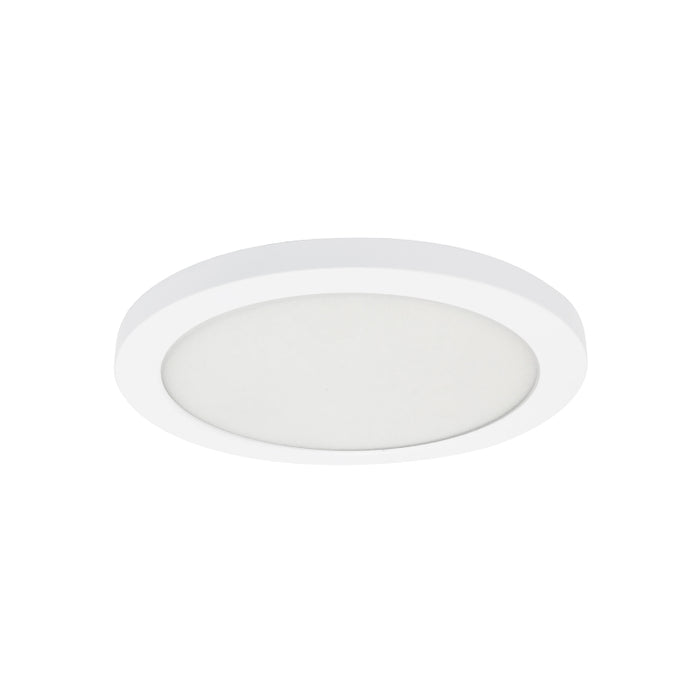

Nora NELOCAC-8RP 8" ELO+ 18W LED Surface Mount

ELO family of LED luminaires are a thin 1/2" surface mounted luminaire with dedicated color temperature.

Features

• Recessed Size: 8"
• Finish: White
• Wattage: 18W
• Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 1100
• CRI: 90+
• Dimming: : Triac (Leading Edge) or ELV (Trailing Edge)
• Construction: Surface mounted luminaire includes integral driver
• Mounting: Steel bracket can be used to surface mount on junction box.

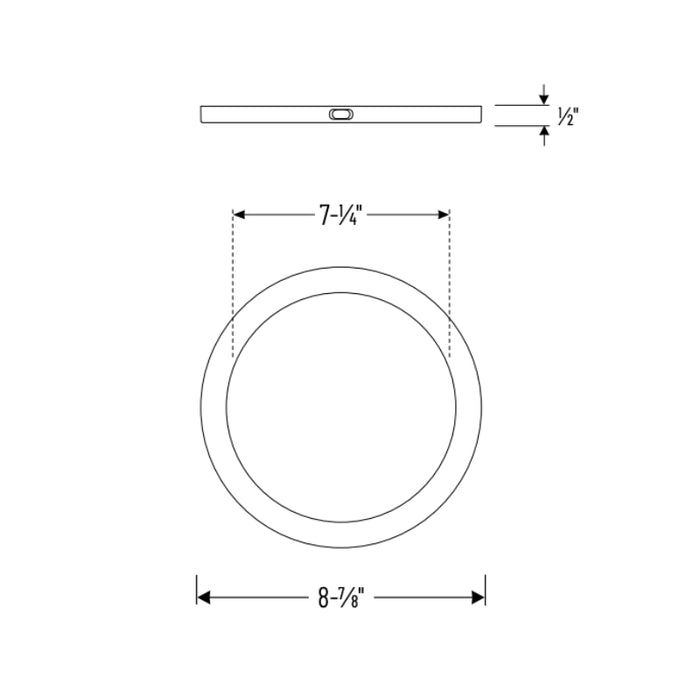

Dimensions

• Width: 7.13"

• Height: 0.5"

Estimated Life

• >90,000 hours (L70)

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cETLus Listed for Damp Location
• cETLus classified for retrofit
• FCC certified
• Certified to the high efficacy requirements of California Title 24 JA8-2025
• Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
