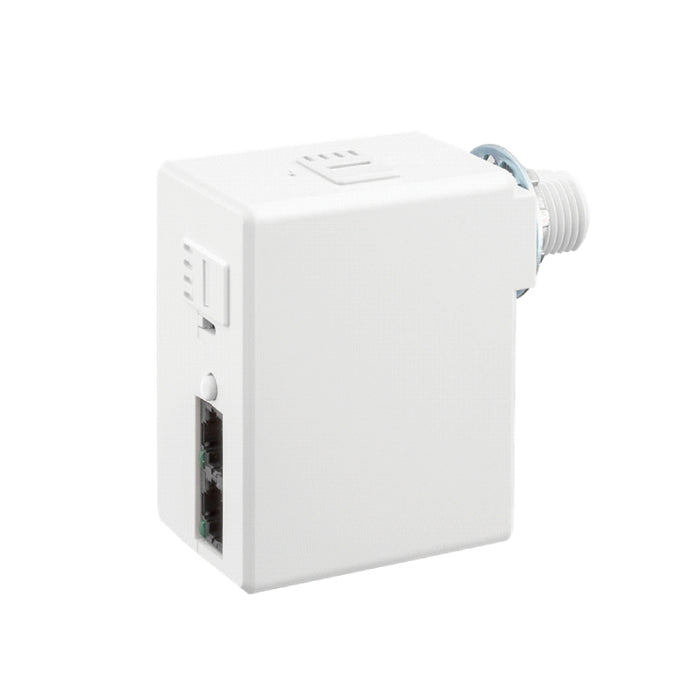

nLight NPP16 D EFP Power/Relay Pack, 120/277V, 0-10V Dimming, External Fault Protection
SKU NPP16 D EFP
Original price
$0.00
-
Original price
$0.00
Original price
$183.11
$183.11
-
$183.11
Current price
$183.11
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The nLight nPP16 EFP family of power packs is the workhorse of an nLight system, delivering robust system performance and design versatility for commercial and industrial lighting control applications. The nPP16 EFP family is capable of switching loads via an internal latching relay designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads.
Features
- Color: White
- Voltage: 120/277VAC
- Dimming: 0-10VDC Dimming output (via chase nipple)
- External Fault Protection
- Default Mode: Auto On (Switch Ch. 1)
- Temp/humidity: Standard
- Mounting: 1/2” Knockout (7/8" hole)
- Communicates w/ nLight Network
- Self-Contained Relay Switches Line Voltage Load
- Supplies 40mA of Bus Power / RJ-45 port
- Remotely Configurable/Upgradeable
- Push-Button Programmable
- Configurable Relay Logic
- Extended Chase Nipple
- Plenum rated
- Includes fuse integrated to relay wirelead for protection from load faults
- Meets NEMA410 ratings for LED/electronic ballast inrush
- Programmable return to last state capability
Dimensions
- Width: 2.53"
- Height: 3.38"
- Depth: 1.83"
Warranty
- 5-year limited warranty
