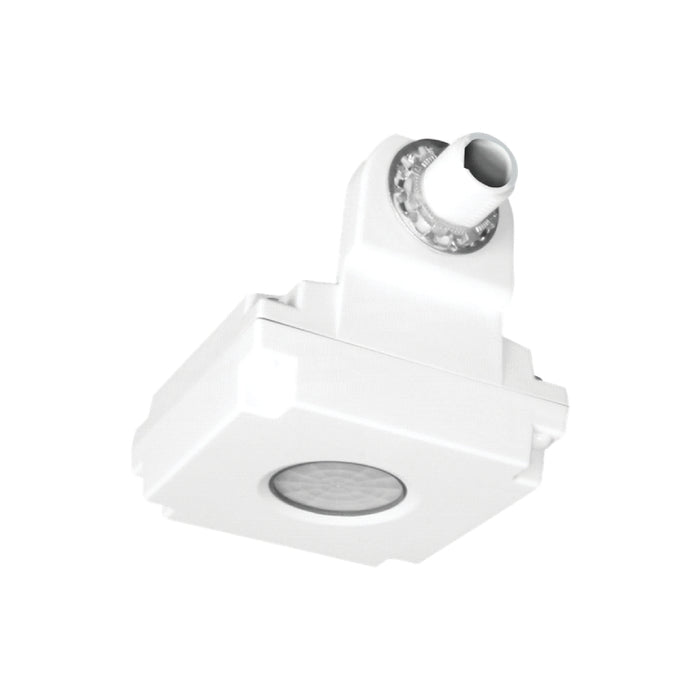

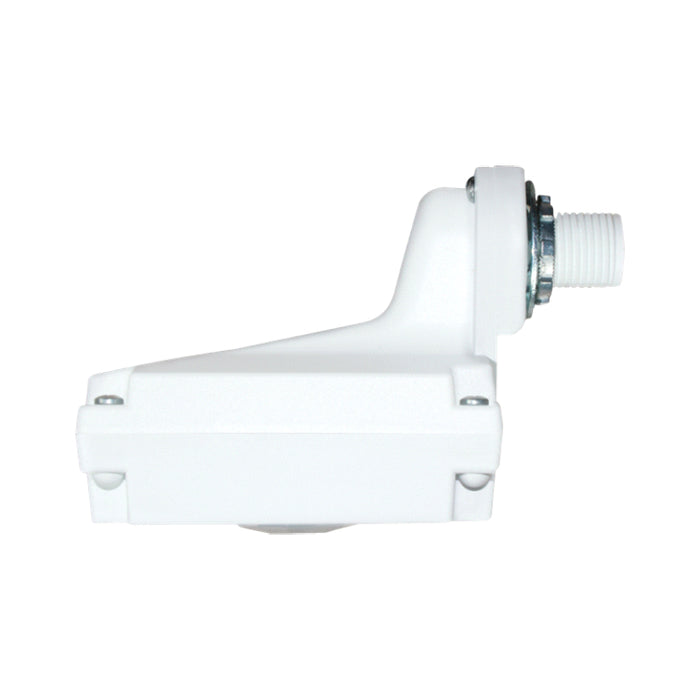

nLight rSBOR 6 WH G2 AIR Outdoor Pole/ Fixture Mount Sensor, High Mount
Estimated Shipping Widget will be displayed here!
OVERVIEW
The nLight AIR rSBOR outdoor pole and fixture mount motion and photo sensor provides reliable networked control in a variety of outdoor and indoor lighting control applications. Designed to mount directly through a 1/2" knockout (7/8" hole) in a light fixture or pole, the rSBOR utilizes 100% Digital Passive Infrared (PIR) technology that is tuned for walking size motion while preventing false tripping from the environment. The rSBOR has a dual radio that allows it to communicate wirelessly to other nLight AIR devices to enable control strategies like group response to motion, on/off control in response to daylight, and on/off by switch.
Features
- Color: White
- Mounting: 1/2" knockout (7/8" hole)
- Mounting Height: High Mount (15-30 ft)
- Voltage: 120-277V
- Body/ Bracket: Short extension, low back
- Generation 2 compatibility
- 100% digital PIR detection
- Combined daylight and occupancy sensor
- Fully dimmable with 0-10V dimming, providing the right amount of light for the application and to optimize energy savings
- Power Monitoring with Current Measurement +/- 3% accuracy
- Programmable return to last state capability

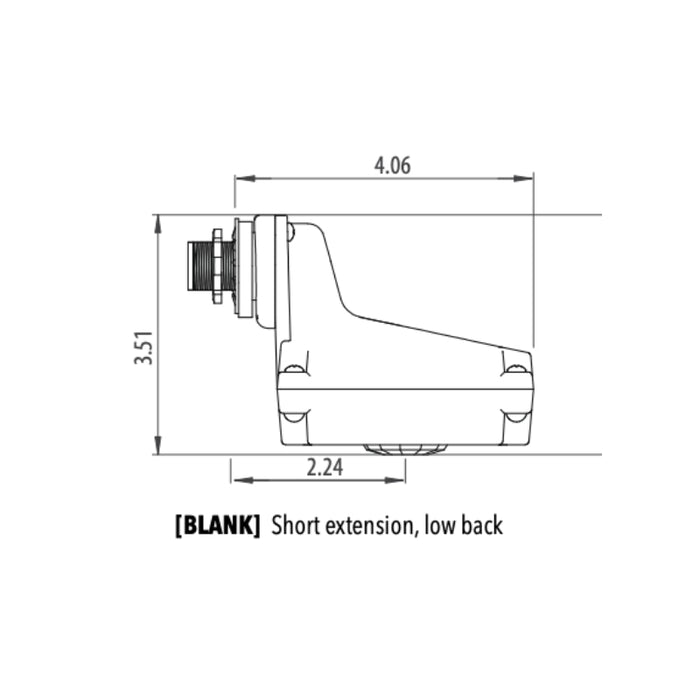

Dimensions
- Width: 4.06"
- Height: 3.51"
Warranty
- 5 Years Limited Warranty
Documents
Labels and Listings
- cULus
- RoHS
