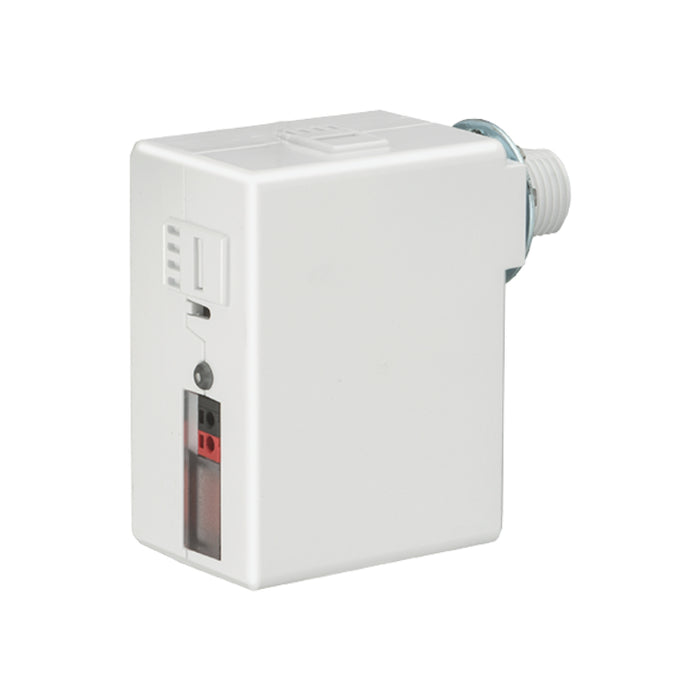

nLight RPP20 D EFP CP G2 AIR Power/Relay Pack, 120-277V, 0-10V Dimming, External Fault Protection, Chicago Plenum

nLight AIR rPP power packs are designed to offer flexible control for commercial and industrial lighting applications. The rPP consists of a relay, 0-10V dimming control, and a low voltage power supply output to power and wireless sensors. The rPP is capable of switching loads up to 20 A via a latching relay designed with robust inrush protection. Select power packs provide +24VDC low voltage output to power up to 4 nLight AIR mounted occupancy sensors and photocells. The nLight AIR rPP is designed for use as part of an nLight AIR group of devices or with the nLight ECLYPSE.

Features

• Color: White
• Voltage: 120-277V
• External Fault Protection

• Dimming and Low Voltage Output: 0-10VDC Dimming output (via chase nipple), no 24V Output Terminals
• Territory Compliance: Chicago Plenum
• Generation 2 compatibility
• Mounting: 1/2" Knockout
• Humidity: 5 to 90% non-condensing
• On/Off and dimming control of a luminaire or group of luminaires
• 24VDC output to power up to 4 nLight AIR rCMS low voltage sensors or other low voltage devices
• Suitable for plug load control
• Power Monitoring with Current Measurement +/- 3% accuracy
• Programmable return to last state capability

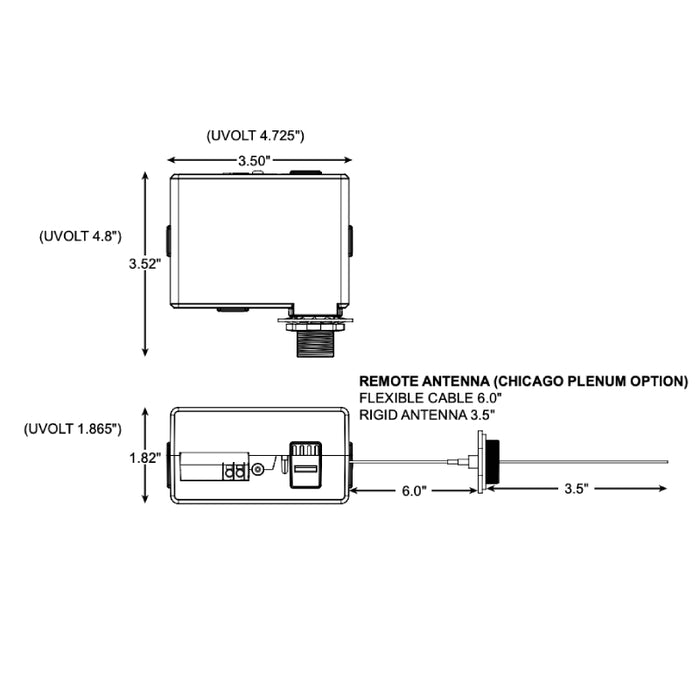

Dimensions

• Width: 3.5"
• Height: 3.52"
• Depth: 1.82"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus
• RoHS
