nLight RPP20 D 24V EM EFP G2 AIR Power/Relay Pack, 120-277V, 0-10V Dimming, 24V Output Terminals, External Fault Protection, Emergency Operation via Sensing Device

nLight AIR rPP power packs are designed to offer flexible control for commercial and industrial lighting applications. The rPP consists of a relay, 0-10V dimming control, and a low voltage power supply output to power and wireless sensors. The rPP is capable of switching loads up to 20 A via a latching relay designed with robust inrush protection. Select power packs provide +24VDC low voltage output to power up to 4 nLight AIR mounted occupancy sensors and photocells. The nLight AIR rPP is designed for use as part of an nLight AIR group of devices or with the nLight ECLYPSE.

Features

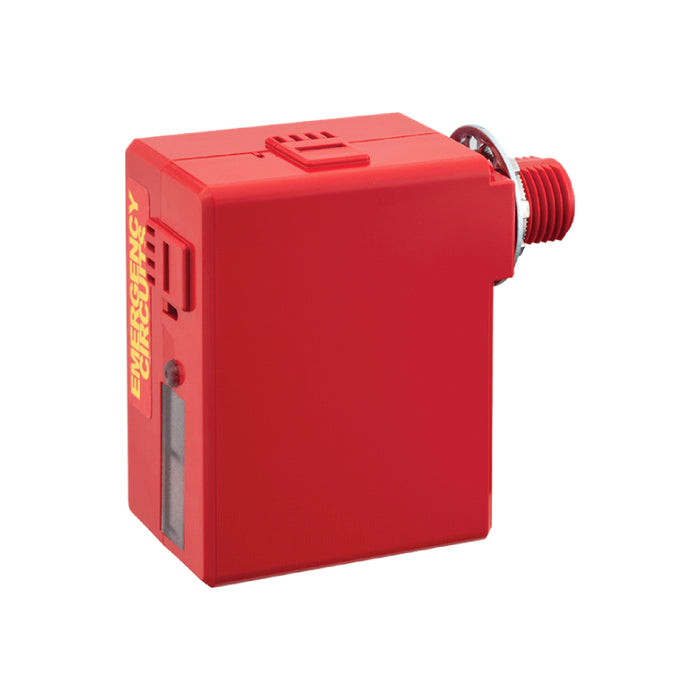

• Color: Red
• Voltage: 120-277V
• External Fault Protection

• Dimming and Low Voltage: 0-10VDC dimming output (via chase nipple), 24V output terminals
• Emergency: UL924 Emergency Operation, via separate normal power sensing device

• Generation 2 compatibility
• Mounting: 1/2" Knockout
• Humidity: 5 to 90% non-condensing
• On/Off and dimming control of a luminaire or group of luminaires
• 24VDC output to power up to 4 nLight AIR rCMS low voltage sensors or other low voltage devices
• Suitable for plug load control
• Power Monitoring with Current Measurement +/- 3% accuracy
• Programmable return to last state capability

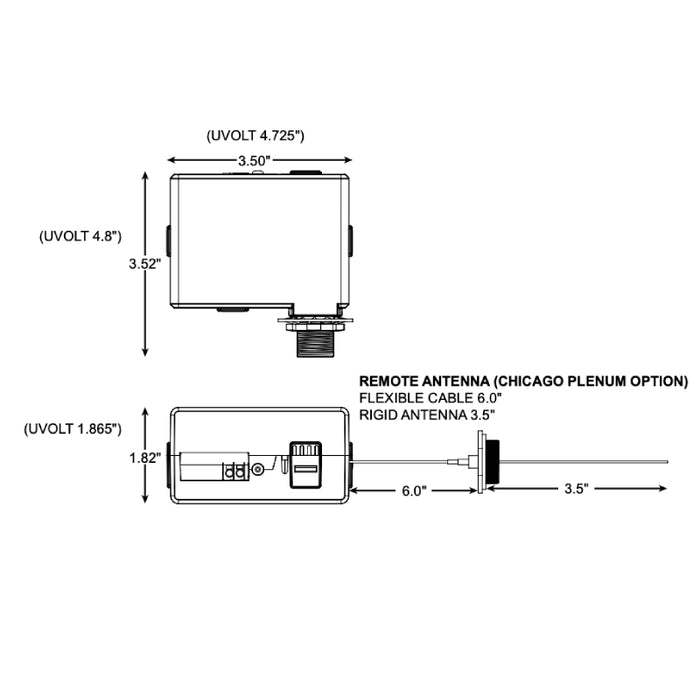

Dimensions

• Width: 3.5"
• Height: 3.52"
• Depth: 1.82"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus
• RoHS
