by NLIGHT

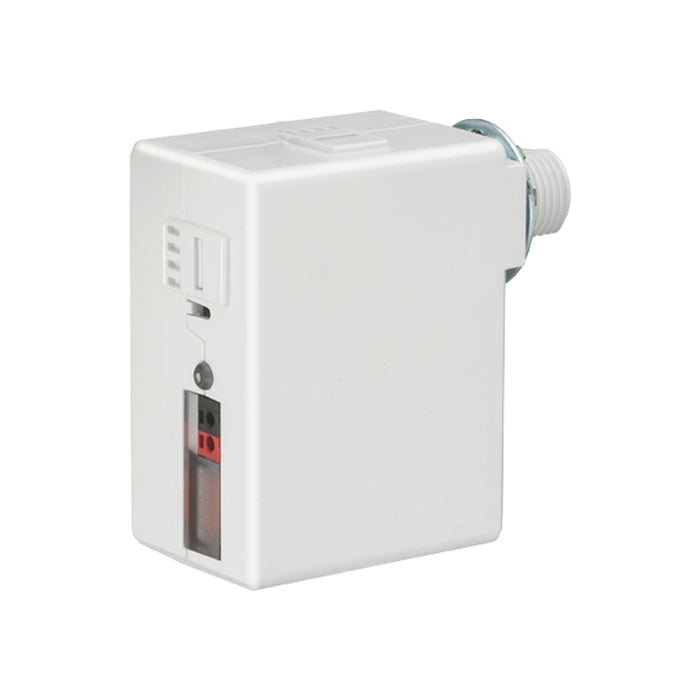

nLight RPP20 D 24V EFP G2 AIR Power/Relay Pack, 120-277V, 0-10V Dimming, External Fault Protection, 24V Output Terminals
SKU RPP20 D 24V EFP G2
Original price
$0.00
-
Original price
$0.00
Original price
$172.90
$172.90
-
$172.90
Current price
$172.90
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
nLight AIR rPP power packs are designed to offer flexible control for commercial and industrial lighting applications. The rPP consists of a relay, 0-10V dimming control, and a low voltage power supply output to power and wireless sensors. The rPP is capable of switching loads up to 20 A via a latching relay designed with robust inrush protection. Select power packs provide +24VDC low voltage output to power up to 4 nLight AIR mounted occupancy sensors and photocells. The nLight AIR rPP is designed for use as part of an nLight AIR group of devices or with the nLight ECLYPSE.
Features
- Color: White
- Voltage: 120-277V
-
External Fault Protection
- Dimming and Low Voltage Output: 0-10VDC dimming output (via chase nipple), 24V output terminals
- Generation 2 compatibility
- Mounting: 1/2" Knockout
- Humidity: 5 to 90% non-condensing
- On/Off and dimming control of a luminaire or group of luminaires
- 24VDC output to power up to 4 nLight AIR rCMS low voltage sensors or other low voltage devices
- Suitable for plug load control
- Power Monitoring with Current Measurement +/- 3% accuracy
- Programmable return to last state capability

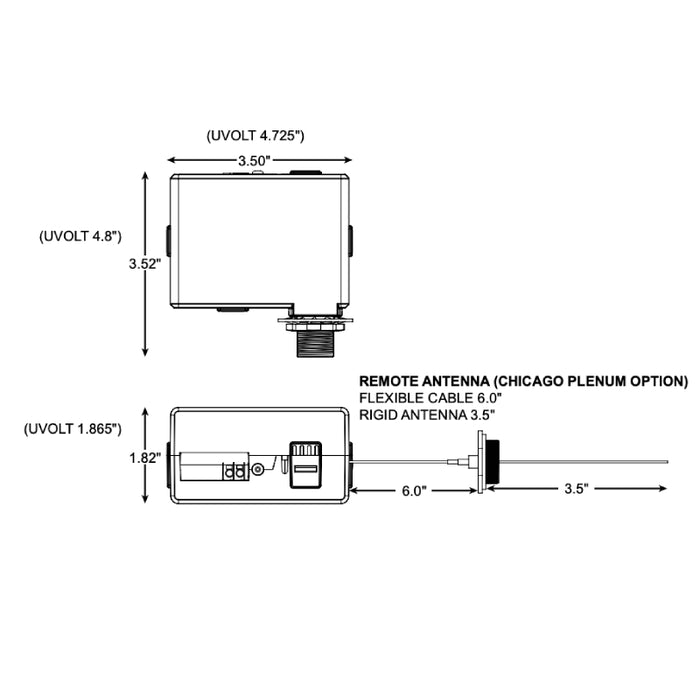

Dimensions
- Width: 3.5"
- Height: 3.52"
- Depth: 1.82"
Warranty
- 5-year limited warranty
Documents
Labels and Listings
- cULus
- RoHS
