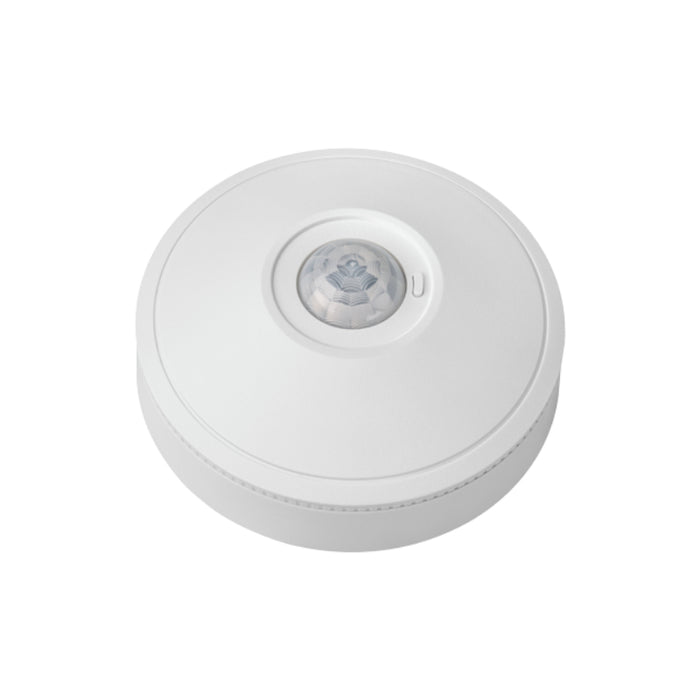

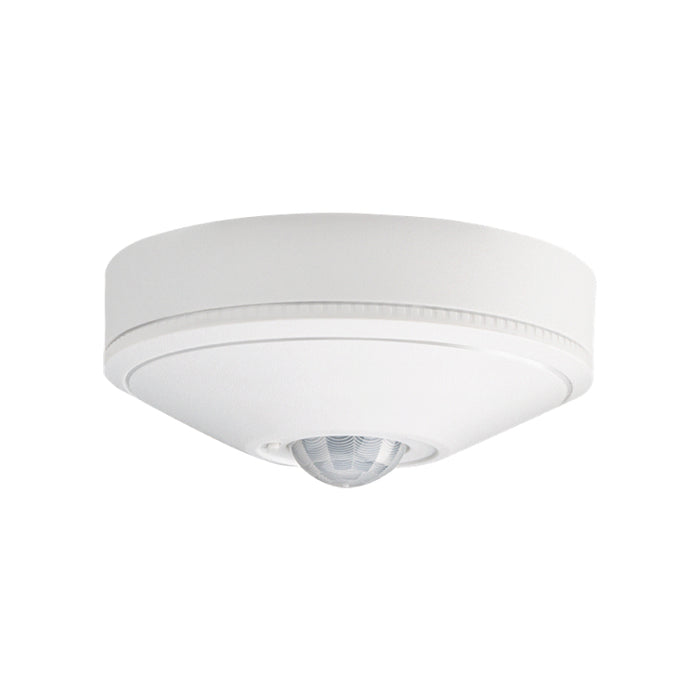

nLight RCMSB PDT 7 G2 AIR Occupancy and Daylight Sensors, Dual Tech PIR/ Microphonics, Mini-Low Bay 360° Lens, Surface Mount, Generation 2

The rCMSB family of wireless nLight occupancy and daylight sensors provides flexible sensing solutions for a wide range of ceiling-mounted applications. Designed for both ceiling and surface mounting, the rCMSB uses analog Passive Infrared (PIR) detection and offers multiple lens options to accommodate different mounting heights and coverage requirements.

Features

• Color: Matte White
• Mounting: Surface Mount
• Detection: Dual Tech PIR/ Microphonics
• Lens: Low Mount 360
• Generation 2 compatibility
• Wireless occupancy and daylight sensor designed for ceiling- and surface-mounted applications
• Integrated photosensor supporting automatic daylight harvesting and dimming control
• Battery-powered operation using three standard lithium AA batteries, rated for up to 10 years of use. Batteries ship included
• Wireless communication within an nLight system to control luminaires or power packs individually or in groups
• Settings are configured via Bluetooth using the CLAIRITY™+ mobile app, including time delays and daylight setpoints
• Long-distance wireless communication designed to support typical indoor lighting control applications, including open spaces and partitioned environments

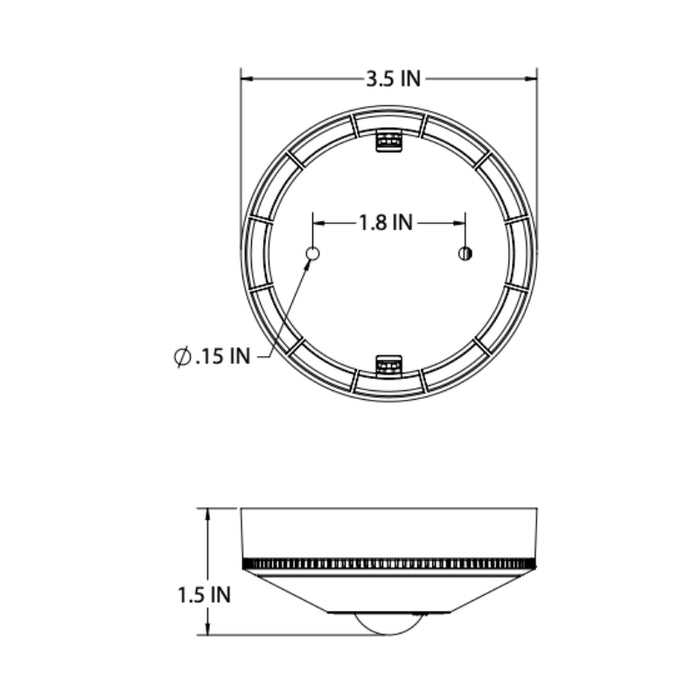

Dimensions

• Diameter: 3.5"
• Height: 1.5"

Warranty

• 5 Years Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus, ROHS Compliant
