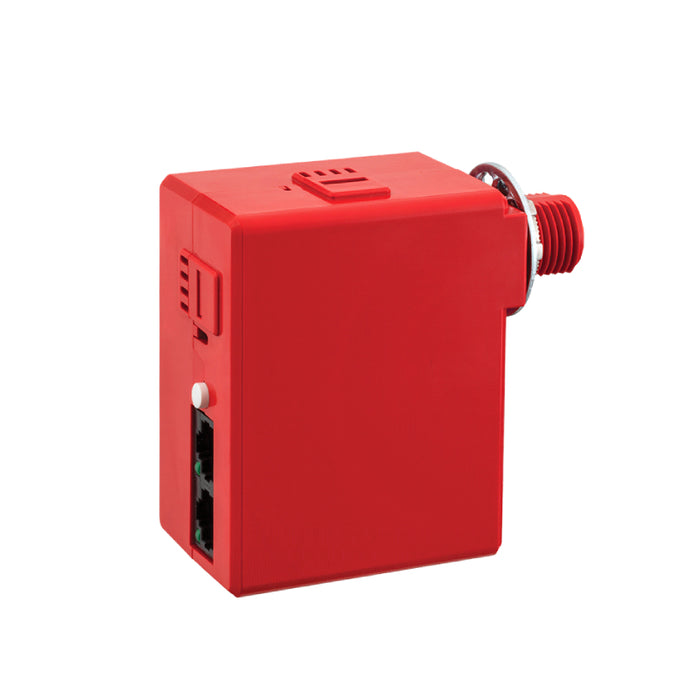

nLight NPP16 D ER EFP Power/Relay Pack, 120/277V, 0-10V Dimming, UL924 Emergency Operation, External Fault Protection, Auto On

The nLight nPP16 ER EFP family of power packs is the workhorse of an nLight system, delivering robust system performance and design versatility for commercial and industrial lighting control applications. The nPP16 ER EFP switches loads via an internal latching relay designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads.

Features

• Voltage: 120/277VAC
• Dimming: 0-10VDC Dimming output (via chase nipple)
• Emergency: UL924 Emergency Operation
• External Fault Protection
• Default Mode: Auto On (Switch Ch. 1)
• Temp/humidity: Standard
• Mounting: 1/2” Knockout (7/8" hole)
• Automatically Overrides Emergency Lights On To Full Brightness Upon Normal Power Loss

• Communicates w/ nLight Network
• Self-Contained Relay Switches Line Voltage Load
• Remotely Configurable/Upgradeable
• Test/programming button
• Configurable Relay Logic
• Extended Chase Nipple
• Plenum rated
• Includes fuse integrated to relay wirelead for protection from load faults
• Meets NEMA410 ratings for LED/electronic ballast inrush
• Programmable return to last state capability

Dimensions

• Width: 2.53"
• Height: 3.38"
• Depth: 1.83"

Warranty

• 5-year limited warranty
