by nLight
nLight NECY MVOLT BAC ADR ENC NW GFXK Eclypse System Controller, 120-277V, BACnet, OpenADR, NEMA Type 1 Metal Enclosure, No WiFi Adapter, nGWY2 GFX and PS 150 Power Supply
SKU NECY MVOLT BAC ADR ENC NW GFXK
Original price
$0.00
-
Original price
$0.00
Original price
$4,332.90
$4,332.90
-
$4,332.90
Current price
$4,332.90
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW

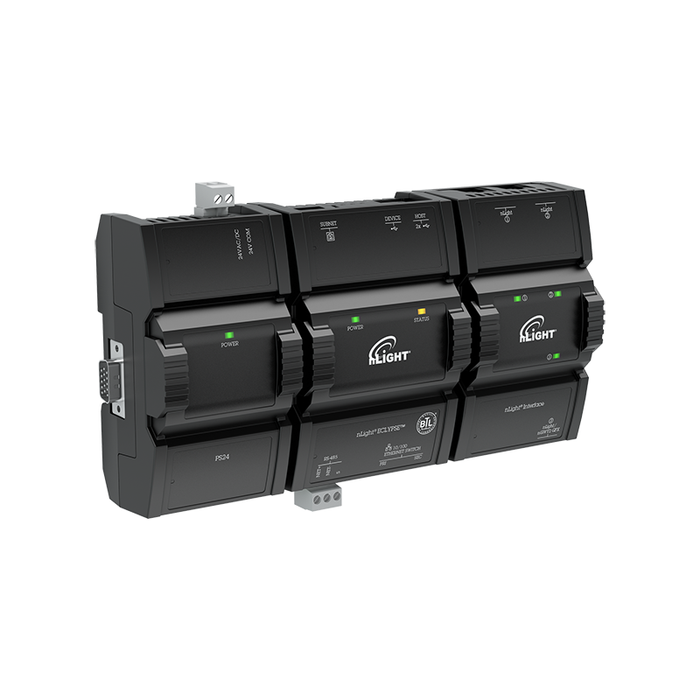

The nLight Eclypse system controller connects an nLight lighting network to an IP network, supporting remote connectivity, time-based management, integration with building management, integration with demand response, and more.
Features
- Voltage: 120-277VAC
- BACnet: BACnet/IP & MS/TP Enabled
- AutoDR: Open ADR VEN
- Visualization Software: Not Enabled
- Cellular Modem: No Cellular Modem

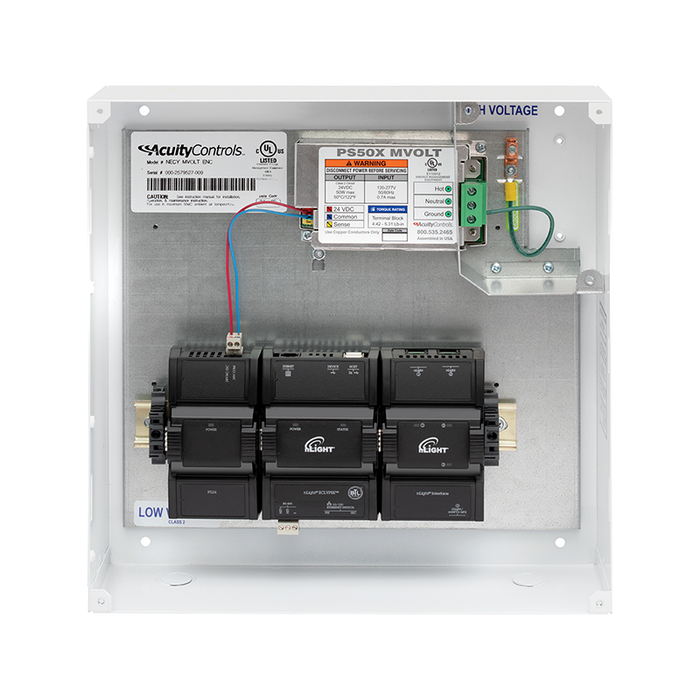

- NEMA Type 1 metal enclosure
- No Wi-FI Adapter Included
- Touchscreen interface (model nGWY2 GFX, mounted separately), PS 150 power supply, CAT5 cable
- Operating System: Eclypse Facilities operating system
- Communicates over IP, allowing the system controller and connected lighting controls devices to be accessed and configured across a local area network
- Each system controller supports up to 750 nLight and nLight AIR devices
- Additional controllers can connect and scale a system of lighting controls to a maximum of 20,000 devices
Dimensions
- Microprocessor: 4.74" H x 3.57" W x 2.31" D
- nLight Eclypse Assembly: 4.74" H x 14.76" W x 2.43" D
Warranty
- 5 Years Limited Warranty
Documents
Labels and Listings
- cULus Listed
- BAA – Buy America(n) Act
