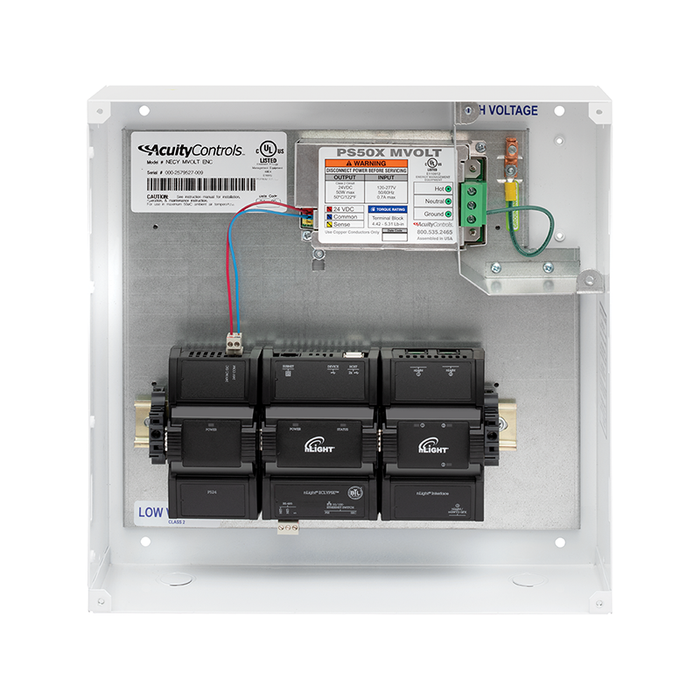

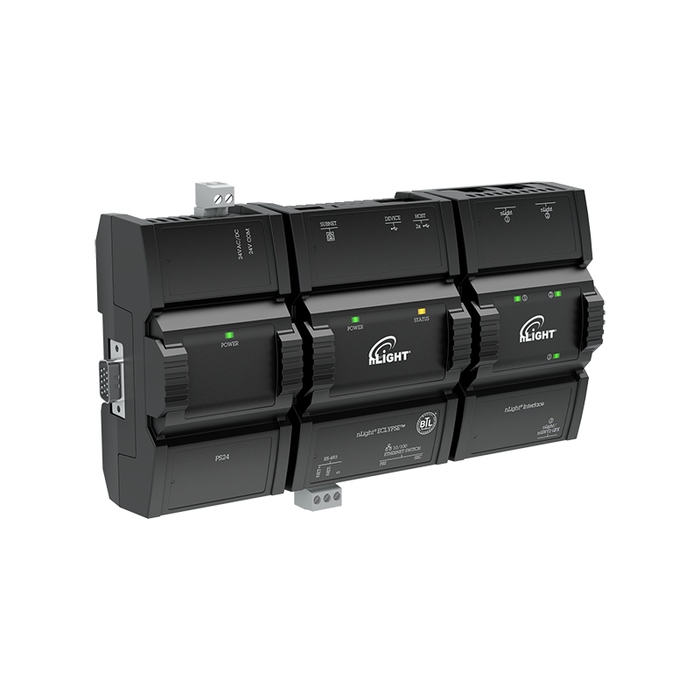

nLight NECY MVOLT BAC ADR ENC NW AIR Eclypse System Controller, 120-277V, BACnet, OpenADR, NEMA Type 1 Metal Enclosure, No WiFi Adapter, Includes NECYD NLTAIR G2

The nLight Eclypse system controller connects an nLight lighting network to an IP network, supporting remote connectivity, time-based management, integration with building management, integration with demand response, and more.

Features

• Voltage: 120-277VAC
• BACnet: BACnet/IP & MS/TP Enabled
• AutoDR: Open ADR VEN
• Visualization Software: Not Enabled
• Cellular Modem: No Cellular Modem
• NEMA Type 1 metal enclosure
• No Wi-FI Adapter Included
• Includes NECYD NLTAIR G2
• AIR option supports 150 devices. RJ45 ports for connecting nLight wired devices are not available with the AIR option
• Operating System: Eclypse Facilities operating system
• Communicates over IP, allowing the system controller and connected lighting controls devices to be accessed and configured across a local area network
• Each system controller supports up to 750 nLight and nLight AIR devices
• Additional controllers can connect and scale a system of lighting controls to a maximum of 20,000 devices

Dimensions

• Microprocessor: 4.74" H x 3.57" W x 2.31" D
• nLight Eclypse Assembly: 4.74" H x 14.76" W x 2.43" D

Warranty

• 5 Years Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed
• BAA – Buy America(n) Act
