by nLight

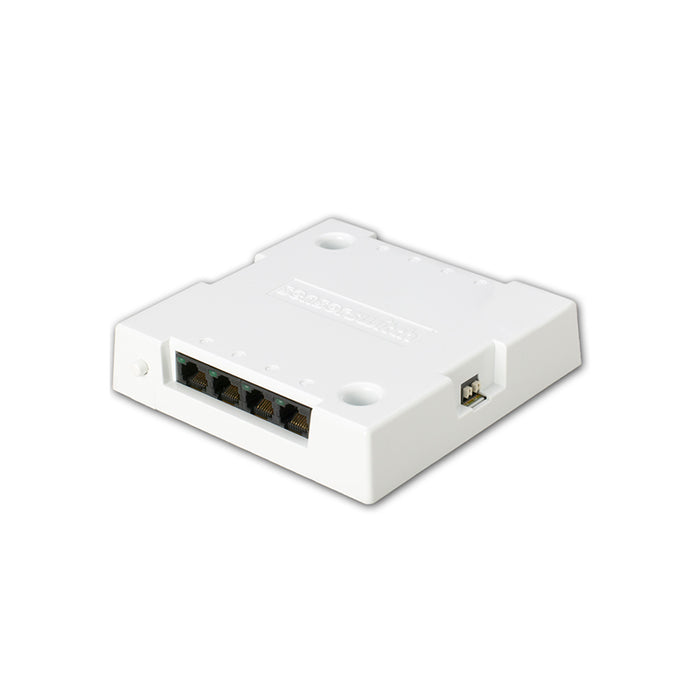

nLight NBRG 8 KIT 8-Port Bridge Kit with Power Supply
SKU NBRG 8 KIT
Original price
$0.00
-
Original price
$0.00
Original price
$487.98
$487.98
-
$487.98
Current price
$487.98
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The nLight 8-Port Bridge increases the number of lighting control zones in an nLight system. This ability stems from the fact that each Bridge has 8 RJ-45 ports into which zones of daisy-chained nLight-enabled devices can connect. The Bridge also is an integral component of the communication backbone in an nLight network.
Features
- Color: White
- Voltage: 120/277VAC
- Temp/Humidity: Standard
- Communicates with nLight Network
- Remotely configurable/upgradeable
- Push-button programmable
- Green LED indicators for each Port
- Redistributes bus power between ports
- Supports up to 128 devices per port
Dimensions
- Width: 4.9"
- Height: 4.9"
- Depth: 1.05"
Warranty
- 5 Years Limited Warranty
Documents
Labels and Listings
- RoHS
- Plenum UL2043
- System Component to aid in compliance with Title 24, ASHRAE 90.1, IECC
