by nLight

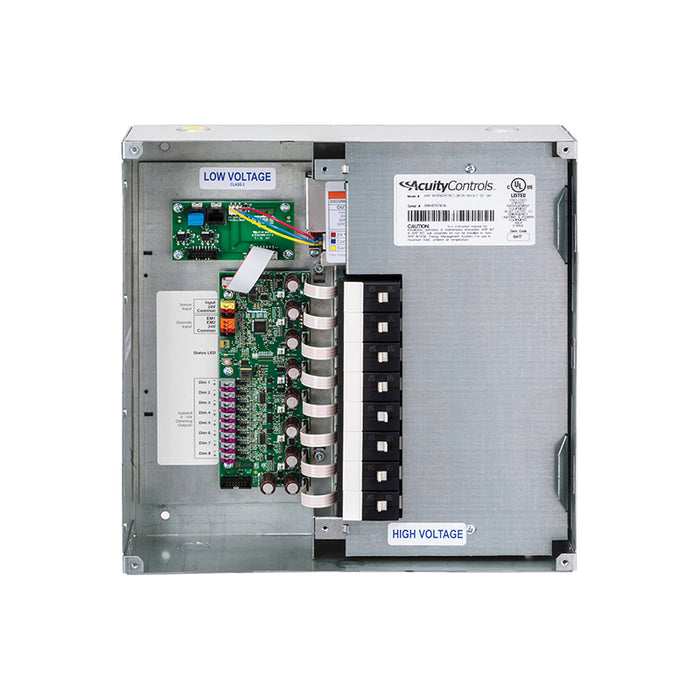

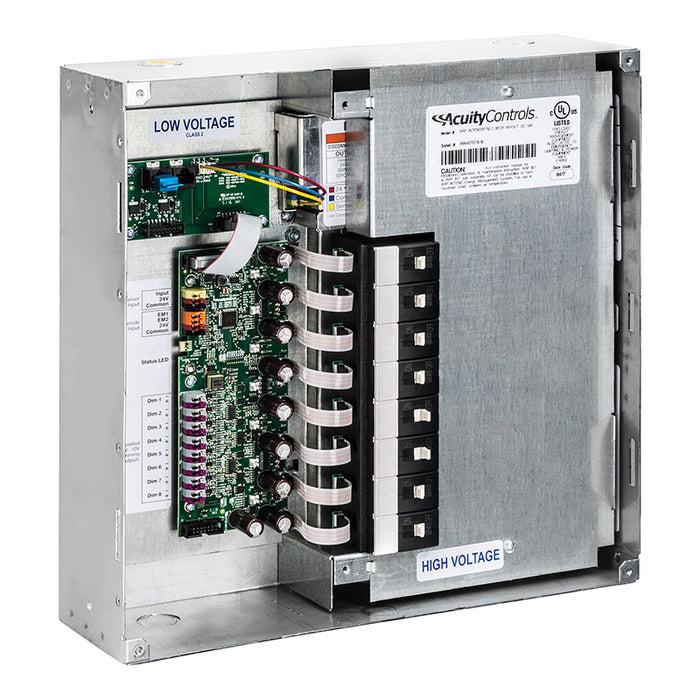

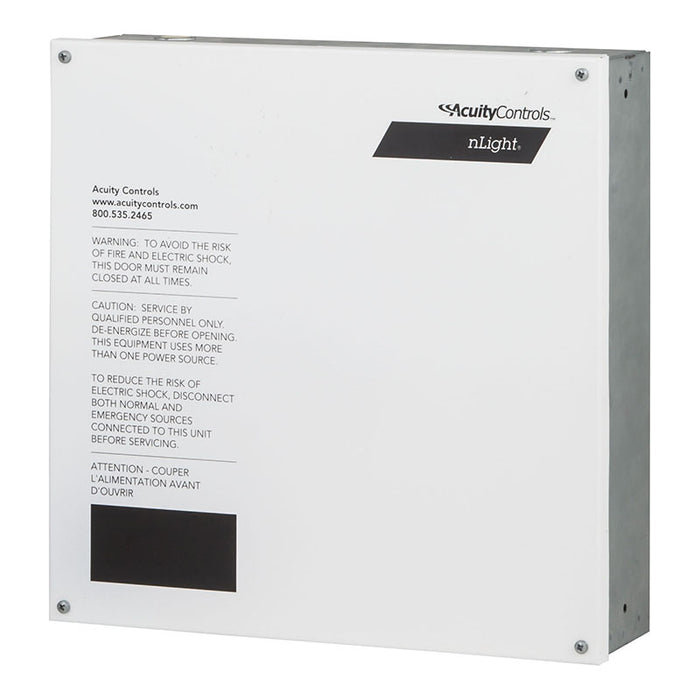

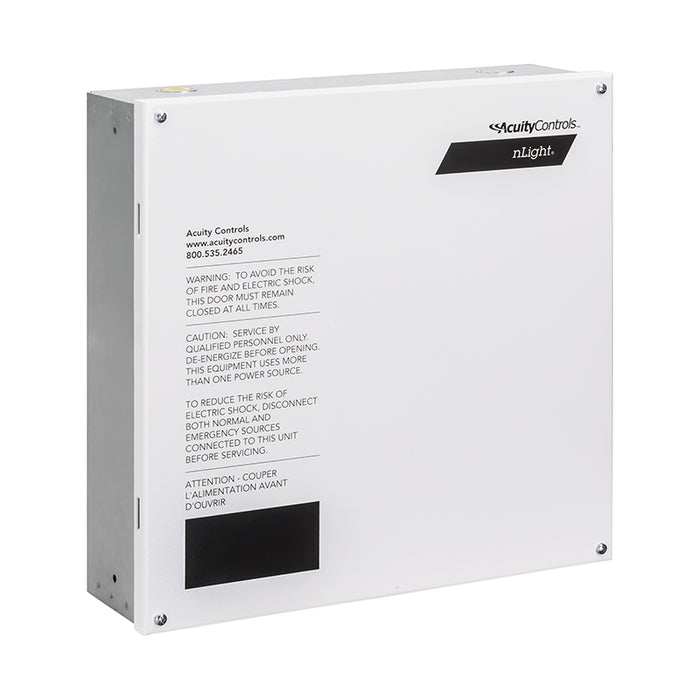

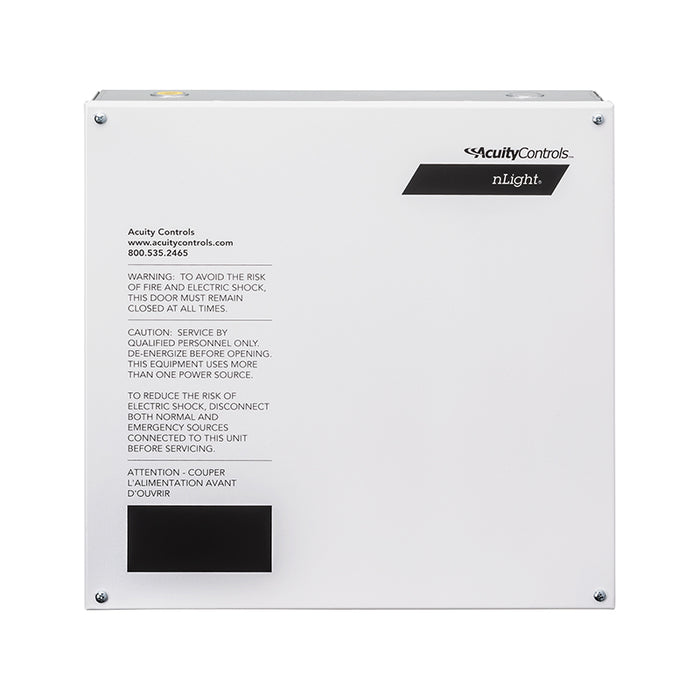

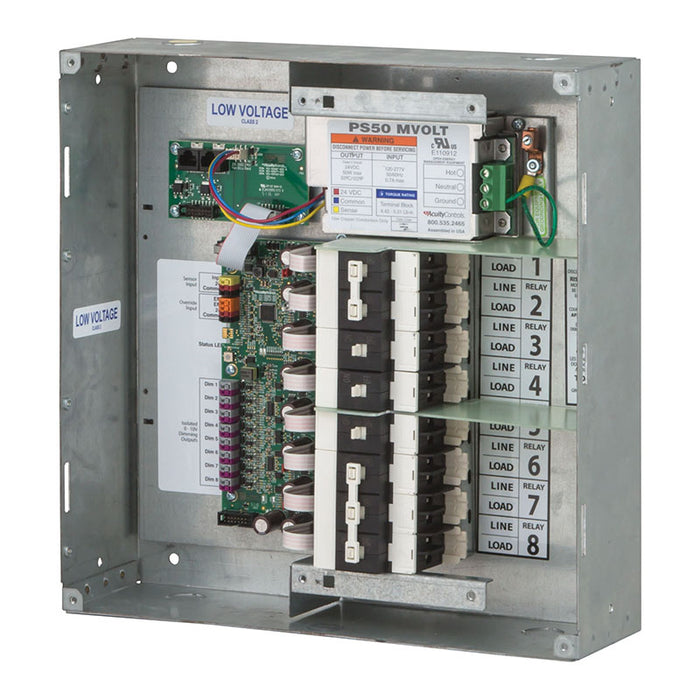

nLight ARP INTENC08 NLT 8FCR MVOLT 1VB SC SM Acuity Relay Panel, Include INT and ENC, 8-Relay Enclosure, 8-Field Configurable Relays, 120-277V, 1 Voltage Barrier, Screw Cover, Surface Mount
SKU ARP INTENC08 NLT 8FCR MVOLT 1VB SC SM
Original price
$0.00
-
Original price
$0.00
Original price
$1,659.00
$1,659.00
-
$2,332.16
Current price
$1,659.00
Availability:
In stock
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The nLight Relay Panel family delivers cost-effective 0-10V dimming and switching with the optional Field Configurable Relay for your building design needs.
Features
- Panel Size: 8-Relay Enclosure
- Relay Quantity: 8-Field Configurable Relays
- Operating Voltage: 120-277V
- Voltage Barrier: 1 Voltage Barrier
- Door Type: Screw Cover
- Mounting: Surface Mount

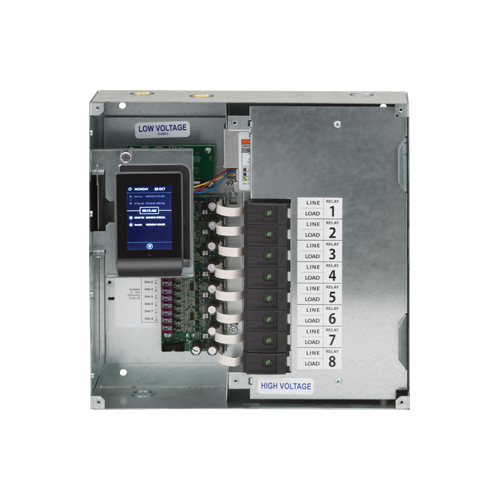

- Clock Option: No Clock, Digital Time Clock
Dimensions
- Width: 14.41"
- Height: 14.41"
- Depth: 4.05"
Warranty
- 5 Years Limited Warranty
Documents
Labels and Listings
- UL 924 panel listing
- Buy American Act
- Build America Buy America
