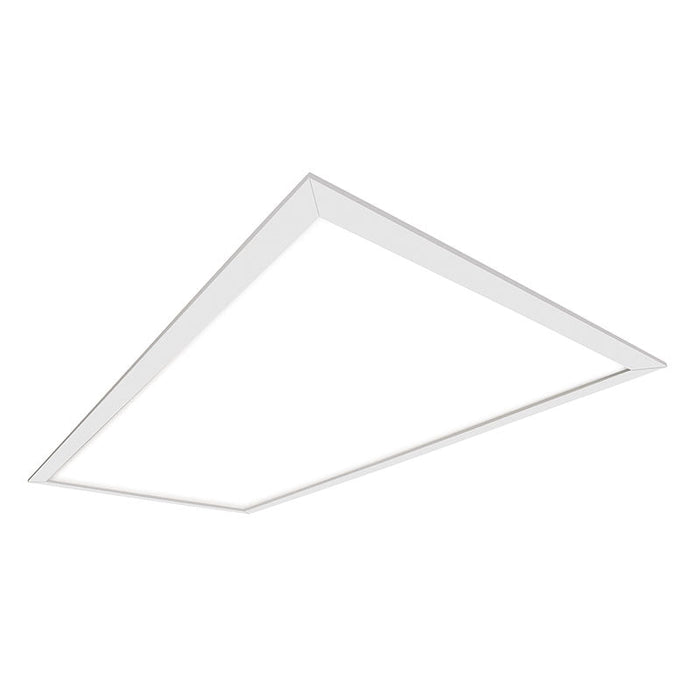

The CGT Flat Panel LED series is the contractor go-to panel providing customers an affordable, low glare panel that fits in shallow plenums with room to spare. It's back-lit, durable design provides immediate opportunities to replace fluorescent fixtures with a LED solution. The CGT Flat Panel LED is an excellent lighting solution for commercial office spaces, schools, healthcare and retail merchandising areas.

Features

• Size: 2 x 4
• Voltage: 120/277 V
• Wattage: 29W / 42W / 51W
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumen: Low/Medium/High Selectable (4200 - 7200)
• CRI: 80
• Standard UNV 120 - 277V driver with 0-10V dimming, 10% standard
• Selectable switches are located on top of the junction box, for quick adjustment before and after installation
• Acrylic micro-optics provide uniform illumination across the entire lens
• Extruded aluminum frame tightly seals to the housing for optimal performance and aesthetics
• Minimum fixture height ideal for shallow plenum

Dimensions

• Length: 47.75"
• Width: 23.75"
• Height: 2.13"

Warranty

• 5-year warranty

Documents

• Spec Sheet

Labels and Listings

• cULus listed for 25C ambient environments, indoor applications
• IC rated for direct insulation contact
• UL damp location listed
• Qualifies as State of California Title 24 high efficiency luminaire
• FCC part 15 class B (residential) compliant
• DesignLights Consortium Qualified and classified for DLC Standard
• Meets IP5X rating from the room side with no modification needed
