Lumination PCL 2x4 25W/35W/45W LED Volumetric Troffer, 3500K/4000K/5000K Selectable, 3750/5000/6000 Lumens, 120-347V

The Lumination PCL is an LED contractor grade volumetric, center lens luminaire with selectable lumens and CCT.

Features

• Finish: White
• Wattage: 25W/35W/45W Selectable
• Voltage: 120-347V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens: 3750 / 5000 / 6000 Selectable
• CRI: 80+
• Dimming: Standard 0-10V, 1% Dim to Off
• Typical Mounting: Fits standard T-Bar grid (drop ceilings)

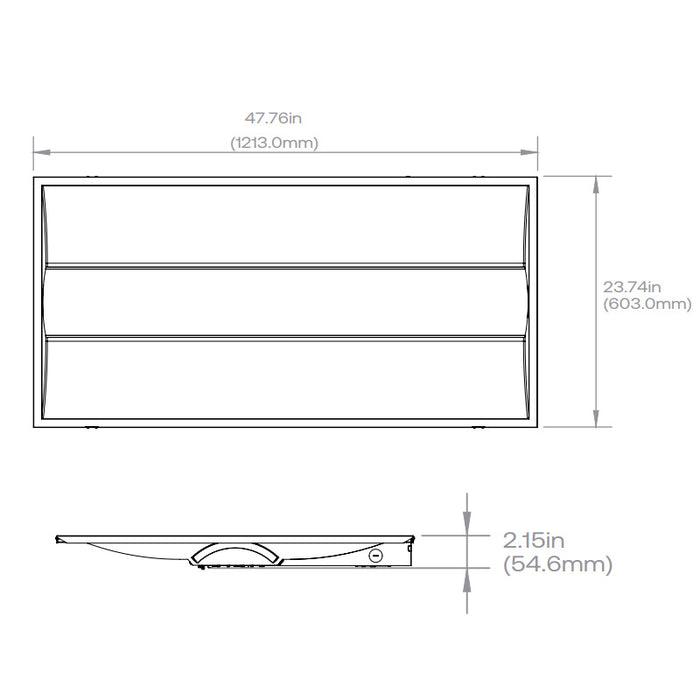

Dimensions

• Length: 47.76"
• Width: 23.74"
• Height: 2.15"
• Weight: 11.7 lbs

Estimated Life

• L80 @ 60,000 hours

Warranty

• 5 year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• Insulation Contact: Type IC Rated
• Damp Location rated
• CSA Certified
• Please refer to the DLC QPL website for the latest and most complete information: http://www.designlights.org/QPL
