by Lumark AP

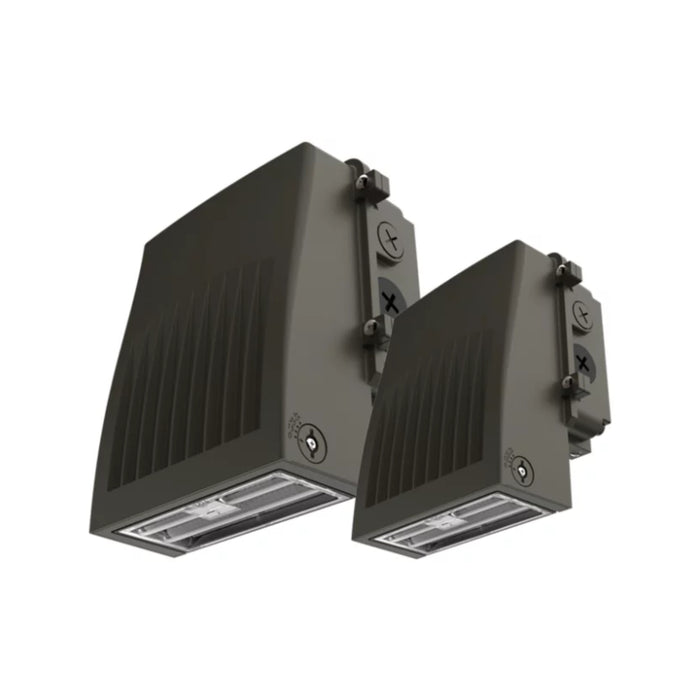

Lumark AWPF 20W/25W/28W LED Small Fine Wall Pack, 3CCT Selectable, 2800-4000 Lumens, 120-347V
SKU AWPF28S
Original price
$0.00
-
Original price
$0.00
Original price
$145.00
$145.00
-
$145.00
Current price
$145.00
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Lumark AP AWP Architectural Wall Pack delivers durable, energy-efficient illumination with selectable CCT and lumen options to simplify stocking and installation. Constructed with a die-cast aluminum housing and removable door, it features a polycarbonate lens, IP65-rated optical chamber, and UL wet-location listing for long-term reliability. The 0-10 V dimming driver, field-adjustable photocontrol, and optional battery-pack solution provide maximum flexibility. The Lumark AP AWP is ideal for outdoor areas, parking lots, walkways, and building perimeters.
Features
- Finish: Bronze
- Watts: 20W/25W/28W
- Voltage: 120-347V
- Color Temperature: 3000K / 4000K / 5000K Selectable
- Lumen: 2800-4000
- CRI: 70
- 0-10V dimming driver standard
- Tiltable Lens: 0-45º forward throw
- Controls: Selectable Dusk-to Dawn via Button-type photocontrol
- Heat and impact resistant PC lens
- Die-cast aluminum housing with hinged, removable die-cast aluminum door
- Four 1/2” threaded conduit entry points
- Removable mounting plate and hangar for easy installation
- Cast-in angle indicators

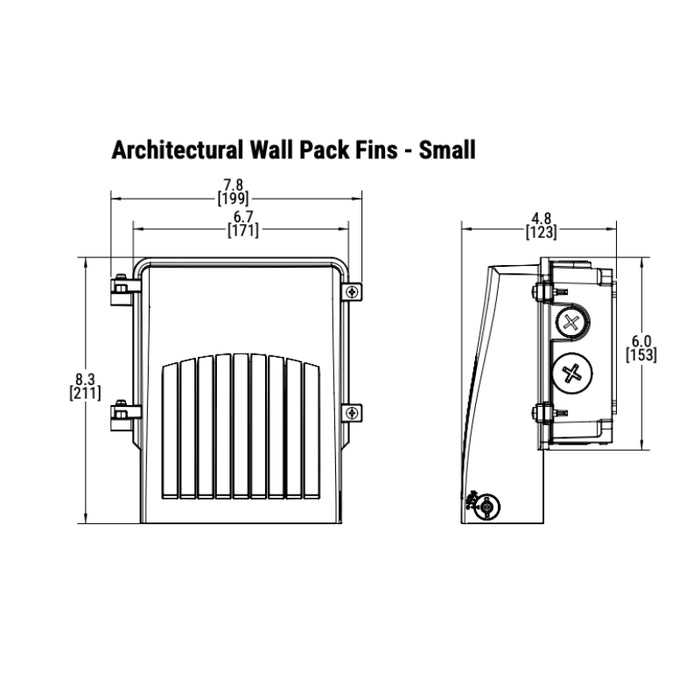

Dimensions
- Width: 7.8"
- Height: 8.3"
- Extension: 4.8"
Warranty
- 5-year warranty
