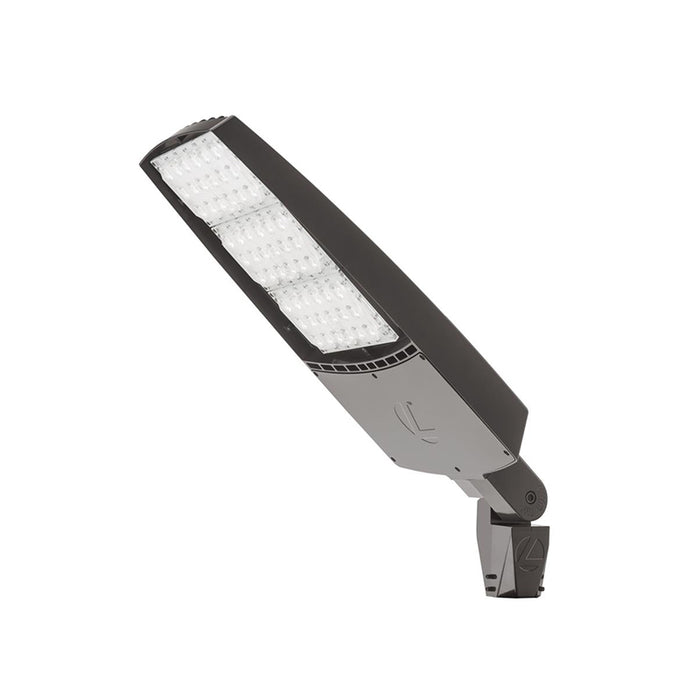

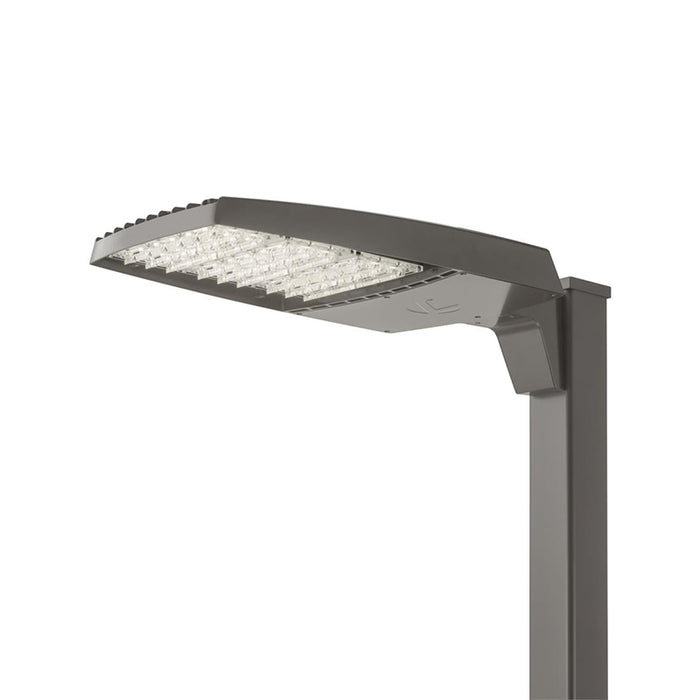

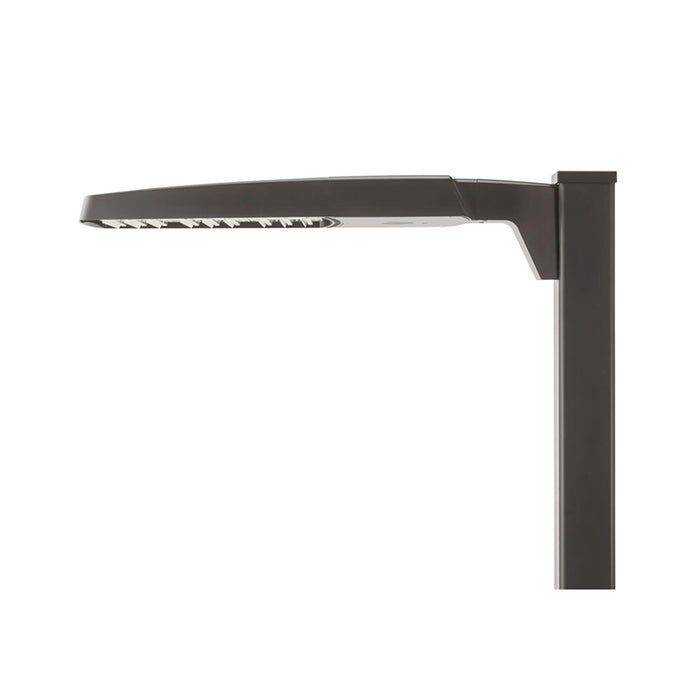

The RSX is specifically designed to provide one-for-one solutions for replacing existing metal halide or high pressure sodium lighting. With up to 41,000 lumens, the RSX3 can replace 1000W metal halide luminaires, saving up to 75% on energy costs and avoid up to eight expensive lamp changes. Coupled with nLight AIR wireless controls, the RSX family provides enhanced end-user experiences and unmatched energy savings.

Features

• Finish: Dark Bronze, Black, Natural Aluminum, White
• Wattage: 222W, 266W, 312W

• Voltage: 120-277V
• Color Temperature: 3000K, 4000K, 5000K
• Lumens: up to 41000
• CRI: 70
• Distribution: Type 2 Wide, Type 3 Wide, Type 4 Wide

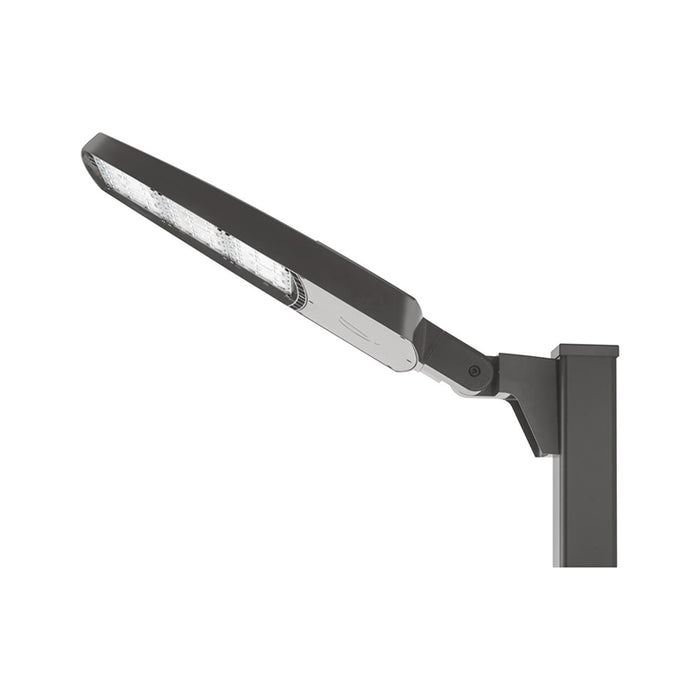

• Mounting: Square pole mounting, Round pole mounting

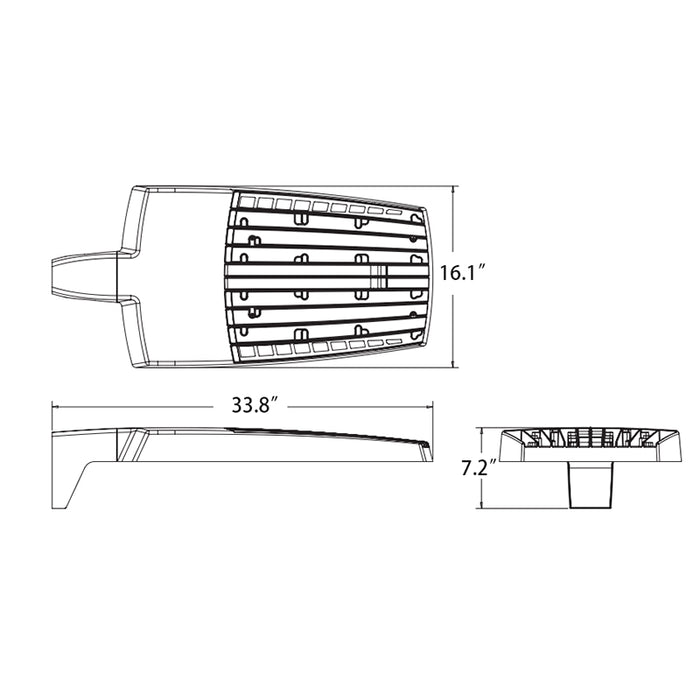

Dimensions

• Length: 33.8"
• Width: 16.1"
• Height: 7.2"
• Weight: 48 lbs

Estimated Life

• Rated for 100,000 hours

Warranty

• 5-Year Limited Warranty

Document

• Spec Sheet
• Instruction Sheet
• Photometry & Revit (BIM)
• RSX3 LED Area Luminaire .IES
• RSX3 LED Area Luminaire BIM
