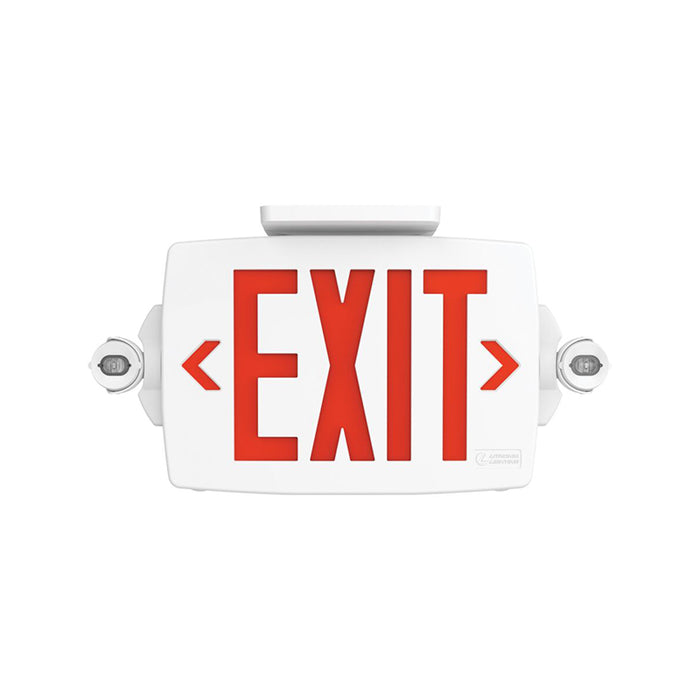

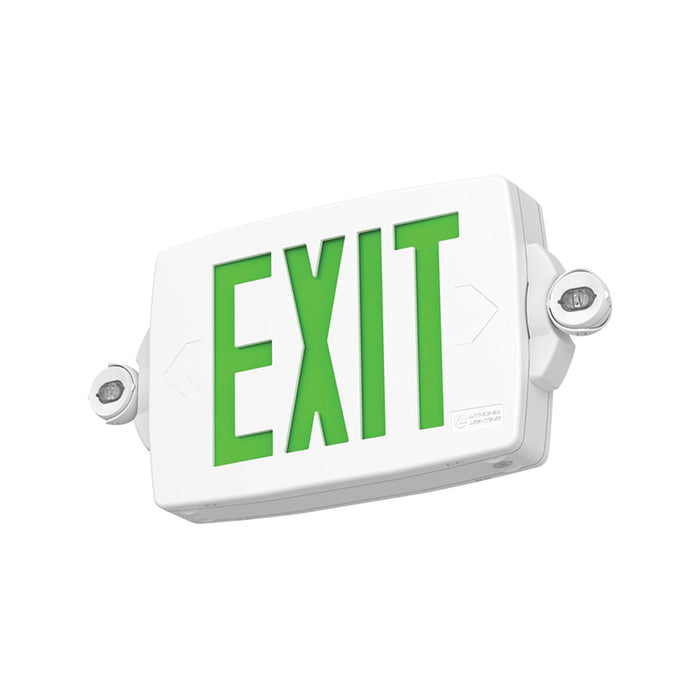

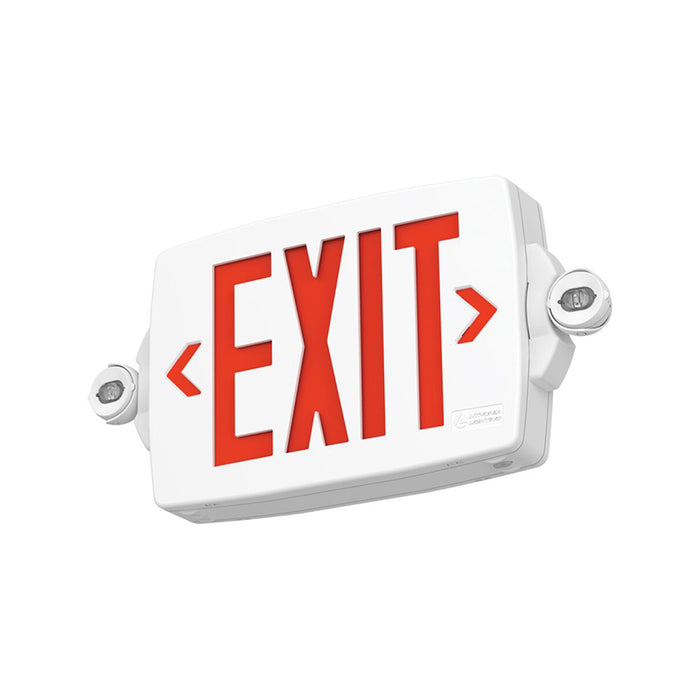

Lithonia LHQM Quantum LED Exit Combo, Stencil Face, White Housing, Red/Green Switchable Letter, 120-277V, Self Diagnostic

The LHQM Exit Combo is great for applications requiring both an exit sign and emergency unit equipment in one product. The LHQM provides a sleek, modern and uniform aesthetic for any general purpose life safety application.

Features

• Face Type: Stencil
• Housing Color: White housing with White faceplate
• Number of faces: Single Face/Double Face

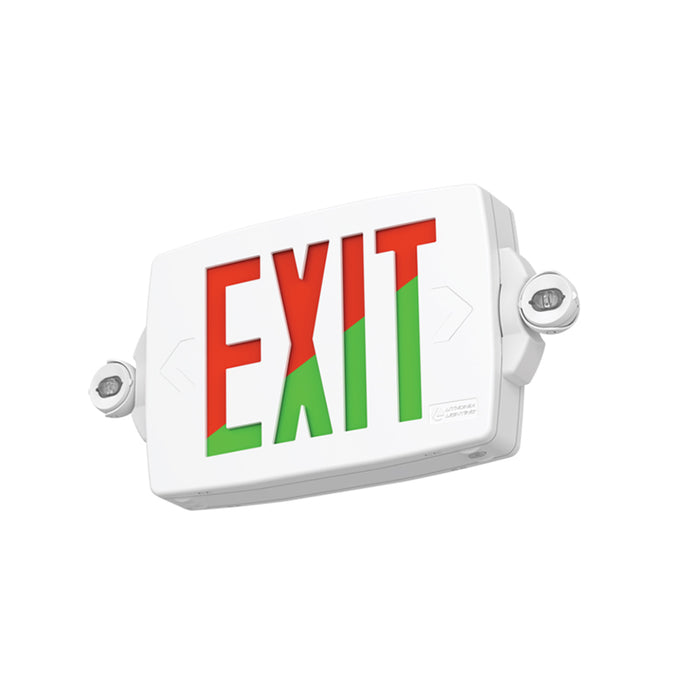

• Letter Color: Red/Green Switchable
• Wattage: 3.5W-4.5W
• Voltage: 120-277V
• Self-diagnostics
• Mounting canopy provides both top and back mount capability. Canopy design uses cam locking pin to secure sign to canopy with no visible hardware seen from the floor

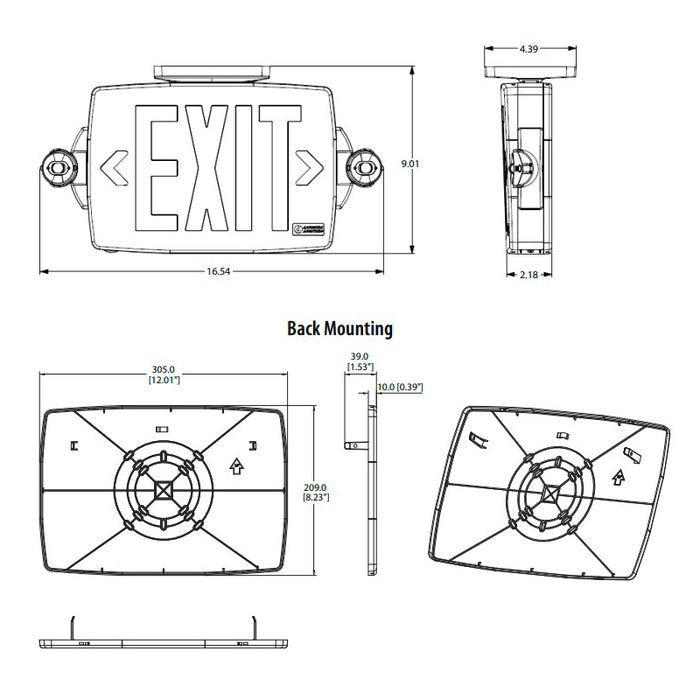

Dimensions

• Width: 16.54"
• Height: 9.01"
• Depth: 2.18"
• Weight: 3.3 lbs

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Listed damp location
• Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), California Energy Commission Title 20
• NOM certified
