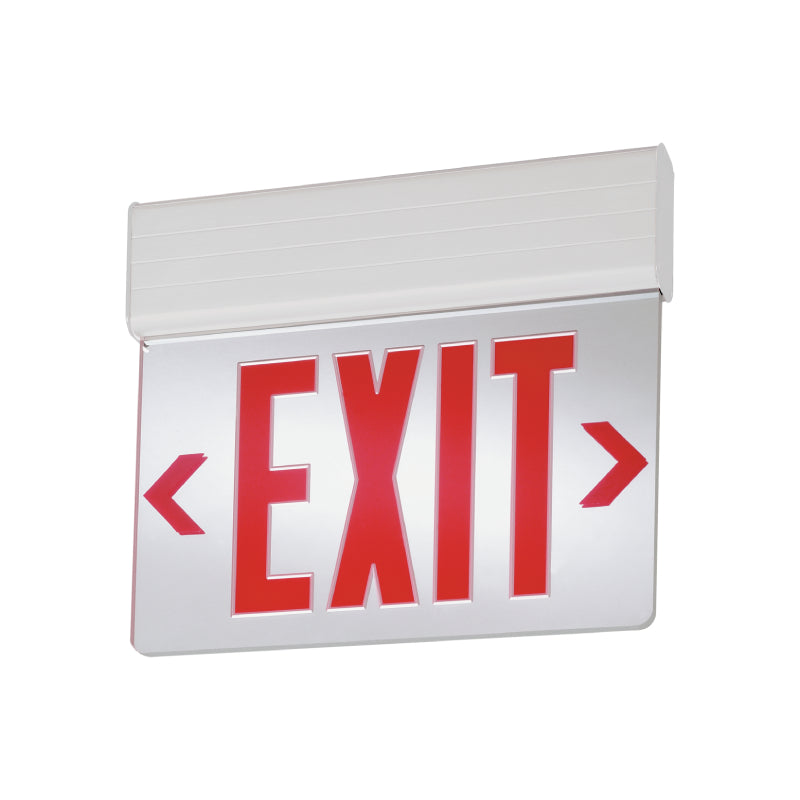

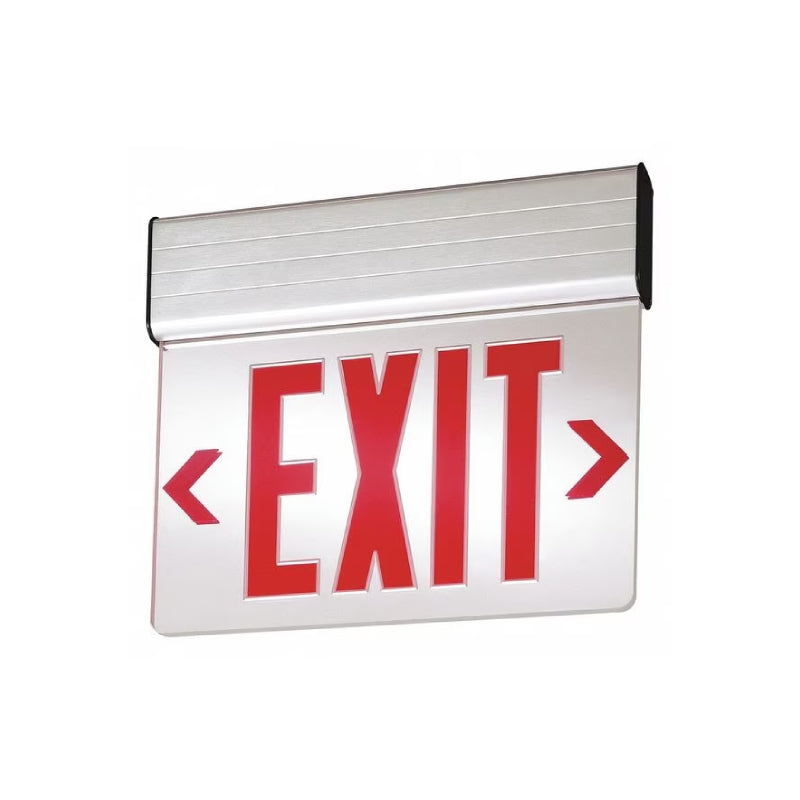

Lithonia EDG Edge-Lit LED Exit Sign with Battery Backup, Single Face, Self Diagnostics

LithoniaSKU: EDG W 1 RW EL SD

Housing Color: White
Letter Color: Red on White
In stock


Suitable for applications requiring attractive edge-lit exit signage, universal installation and low energy consumption.


  • Mounting: Surface mount
  • Housing Color: White, Brushed Aluminum
  • Number of faces: Single face
  • Letter Color: Red on white, Green on white, Red on clear, Green on clear
  • Wattage: 2.6W-2.8W
  • Voltage: 120/277V
  • Operation: Nickel-cadmium battery

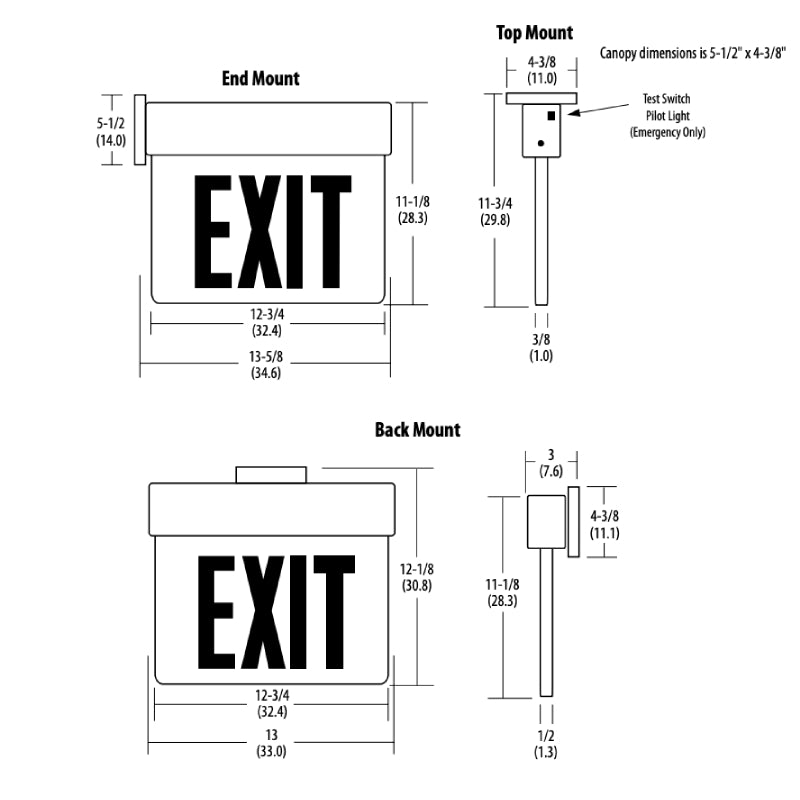

  • Universal mounting canopy for top or end mount. Back mount standard for single face only. Canopy provided
  • Battery: Sealed, maintenance free nickel-cadmium battery delivers 90 minutes capacity to emergency lamps. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
  • Self-diagnostic testing for 30 seconds every 30 days and 90 minutes annually. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition


  • Width: 12.75"
  • Height: 11.13"
  • Depth: 0.38"
  • Weight: 4 lbs


    • 5-year limited warranty
