Lithonia ECRM LED Running Man Emergency Light/Exit Combo, Self-diagnostics

Combination emergency lighting unit and exit. Suitable for illuminating the path of egress and for marking the means of egress in accordance with NFPA 101.

Features

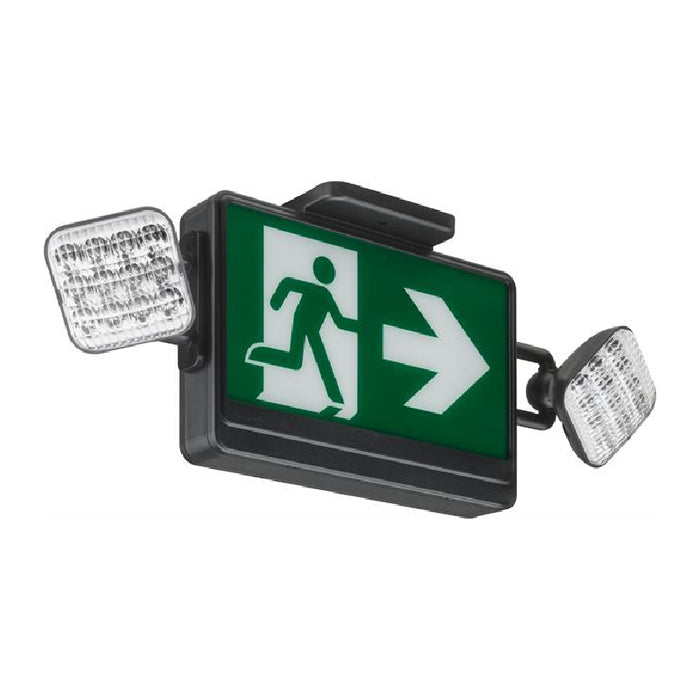

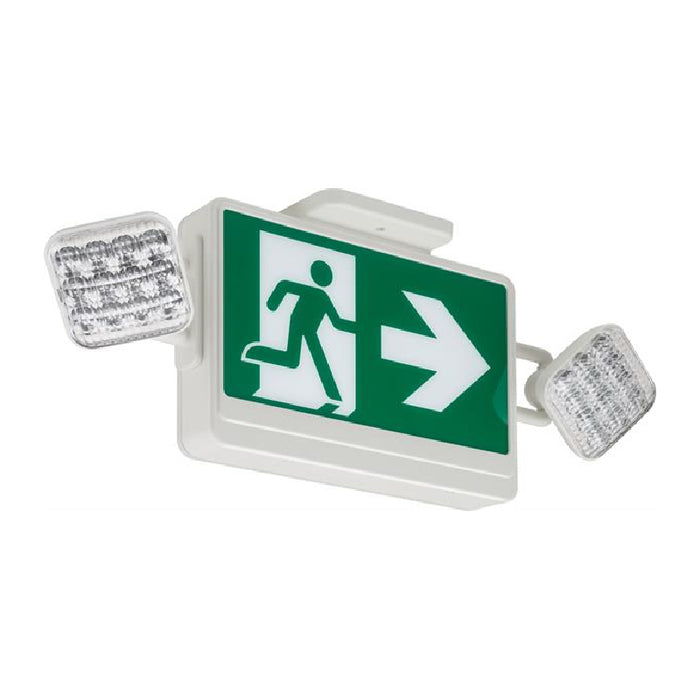

• Housing Color: Ivory White, Black
• Max Wattage: 4.4W
• Voltage: 120/347V dual voltage

• Mounting: Universal (top-, end-, or back-) mounting. Easily removed mounting knockouts. J-box pattern on back panel. Housing snaps to canopy with four positive-locking tabs

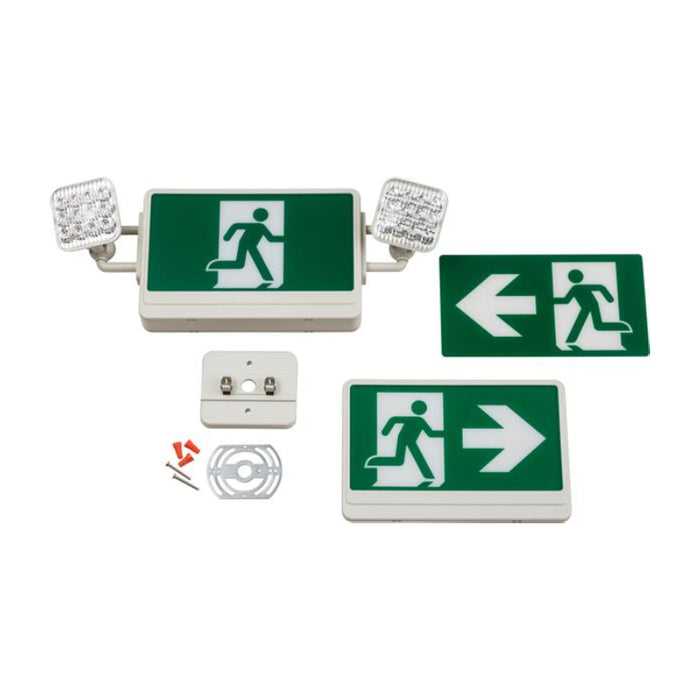

• For Single or double face applications, ships standard with 2 right/left arrow (reversible) face plates, 2pictogram only face plates, and a solid faceplate

• Self-diagnostics: Performs monthly 30 second, bi-monthly 30 minute and annual 90 minute testing with multi-status diagnostic functions

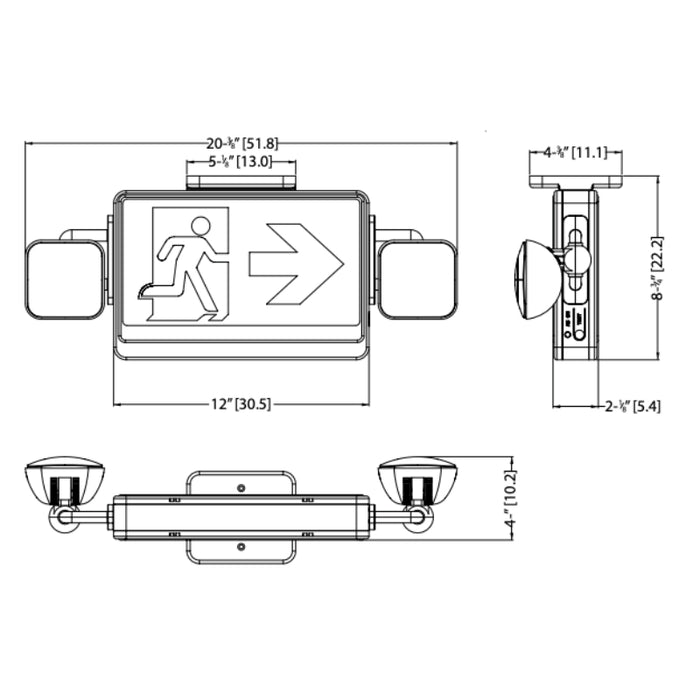

Dimensions

• Length: 20.38"
• Height: 8.75"
• Depth: 2.13"
• Weight: 3.5 lbs

Warranty

• 5-year limited warranty

Document

• Spec Sheet
• Instruction Sheet
