Lithonia DSXSC D-Series 74W LED Surface Canopy

SKU DSXSC LED 20C 1000 50K T5M MVOLT SRM DWHXD
Original price $499.20 - Original price $499.20
Original price
$499.20
$499.20 - $499.20
Current price $499.20
Availability:
In stock

Estimated Shipping Widget will be displayed here! (with custom color)

OVERVIEW

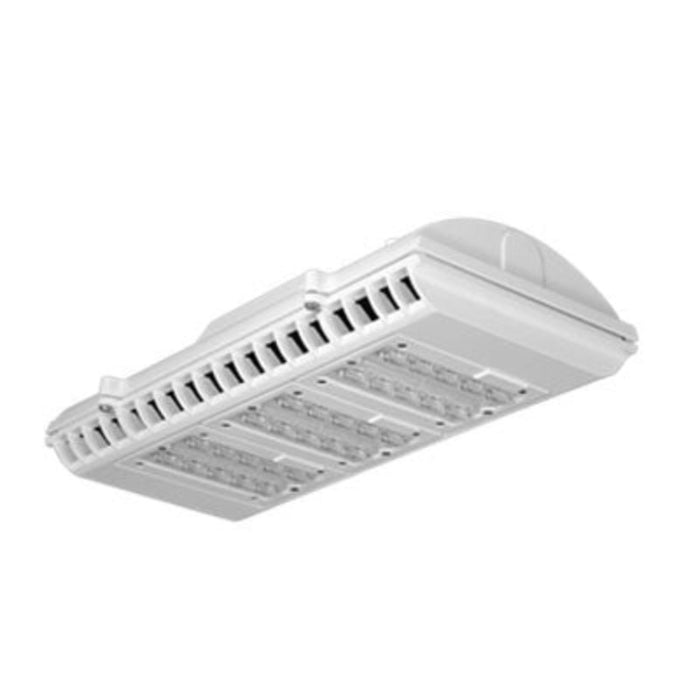

The D-Series LED Surface Canopy luminaire is ideal for covered walkways or drive-thrus, semicovered outdoor aisles, and walk-in coolers and freezers.

Features

  • Finish: White
  • Wattage: 74W
  • Number of LEDs: 20 LEDs (two engines)
  • Drive Current: 1000 mA (1 A)
  • Color Temperature: 5000K
  • Distribution: Type V, Medium
  • Mounting: Surface Mount
  • Lumens: 6623
  • CRI: 65
  • Expected service life of over 100,000 hours (20 years of nighttime operation)
  • Intended for canopy lighting in commercial, industrial and institutional applications with mounting heights of 8 ft - 15 ft
  • Mounts to a 4x4 recessed or surface mount outlet box using a quick mount kit (included). Supply leads are 12" length as standard.

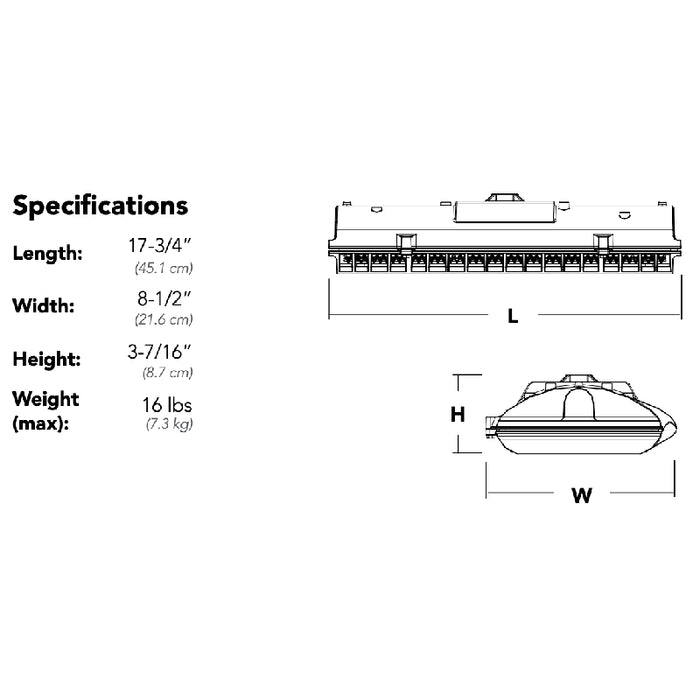

    Dimensions

    • Length: 17-3/4"
    • Width: 8-1/2"
    • Height: 3-7/16"

    Lamping

    • 74W 20 LEDs (5000K) - Included

    Documents
