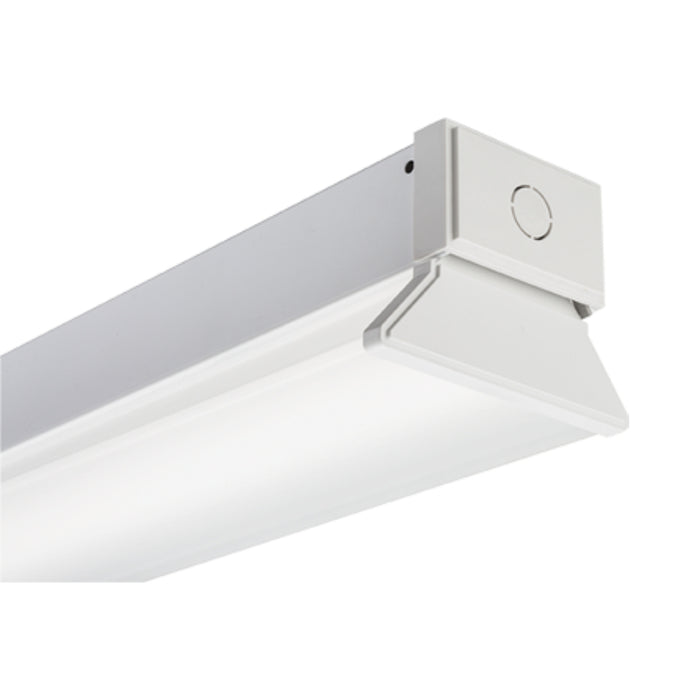

Lithonia CLX Series LED Linear Strip Light, Wide Diffuse, 120-277V, 4000K

The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications.

Features

• Size: 24", 36", 48", 96"
• Finish: White
• Wattage/Lumens:
  • 24": 14.5W / 2000
  • 24": 25.8W / 3500
  • 36": 26.5W / 3750
  • 48": 18.5W / 3000
  • 48 ": 31.8W / 5000
  • 96 ": 37W / 6000
  • 96": 63.7W / 10000

• Voltage: 120-277V
• Color Temperature: 4000K
• CRI: 80
• Lens: Wide Diffuse
• Distribution: General
• Driver: Generic 0-10V, dims to 10%
• Performance package: Standard efficiency
• Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel
• Fixture may be ceiling or wall mounted

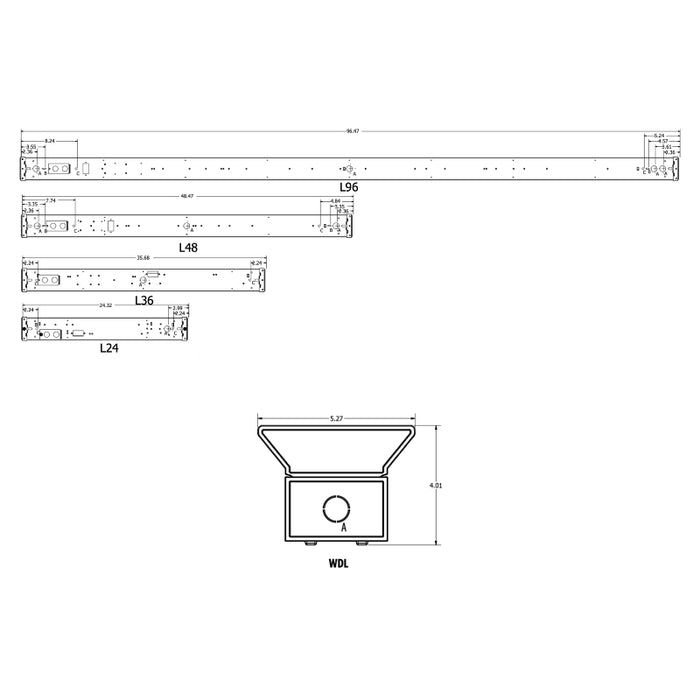

Dimensions

• Length: 24.32", 35.68", 48.47", 96.47"
• Width: 5.27"

• Depth: 4.01"
• Product Weight: 4 lbs, 5 lbs, 7.5 lbs, 14 lbs

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings:

• CSA certified to US and Canadian safety standards
• DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product
