by Lithonia

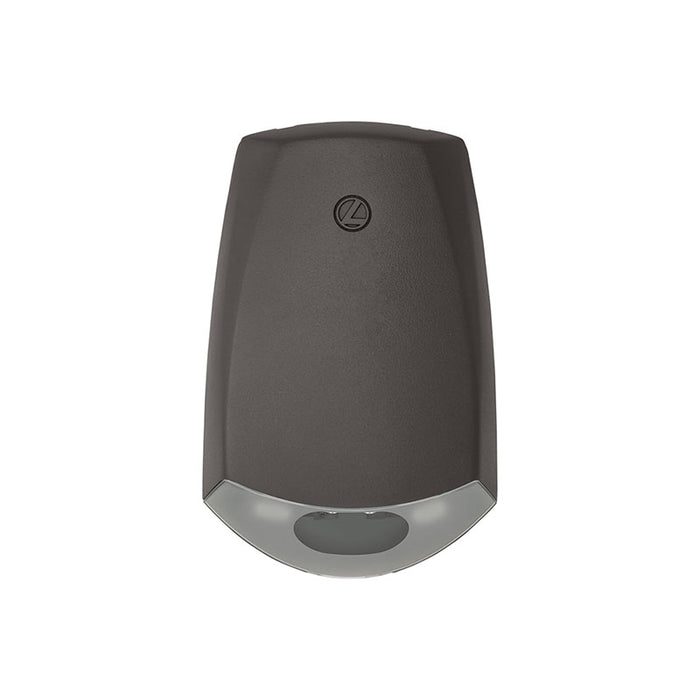

Lithonia AFF OEL Signature LED Emergency Unit, Self-diagnostics remote test, 120-347V, Cold Weather
SKU AFF OEL DDBTXD UVOLT LTP SDRT WT CW
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$635.00
$635.00
-
$635.00
Current price
$635.00
Availability:
Out of stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The AFF Series from the Lithonia Lighting Signature Family is a rugged construction emergency light, offering quick installation and premium standard features such as die cast aluminum construction, a scratch resistant polyester powder coat finish and wide-throw light distribution.
Features
- Housing Color: Dark Bronze
- Wattage: 2.5W
- Voltage: 120-347V
- Color Temperature: 4000K
- CRI: 70
- Unit Type: Normally-OFF with internal battery
- Battery Type: Lithium Iron Phosphate
- Optics: Wide Throw
- Cold Weather
- Wall mount: typically meets 7.5' to 14' mounting height from ground or floor. Power supplied by either mounting directly to a 4" square or 4" octagon j-box (wall mount) and accepts rigid or flex conduit
- Self-Diagnostics: Continuously monitors AC functionality. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green flashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics
- Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor

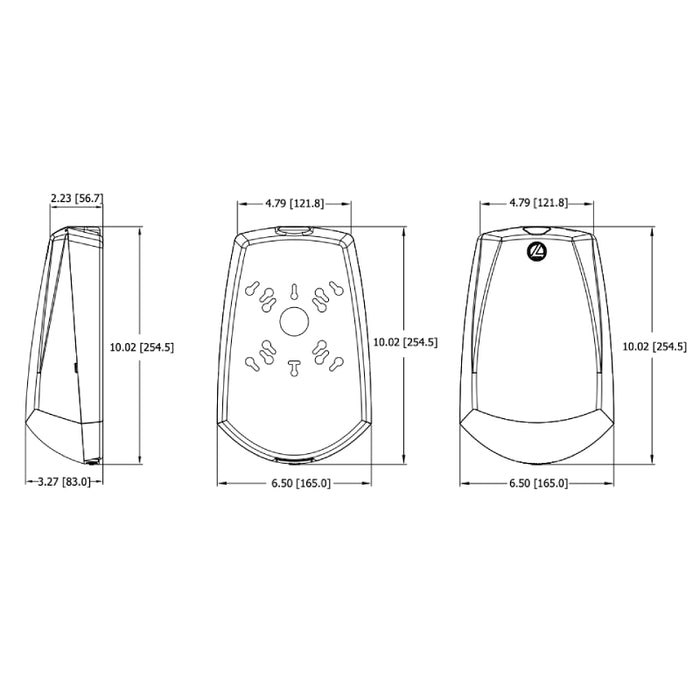

Dimensions
- Width: 6.5"
- Height: 10.02"
- Depth: 3.27"
- Weight: 3.5 lbs
Warranty
- 5-year limited warranty
Document
Labels and Listings
- UL wet location listed standard
- Meets or exceeds all applicable requirements for UL 924
- NFPA 101, NFPA 70, NOM
