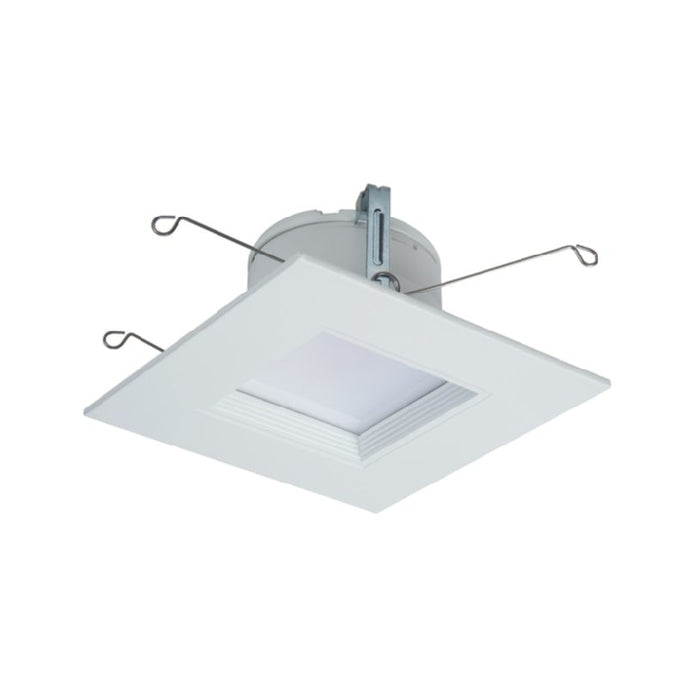

Halo RSQ5 5" LED Square Recessed Baffle Trim, 5CCT & 2 Lumens Selectable, 120V, 90 CRI, Matte White

The RSQ Series is the perfect lighting solution for low to medium-height ceilings. A shallow square lens and rotatable baffle trim make installation and alignment a breeze. With the Lumen Select Switch and flicker-free 5% dimming, you can easily customize the lighting levels to fit your needs.

Features

• Housing sold separately
• Title 20 & Title 24 compliant, can be shipped to California locations
• Recessed Size: 5"
• Finish: Matte White
• Wattage: 6.3W/9.8W
• Voltage: 120V
• CCT Selectable: 2700K/3000K/3500K/4000K/5000K/Dim-to-Warm
• Lumens: 600/900
• CRI: 90
• Dims to 5% (phase cut LE/TE) with compatible dimmers
• Lens & Trim: Shallow square diffuse lens and rotatable baffle trim make installation and alignment easy
• Includes preinstalled Push-N-Twist universal installation clips; orange LED Quick Connect and E26 medium socket adapter
• Integral gasket meets AIR-TITE and code compliance for additional energy savings

Compatible Housings (Sold Separately):

• New Construction - H550ICAT , E550ICAT , H5ICAT , H5ICATNB , H550FR2ICAT
• Remodel - H550RICAT , E550RICAT , H5RICAT , E5RICAT

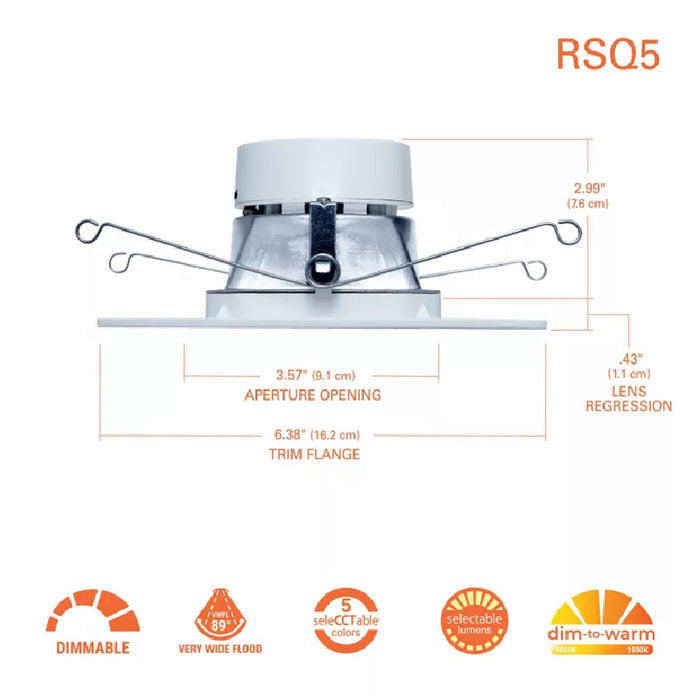

Dimensions

• Width: 6.38"
• Height: 2.99"

Estimated Life

• 50,000 hrs of maintenance-free operation in damp or wet locations

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Baffle Trim Overlays: RSQ5TRM (Sold Separately)
