Halo PR6 6" LED Retrofit Kit with Junction Box and Driver, Field Selectable 1000-2000 Lumens

With field-selectable lumens and color temperatures; and interchangeable medium and wide lenses; the PR6 series offers the ultimate in flexibility in making final settings on site.

Compatible Module (Sold Separately):

• PR6M12

Features

• LED module sold separately.
• Use with PR6M12 LED modules only
• Recessed Size: 6"

• Voltage: 120-277V
• Lumens: Field Selectable 1000, 1500 and 2000 Lumens (Nominal)
• 0-10V analog , 1%-100% dimming

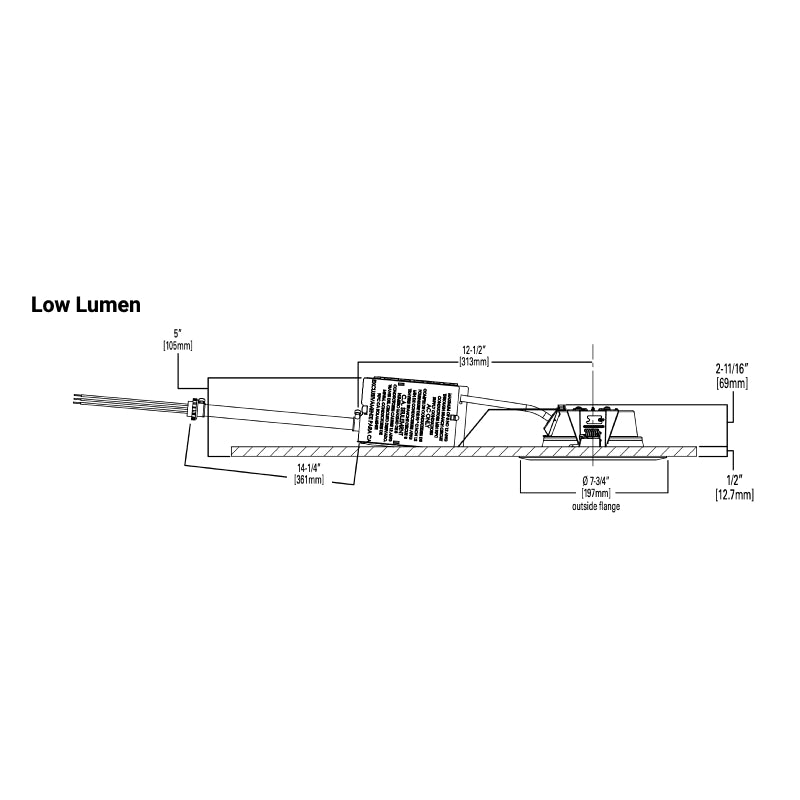

Dimensions

• Width: 7.75"

• Height: 2.69"

Estimated Life

• Passive cooling achieves L70 at 50,000 hours

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed/Classified; wet location listed in protected ceilings

• IP20 - Above finished ceiling; IP64 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• Field selectable 1000/1500/2000lm and 2000/3000/4000lm models may be used for California Title 24 non-residential compliance, as a dimmable LED luminaire
• Fixed output 1000lm and 1500lm 90 CRI, Type IC models may also be used for California Title 24 Residential compliance
• ENERGY STAR® certified, see Certified Light Fixtures database
