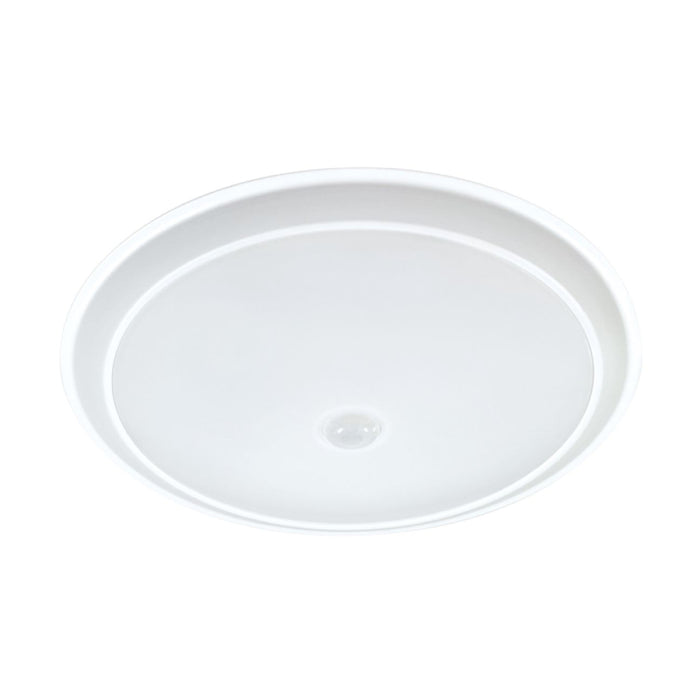

Halo HLSMS912 9" Round LED Low Profile Surface Mount with Motion Senson

The HLS Series is an LED low profile surface mount fixture designed to install from below the ceiling into most 3-1/2" and 4" junction boxes.

Features

• Finish: Matte White Flange

• Shape: Round
• Motion Sensor option
• Wattage: 17.5W
• Voltage: 120V
• Color Temperature: 3000K, 4000K
• Lumen: 1200
• CRI: 90
• LE & TE phase cut 10% dimming
• Below the ceiling installation, no clips or plates needed
• Installs in many 3-1/2" and 4" ceiling junction and pancake boxes

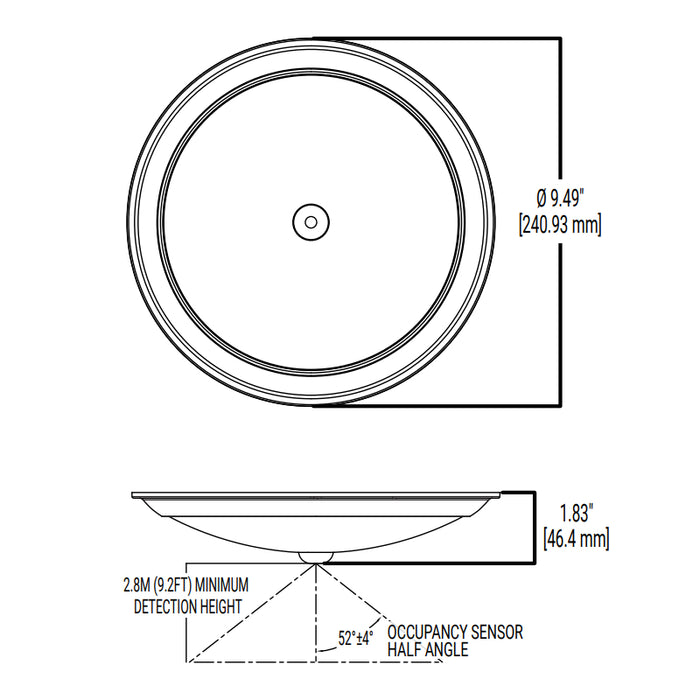

Dimensions

• Width: 9.49"

• Height: 1.83"

Estimated Life

• L70 at 50,000 hours

Warranty

• Five-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Certified for US and Canada
• Wet Location listed (except for 9-inch motion sensor version)
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• EMI/RFI emissions per FCC 47CFR Part 15B
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
• Can be used for State of California Title 24 high efficacy luminaire compliance
• Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire Compliance
• ENERGY STAR® Certified luminaire - consult ENERGY STAR® Certified Product List
