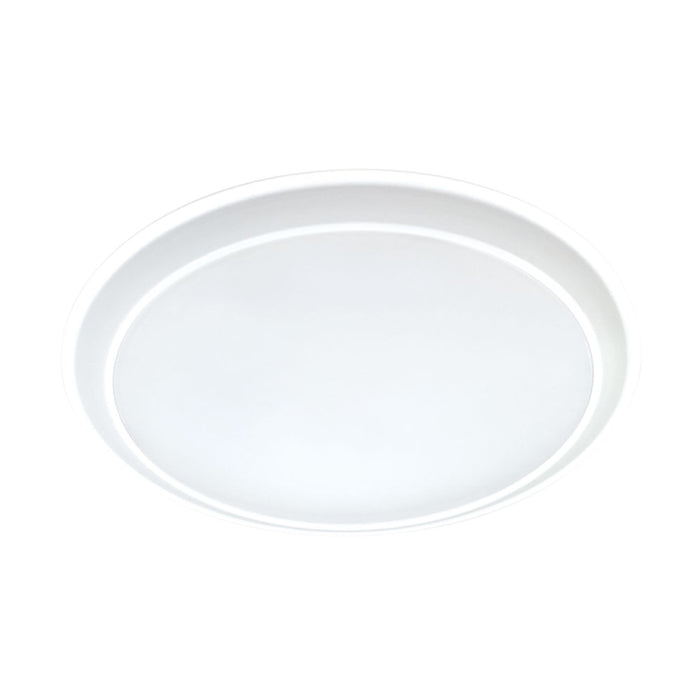

Halo HLS912 9" Round LED Low Profile Surface Mount, CA

The HLS Series is an LED low profile surface mount fixture designed to install from below the ceiling into most 3-1/2" and 4" junction boxes.

Features

• California product
• Finish: Matte White Flange

• Shape: Round
• Wattage: 17.5W
• Voltage: 120V
• Color Temperature: 3000K, 4000K
• Lumen: 1200
• CRI: 90
• LE & TE phase cut 10% dimming
• Below the ceiling installation, no clips or plates needed
• Installs in many 3-1/2" and 4" ceiling junction and pancake boxes

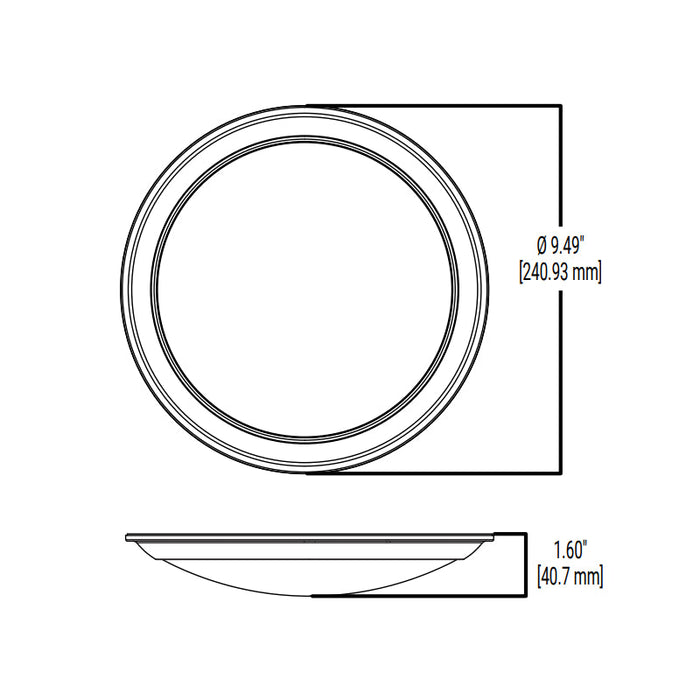

Dimensions

• Width: 9.49"

• Height: 1.6"

Estimated Life

• L70 at 50,000 hours

Warranty

• Five-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Certified for US and Canada
• Wet Location listed (except for 9-inch motion sensor version)
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• EMI/RFI emissions per FCC 47CFR Part 15B
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
• Can be used for State of California Title 24 high efficacy luminaire compliance
• Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire Compliance
• ENERGY STAR® Certified luminaire - consult ENERGY STAR® Certified Product List
