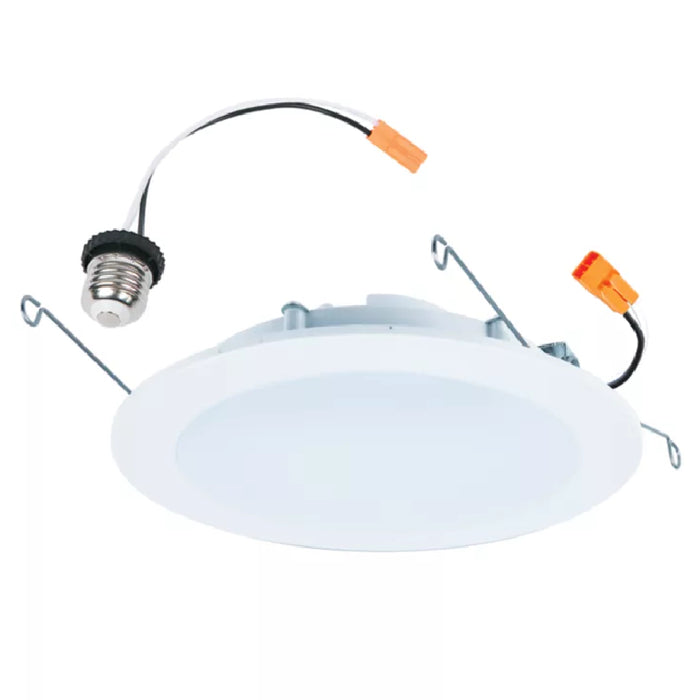

Halo HLBT 6" Slim LED Trim, 5CCT Selectable

The HLBT Slim LED Trims are designed to install into new construction or remodel recessed housings. They match the look and feel of our best-selling canless fixtures, the HLB, and allow installers to offer consistent lighting across multiple installation methods. HLBT fixtures are 5-color field-seleCCTable and offer flicker-free 5% dimming making for easy lighting customization.

Features

• Recessed Size: 6"
• Finish: Matte White
• Wattage: 9.7-10W

• Voltage: 120V
• Color Temperature: 2700K/3000K/3500K/4000K/5000K Selectable
• Lumens: 965
• CRI: 90+
• 120V 60Hz, LE & TE phase cut 100–5% dimming
• Includes preinstalled mounting hardware, orange LED Quick Connect, and E26 medium socket adapter
• Match the slim look of HALO HLB wafer-style downlights in existing recessed housings

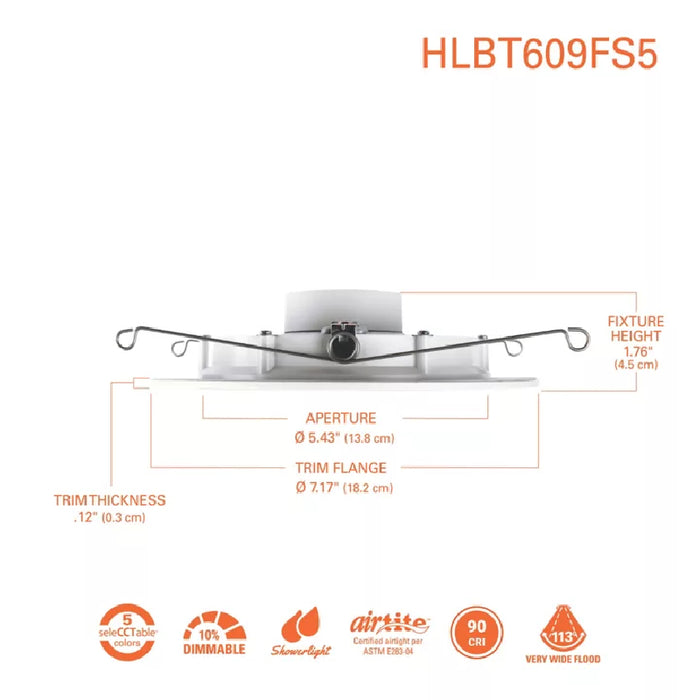

Dimensions

• Width: 7.17"
• Height: 1.76"
• Aperture: 5.43"

Estimated Life

• Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC applications

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus certified for US and Canada
• Wet location-listed
• Airtight per ASTM-E283
• EMI/RFI emissions per FCC 47CFR Part 15 Class B consumer limits
• Contains no mercury or lead and RoHS compliant1
• ENERGY STAR® certified, reference Certified Light Fixtures database
• Certified to State of California Title 20, State regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
• Can be used for State of California Title 24 high efficacy LED compliance under JA81 , reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
