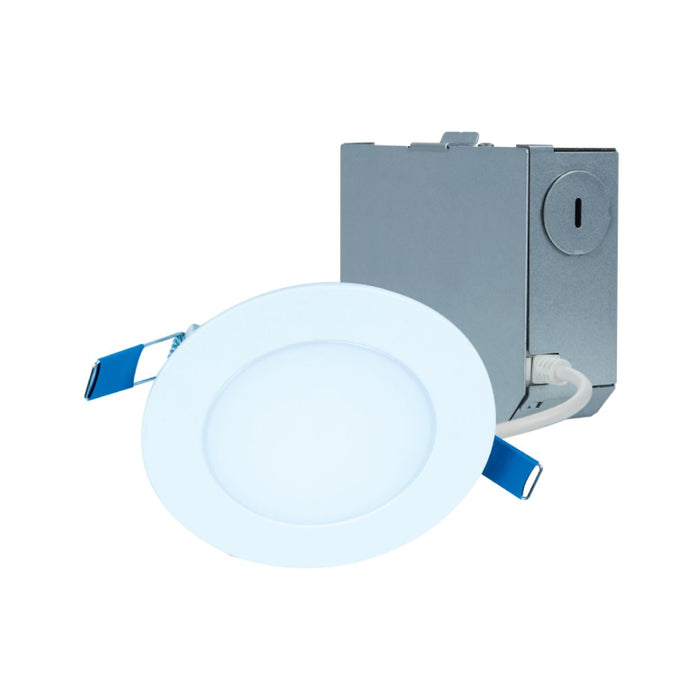

Halo HLBE4 4" Ultra-Slim LED Downlight, New Construction/Remodel Integrated LED Recessed Light Kit

The HALO HLBE is a 4" and 6" ultra-thin canless downlight sold exclusively in contractor-friendly bulk packs. HLBE is ideal for new construction and remodel jobs. It's perfect for tight plenum spaces and saves you time and money on installation.

Features

• Recessed Size: 4"
• Finish: Matte White Flange
• Wattage: 10W
• Voltage: 120V
• Color Temperature: 3000K
• Lumen: 600
• CRI: 90
• LE & TE phase cut 10% dimming
• Polymer trim with smooth lens
• Ultra-slim 1/2" thin design and installs in 2x2 plenum space

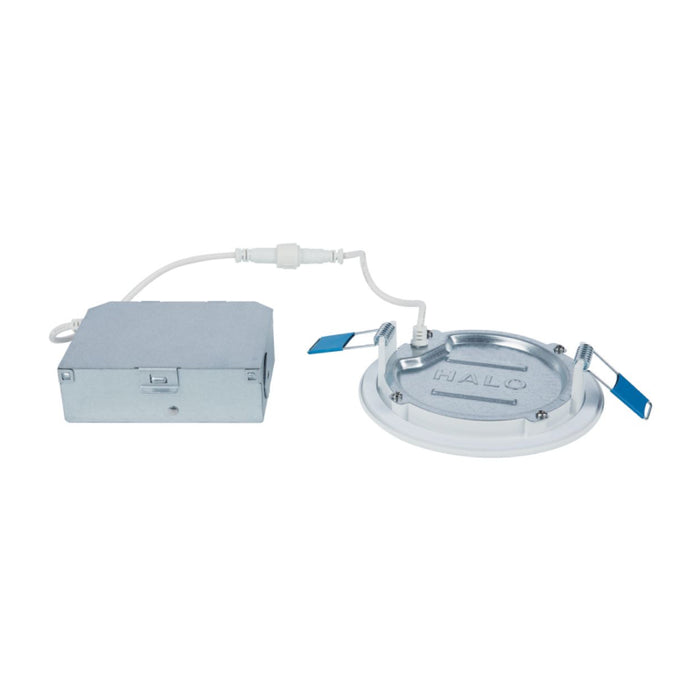

• Canless installation, no additional housing or junction box required

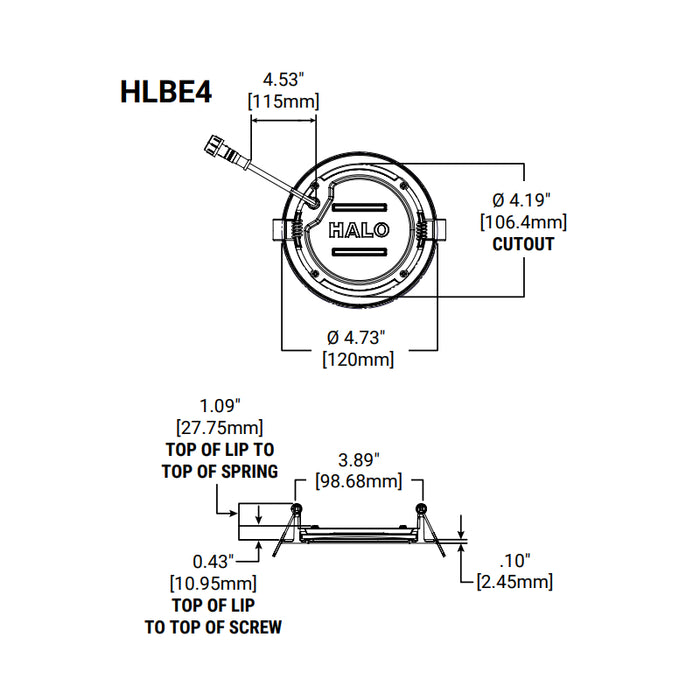

Dimensions

• Width: 4.73"

• Height: 1.09"

Warranty

• Five-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Mounting Frame: HL4RSMF (Sold Separately)

Labels and Listings

• UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
• Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013

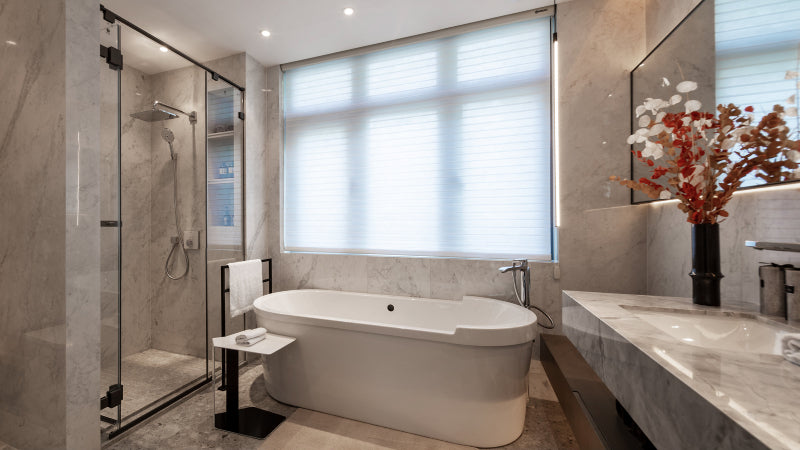

• Wet location listed and IP44 ingress protection
• Airtight per ASTM-E283-04
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
• ENERGY STAR® certified, reference “Certified Light Fixtures” database
