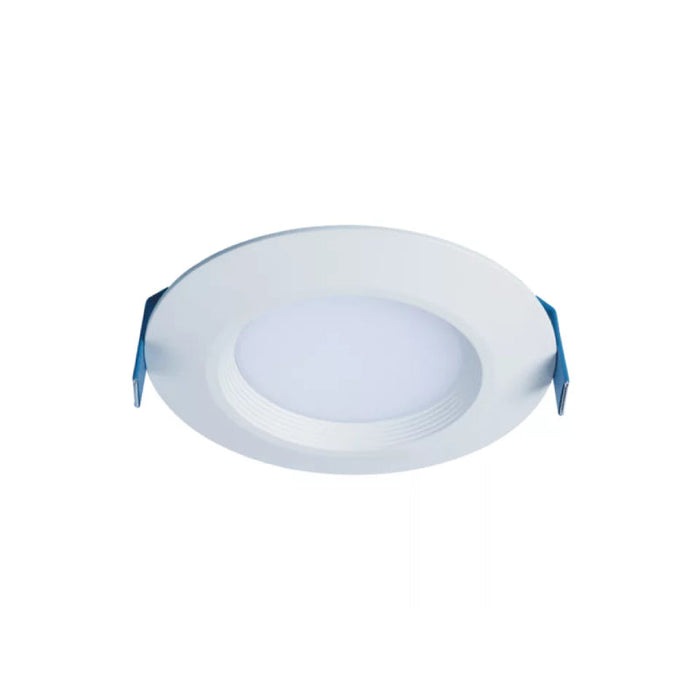

Halo HLBC4 4" Ultra-Slim Regressed LED Downlight, Selectable CCT & Lumens, Dual Install,Warm Dim, CA Compliant

The HALO HLBE is a 4" and 6" ultra-thin canless downlight sold exclusively in contractor-friendly bulk packs. HLBE is ideal for new construction and remodel jobs. It's perfect for tight plenum spaces and saves you time and money on installation.

Compatible Housing (Sold Separately):

• H45ICAT
• H450FR2ICAT

Features

• Recessed Size: 4"
• Finish: Matte White Flange
• Wattage: 9W / 13W
• Voltage: 120V
• Color Temperature: 2700K/3000K/3500K/4000K/5000K (Selectable)
• Lumen: 600/900 (Selectable)
• CRI: 90
• Installation: Can less or retrofit installation
• Dimmable: 120V 60Hz, LE & TE phase cut 5% dimming
• Regressed prismatic lens creates superior glare reduction and visual comfort

• Ultra-slim design, installs in 2x4 plenum space
• State of California compliant

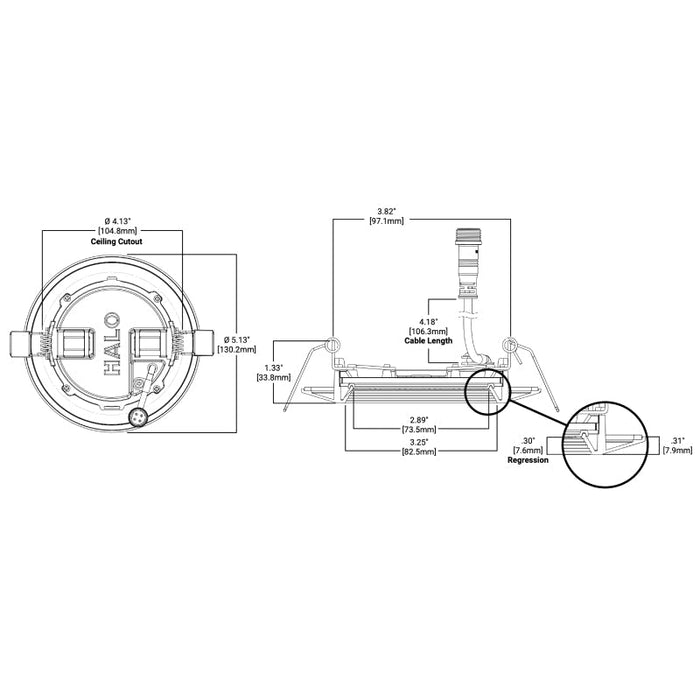

Dimensions

• Diameter: 4.13"

• Height: 1.33"

Warranty

• Five-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Mounting Frame: HL4RSMF (Sold Separately)

Labels and Listings

• UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
• Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
• Wet location listed and IP44 ingress protection
• Airtight per ASTM-E283-04
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
• ENERGY STAR® certified, reference “Certified Light Fixtures” database
