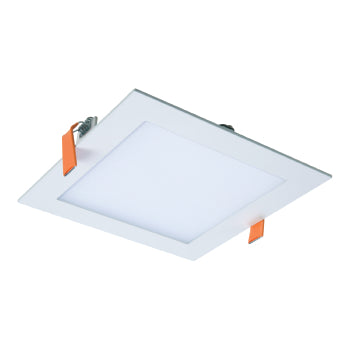

Halo HLB6S 6" LED Square Lens Downlight with Remote Driver / Junction Box, CCT Selectable, 120V

The HLB6S is a 6-inch ultra-thin LED square lens downlight with remote driver / junction box suitable for new construction and remodel applications. Field selectable color temperature and high color rendering provide excellent color performance.

Features

• Title 24 compliant, can be shipped to California locations
• Size: 6"

• Finish: Matte white flange

• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable

• Watt: 12W LED
• Lumen: 900
• CRI: 90
• Voltage: 120V
• Direct mount - does not require recessed housing or junction box
• Driver: LE & TE phase cut 5% dimming

Dimensions

• Width: 6.7"
• Height: 0.12"

Estimated Life

• Achieves L70 at 50,000 hours in IC and non-IC applications

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Frame in Kit: HL6RSMF (Sold Separately)

Labels and Listings

• cULus certified type IC suitable for direct contact with air permeable insulation
• Wet location listed and IP44 ingress protection
• Airtight per ASTM-E283-04

• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
• ENERGY STAR® certified, reference “Certified Light Fixtures” database
