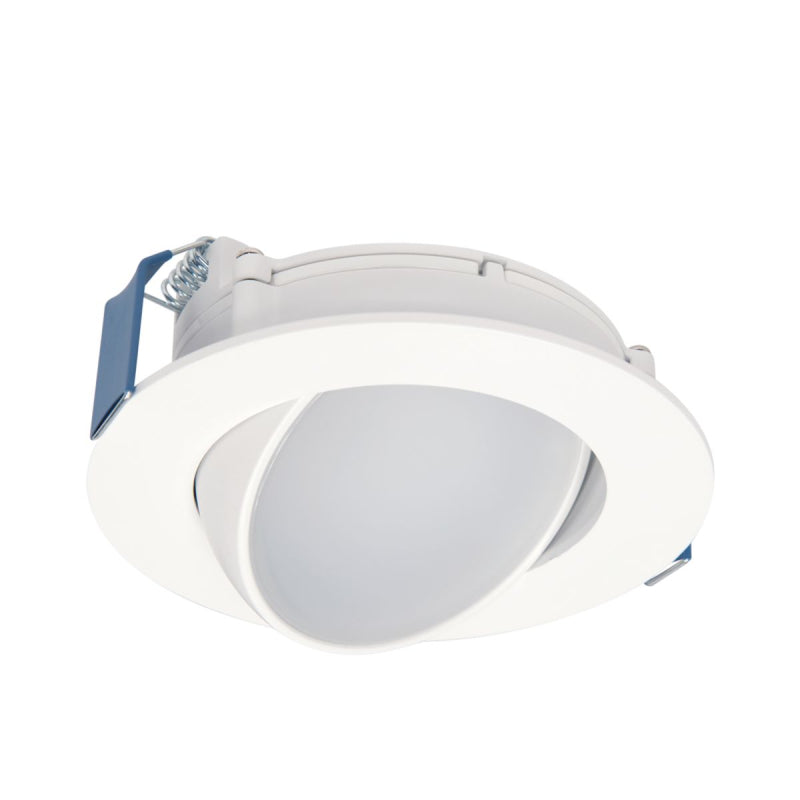

Halo HLA4 4" LED Adjustable Canless Direct Mount with Remote Driver/Junction Box

The Halo RA4 SeleCCTable LED Adjustable Gimbal is a complete LED Baffle-Trim Module for 4-Inch aperture recessed downlights. It is suitable for new construction, remodel and retrofit installation.

Features

• Title 24 compliant, can be shipped to California locations
• Size: 4"

• Finish: Matte white flange

• Wattage: 10W LED
• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable

• Lumen: 600 lm
• CRI: 90
• Use with 4" housings with screwbase adapter included
• Dimmable with 120V dimmers
• Distribution: 40° flood, 80° very wide flood

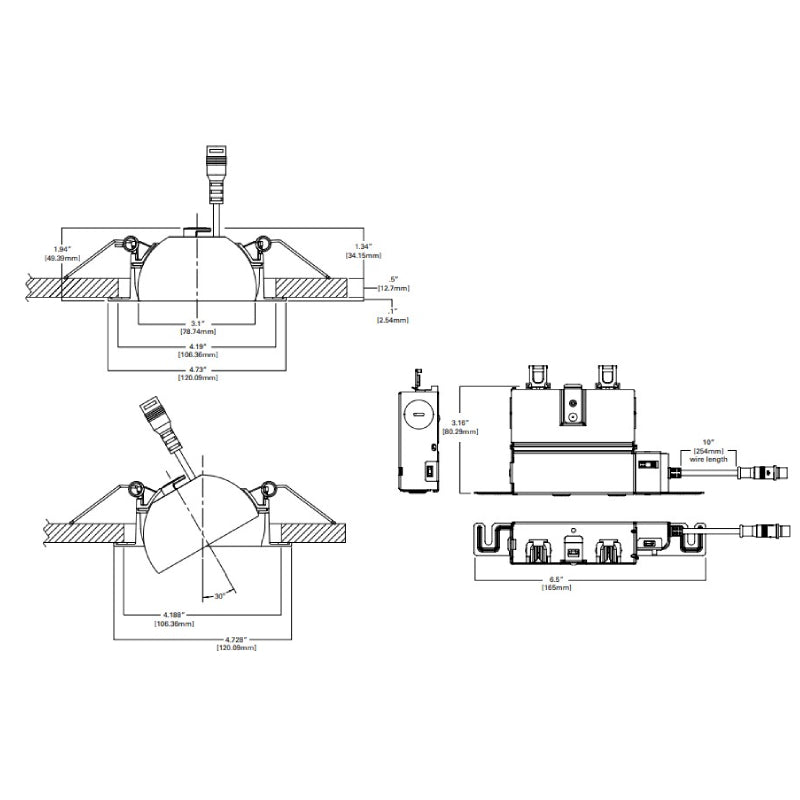

Dimensions

• Recessed Size: 4"

• Width: 4.73"
• Height: 1.34"

Estimated Life

• L70 at 50,000 hours in IC and non-IC applications


Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Frame in Kit:  HL4RSMF (Sold Separately)

Labels and Listings

• cULus certified type IC suitable for direct contact with air permeable insulation
• Wet location listed and IP44 ingress protection
• Airtight per ASTM-E283-04
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
• ENERGY STAR® certified, reference “Certified Light Fixtures” database
