Halo Commercial HC610D010 6" New Construction Downlight Housing, 1000 Lumen

The HC6 recessed 6" downlight is offered with narrow, medium, or wide beam reflectors or wall wash reflector.

Compatible Reflector & Module (Sold Separately):

• HM60525835
• 61WDBB
• 61NDC

Features

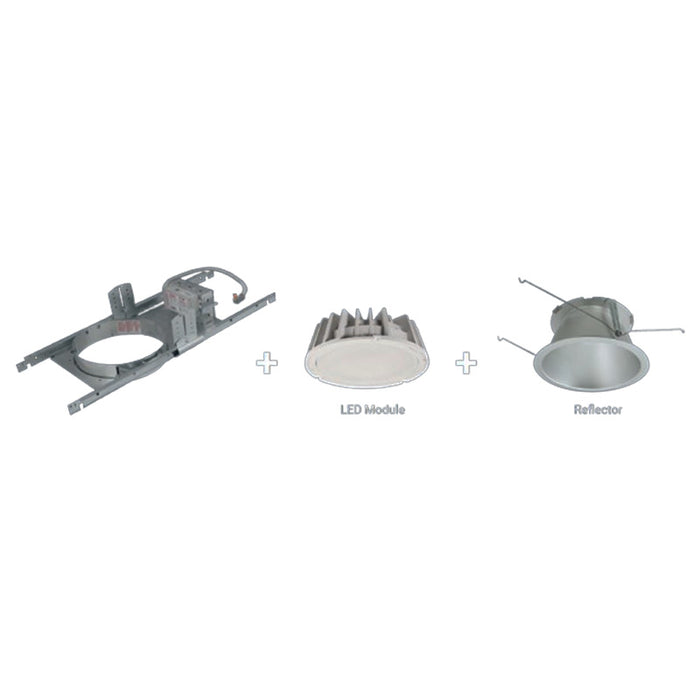

• Housing Only. A complete luminaire consists of a housing frame, LED module, and reflector (ordered separately)
• Wattage: 10W
• Voltage: 120-277V
• Color Temperature: Depends on LED Module Selection
• Lumens: 1000 lm
• Dimming: 0-10V 1%-100% dimming at 120-277V on 0-10V controls

Dimensions

• Recessed Size: 6"

• Length: 26.4"
• Width: 8.6"
• Height: 3.42"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
• Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations.
• IP20 - Above finished ceiling; IP65 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• 500, 750, 1,000, 1,500 and 2,000 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
• May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
• ENERGY STAR® certified, reference certified light fixtures database
