Halo Commercial HC430D010 4" New Construction Downlight Housing, 3000 Lumen

HC4 4" New Construction and Remodel Housing

Compatible Reflector & Module (Sold Separately):

• 41WDBB
• 41NDC
• 42R
• HM4

Features

• Housing Only. A complete luminaire consists of a housing frame, LED module, and reflector (ordered separately)
• Voltage: 120-277V
• Color Temperature: Depends on LED Module Selection
• Lumens: 3000
• Dimming: 0-10V 1%-100% dimming at 120-277V on 0-10V controls
• Boat shaped galvanized steel plaster frame with adjustable plaster lip accommodates1/2" to 1-1/2" thick ceilings
• May be installed in new construction; or from below the finished (non-accessible) ceiling in remodeling.
• Provided with (2) old work remodel clips to secure the frame to the ceiling

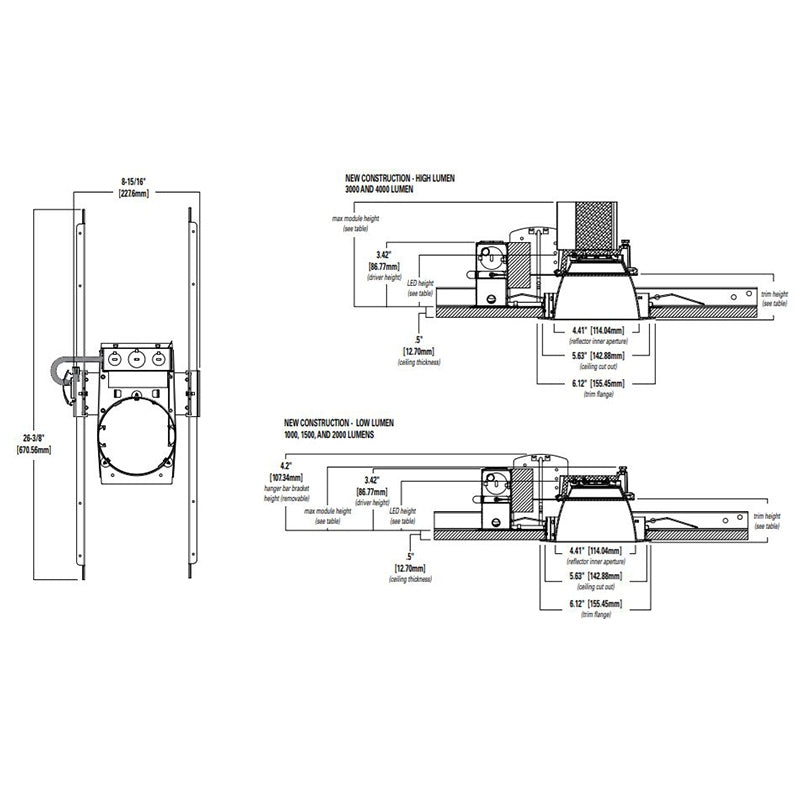

Dimensions

• Recessed Size: 4"

• Length: 26.38"
• Width: 8.94"
• Height: 3.42"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
• Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations.
• IP20 - Above finished ceiling; IP64 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• 1,000 and 1,500 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
• May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
• ENERGY STAR® certified, reference certified light fixtures database
