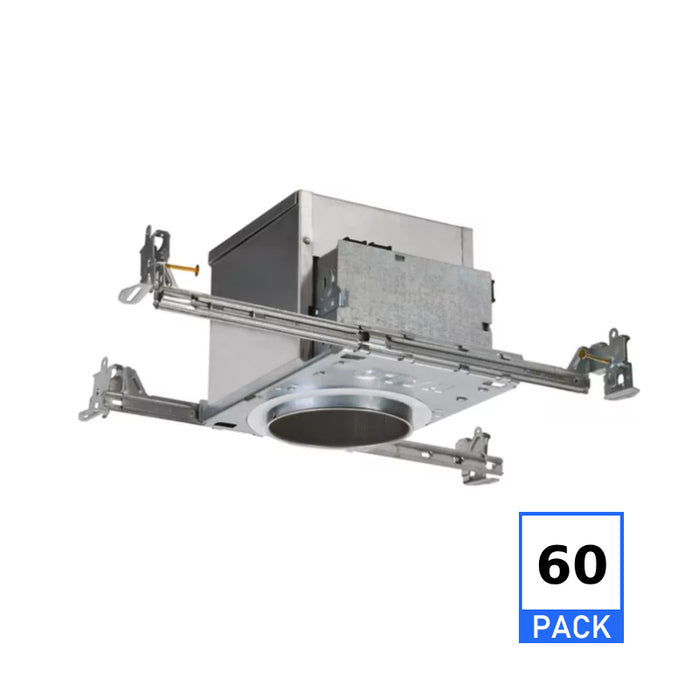

Halo H99ICAT 4" IC AIR-TITE New Construction Housing, 60-Pack

The H99ICAT is a small aperture IC AIR-TITE™ housing for accent and task lighting. It is designed for use in insulated ceilings where it will be in direct contact with insulation.

Features

• Trim and LED module sold separately
• Recessed Size: 4"
• Socket: Fixed position porcelain socket
• Type: IC Rated New Construction
• Voltage: 120V
• Got Nail bar hangers
• Pass-N-Thru tool-less shortening of bar hangers
• Slide-N-Side wire traps
• Quick Connect wiring connectors included in junction box
• AIR-TITE
• Thermally protected
• Die-formed housing and plaster frame
• Housing may be removed from plaster frame for junction box access

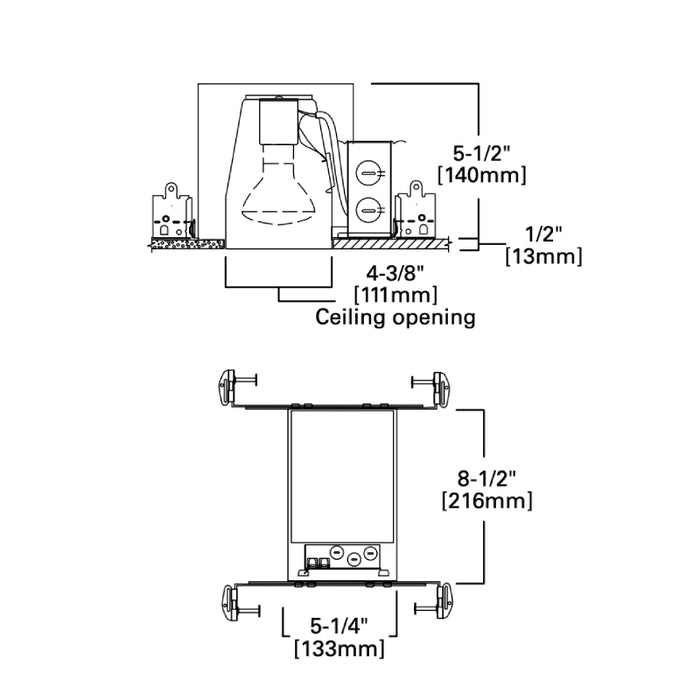

Dimensions

• Length: 8.5"
• Width: 5.25"
• Height: 5.5"

• Ceiling opening: 4.38"

Documents

• Spec Sheet

Labels and Listings

• cULus Damp Location Listed
• cULus Listed for Wet Location, covered ceiling, with select trims
• RoHS compliant
• Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
