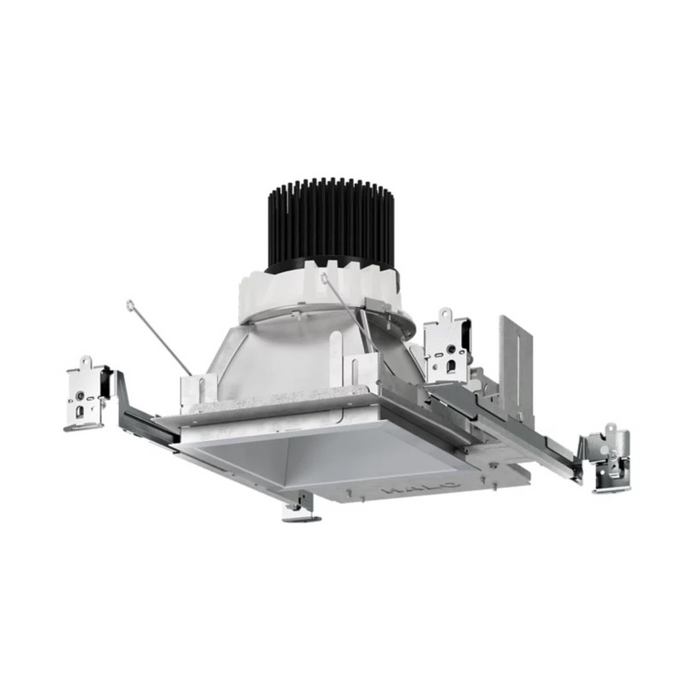

Halo Commercial HCSQ6 6" Square New Construction/Remodel Housing Frame, 2000 Lumens, 120-277V

Compatible Fixture (Sold Separately):

• HM60525
• 61SQ

Features

• LED Module and Reflector sold separately
• Complete installation = Housing Frame + LED Module + Reflector
• Construction: Boat shaped galvanized steel plaster frame with square adjustable plaster lip
• Wattage: 20.6W
• Voltage: 120-277V

• Lumens: 2000
• 1%-100% dimming with 0-10V dimming
• Accommodates 1/2" to 1-1/2" thick ceilings
• Mounting frame converts to remodel that installs from below the ceiling
• Provided with two remodel clips to secure the frame to the ceiling

Dimensions

• Length: 10.5"
• Width: 12.98"
• Height: 4.46"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
• IP20 - Above finished ceiling; IP65 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant

• May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
• ENERGY STAR® certified models available, reference certified light fixtures database for listed models
