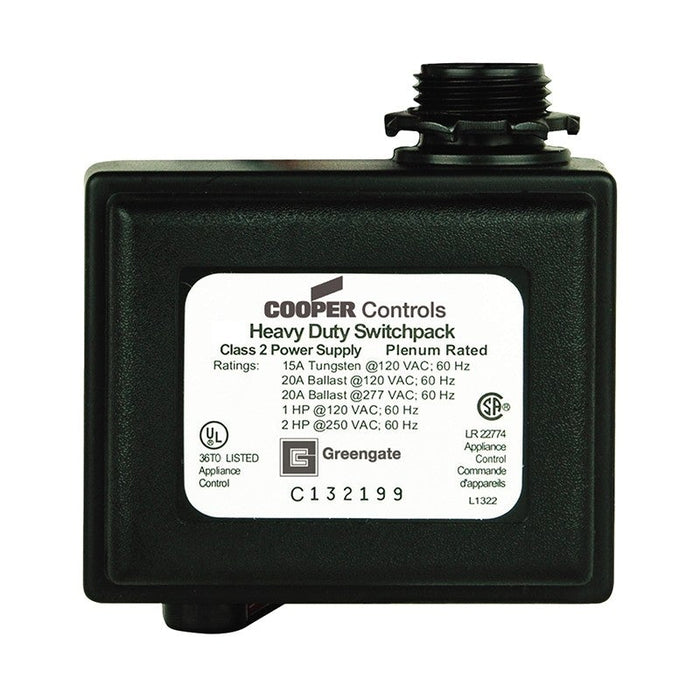

Greengate SP20-MV Heavy Duty 15 VDC Output Switchpack
SKU SP20-MV
Original price
$0.00
-
Original price
$0.00
Original price
$49.00
$49.00
-
$49.00
Current price
$49.00
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Heavy Duty Switchpack provides 15 VDC operating voltage to all low voltage, 15 VDC, occupancy sensors and daylighting controllers. A single switchpack can provide power for up to five sensors. Up to ten switchpacks can be connected to one sensor for control of multiple circuits.
Features:
- Finish: Black
- Voltage: 120/277 VAC, 50/60 Hz
- Output: 15 VDC, 125mA
- Motor Load: 1HP-120V, 2HP-250V
- Mounting: Mounts to the side of a 4" square box via 1/2" knockout
- Replaces separate transformers and relays
- Zero-crossing circuit provides increased durability
- Capable of switching up to 20 amps
- Rated for Ballast, Tungsten and Motor Loads
- Suitable for Plenum use
