Greengate OAC-P-1500-R MicroSet PIR Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1500 sq. ft.
Greengate OAC-P-1500-R MicroSet PIR Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1500 sq. ft.
Roll over image to zoom in
Greengate OAC-P-1500-R MicroSet PIR Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1500 sq. ft.
Greengate OAC-P-1500-R MicroSet PIR Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1500 sq. ft.

Greengate OAC-P-1500-R MicroSet PIR Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1500 sq. ft.

GreengateSKU: OAC-P-1500-R
Price:
$112.50
Stock:
In stock

Description

The MicroSet Passive Infrared Low Voltage Occupancy Sensing Ceiling Sensor is a motion sensing lighting control that is used for energy savings and convenience.

Features

  • Finish: White
  • Technology: Passive Infrared (PIR)
  • Voltage: 10-30 VDC from Greengate Switchpack or Greengate system
  • Coverage: 1500 sq. ft.
  • Field of View: 360°
  • Light sensing level: 0 to 300 foot candles
  • Housing: Durable, injection molded housing
  • Mounting: Mounts directly to ceiling tile, to a 4” square box and round mud ring or to 4” octagon box
  • MicroSet self-adjusting Time Delay and sensitivity
  • Dual Relay control

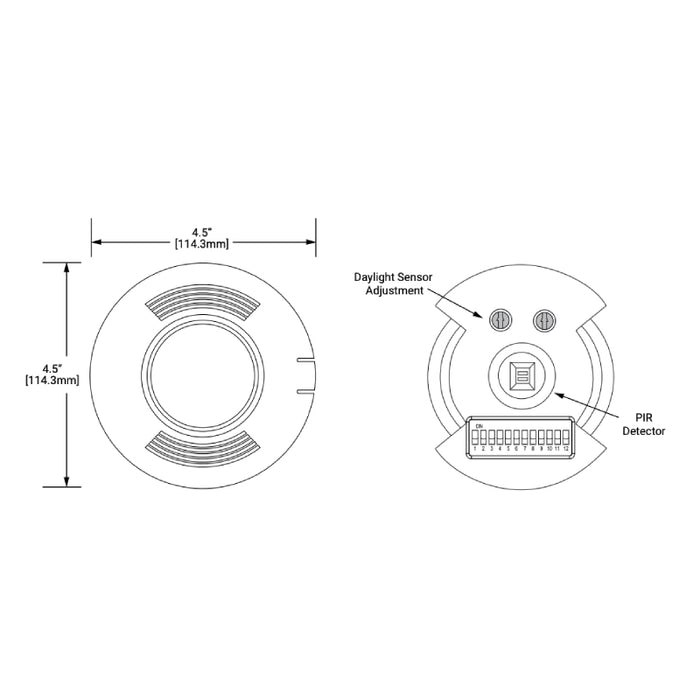

Dimensions

  • Diameter: 4.5"

Warranty

  • 5-Year Warranty

Documents
