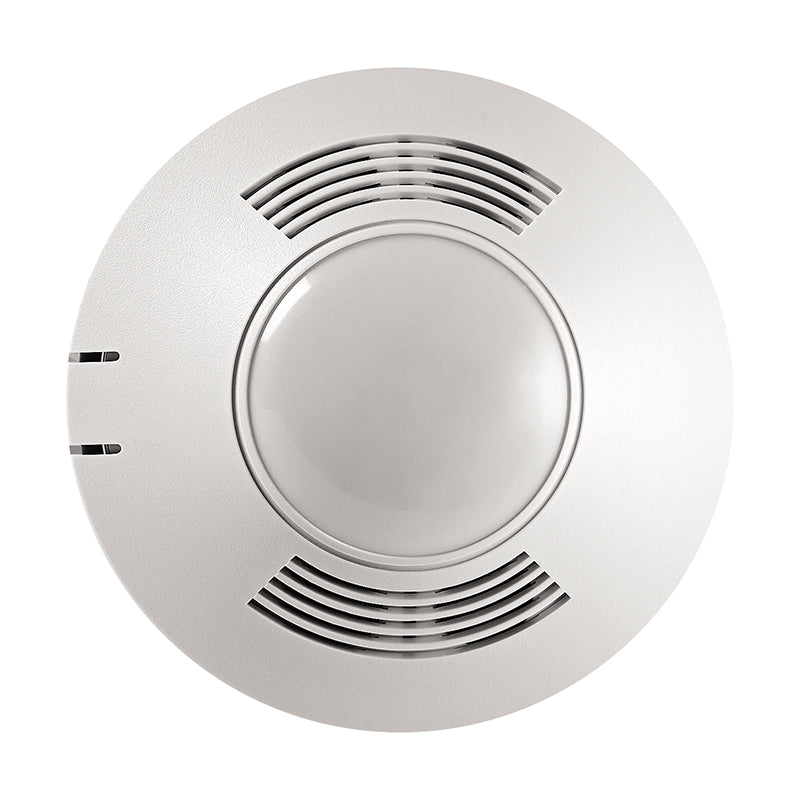

Greengate OAC-DT-1000-R MicroSet Dual Tech Low Voltage Ceiling Sensor w/ BAS Relay & Daylight Sensor, 1000 sq. ft.

Original price $0.00 - Original price $0.00
Original price
$142.50 - $142.50
Current price $142.50
In stock

Estimated Shipping Widget will be displayed here! (with custom color)


The OAC-DT sensors are also equipped with MicroSet self-adjusting technology which provides an adaptive and airflow tolerant technology, making them ideal for spaces which have increased airflow due to higher occupant levels. MicroSet self-adjusting Dual Technology sensors drastically simplify and reduce a contractor’s installation and adjustment time period.


  • Color: White
  • Technology: Passive Infrared (PIR) and Ultrasonic (US)
  • Voltage: 10-30 VDC from Greengate Switchpack or Greengate system
  • Coverage: 1000 sq. ft.
  • Field of View: Two Way (360°)
  • Light Level Sensing: 0 to 300 foot-candles
  • Housing: Durable, injection molded housing
  • Mounting: Mounts directly to ceiling tile, to a 4” square box and round mud ring or to 4” octagon box
  • MicroSet self-adjusting Time Delay and sensitivity
  • Selectable Walk-Through Mode
  • Dual Relay control

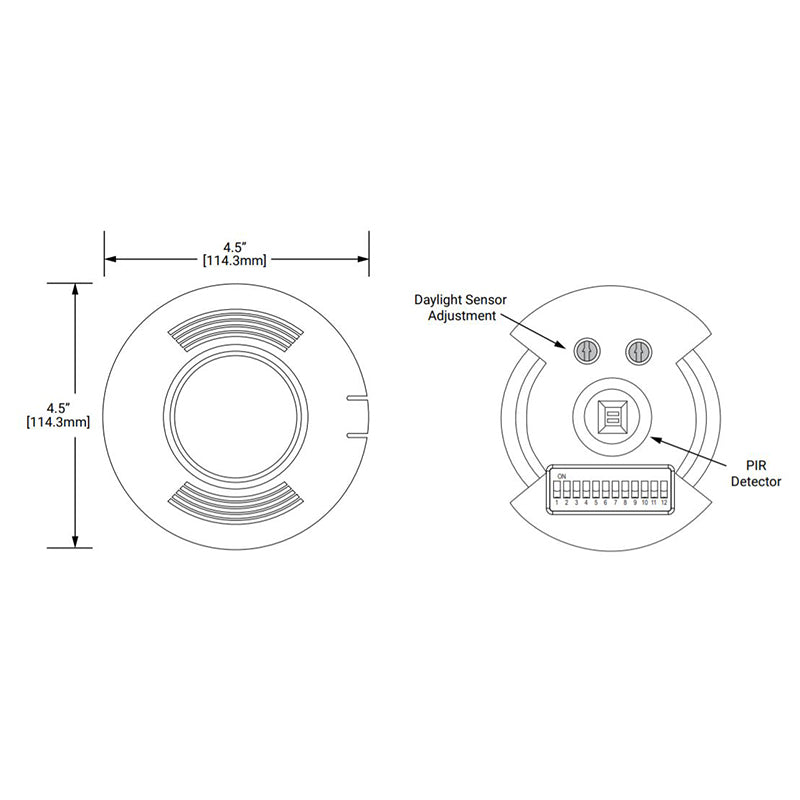

  • Width: 4.5"


  • 5-Year Limited Warranty
